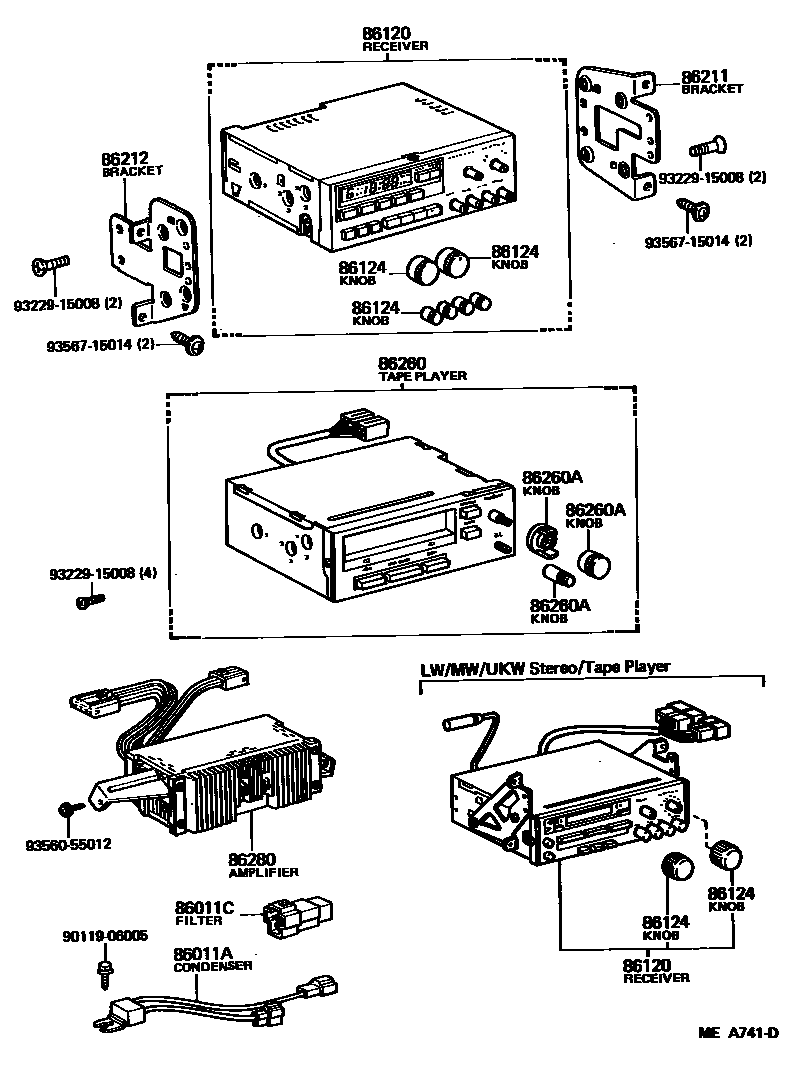

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04036iMA61,RA6#,TA60198108-198308

main90980-04041iAA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,SAA198308-198512

86011CFILTER, NOISE

main90980-05073iAA63,MA61,RA6#,SA63,TA60198308-198512

86120RECEIVER ASSY, RADIO

main86120-14380iMA61; RA60,63..(GT,XT)..(ARL,GEN)198108-198208

(F)AM/FMSTEREO/TAPE PLAYER*ELT

main86120-14381iMA61..ARL,GEN,SAA198308-198512

(F)AM/FMSTEREO/TAPE PLAYER*ELT

main86120-14390iRA63,TA60..GEN;MA61,RA60..EUR,GEN,ME198108-198208

(C)MW/SW 5-BUTTON

main86120-14391iAA63,MA61,RA61,TA60..GEN,SAA198308-198408

(C)MW/SW 5-BUTTON

main86120-14392iAA63,MA61,RA61,TA60..GEN,SAA198408-198512

(C)MW/SW 5-BUTTON

main86120-14400iMA61,RA61,63,TA60..LHD..EUG198108-198207

(H)LW/MW/UKW,MONAURAL,5-BUTTON

main86120-14420iRA63,TA60..GEN;MA61,RA60..EUR,GEN,ME,SAA198108-198308

(A)AM,5-BUTTON

main86120-14421iAA63,MA61,RA61,TA60..GEN,SAA198406-198512

(A)AM,5-BUTTON

main86120-14430iRA60,61,TA60..(LT,ST)..GEN198108-198408

(D)AM/FM MONAURAL,5-BUTTON

main86120-14431iRA61,TA60..ST..GEN198408-198507

(D)AM/FM MONAURAL,5-BUTTON

main86120-14460iRA60..ARL; RA63..GEN;MA61,RA60..SPR,XT198108-198308

(E)AM/FM STEREO,5-BUTTON

main86120-14461iRA61..XT..(GEN,SAA);AA63,MA61,RA65..ARL,GEN,SAA198412-198512

(E)AM/FM STEREO,5-BUTTON

main86120-14610iRA61,63,TA60..LHD..EUG198108-198111

(I)LW/MW/UKWMONA./ARI,5-BUTTON

main86120-14620iMA61,RA61..RHD..EUG198308-198512

(J)LW/MW/UKWSTEREO/TAPE PLAYER

main86120-14630iMA61,RA61,63,TA60..LHD..EUG198108-198207

(K)LW/MW/UKWSTEREO/TAPE PLAYER

main86120-14631iMA61,RA61,63,TA60..LHD..EUG198207-198208

(K)LW/MW/UKWSTEREO/TAPE PLAYER

main86120-16260iMA61,RA61,63,TA60..LHD..EUG198207-198308

(H)LW/MW/UKW,MONAURAL,5-BUTTON

main86120-22390iMA61,RA61..RHD198108-198208

(G)LW/MW/UKW MONAURAL,5-BUTTON

main86120-22400iRA61..SDZ198308-198507

(I)LW/MW/UKWMONA./ARI,5-BUTTON

main86120-30650iMA61..EUR198308-198512

(L)LW/MW/UKW,TAPE PLAYER,*ELT

86124KNOB, RADIO RECEIVER CONTROL

main86128-14200×2iRA61..XT..(GEN,SAA);AA63,MA61,RA65,SA63..ARL,GEN,SAA198308-198412

(E)..(TONE)(BAL)

main86128-14220iAA63,MA61,RA61,TA60..GEN,SAA198308-198512

(C)..(SELECT)

main86128-14240×2iRA61..SDZ198308-198507

(I)LW/MW/UKWMONA./ARI,5-BUTTON

main86128-14260iAA63,RA61,TA60..LHD..EUR198308-198507

(H)(I)..(TONE)

main86128-14300iMA61..EUG198108-198302

(F)..(PRO/TUNE)

main86128-14340iAA63,RA60,61,63..(GT,XT)..(ARL,GEN)198108-198507

(F)..(SW/VOL)

main86128-14420×2iMA61198302-198308

(F)..(BASS)(FAD)

main86128-14440×2iMA61198302-198308

(F)..(BAL)(TRE)

main86128-14500×2iAA63,MA61,RA61,TA60..GEN,SAA198308-198512

(A)(C)(D)..(SW/VOL)(TUNE)

main86128-14520×2iAA63,MA61,RA61,63,TA60..LHD..EUG198108-198512

(H)(I)..(TUNE)(SW/VOL)

main86128-14580×2iRA61..XT..(GEN,SAA);AA63,MA61,RA65..ARL,GEN,SAA198412-198512

(E)..(SW/VOL)(TUNE)

main86128-14600×2iRA61..XT..(GEN,SAA);AA63,MA61,RA65..ARL,GEN,SAA198412-198512

(E)..(TONE)(BAL)

main86128-22030iMA61,RA61..RHD; MA61..LHD..EUG198208-198308

(J)(K)..(VOL)

main86128-22110iMA61,RA61..RHD; MA61..LHD..EUG198208-198308

(J)(K)..(TUNE)

86211BRACKET, RADIO, NO.1

main86211-14140iMA61,RA6#..RHD198108-198308

main86211-14150iAA63,MA61,RA61,TA60..LHD..(GEN,SAA); MA61..LHD..EUR198308-198512

main86211-14170iRA61,63,TA60..LHD..EUG198108-198111

main86211-14200iTA60..EUG198308-198405

86212BRACKET, RADIO, NO.2

main86212-14110iMA61,RA6#..RHD198108-198308

main86212-14120iRA61..SDZ198308-198507

main86212-14140iMA61,RA61,63,TA60..LHD..EUG198111-198308

RECEIVER=(H)

main86212-14170iTA60..EUG198308-198507

86260TAPE PLAYER ASSY

main86260-14210iRA60,61,TA60..(LT,ST)..GEN198108-198507

NON REVERSE,W/3-SPEAKER

main86260-19045iAA63,RA6#,SA63,TA60..ARL,GEN,SAA198308-198507

AUTO REVERSE,W/3-SPEAKER

86260AKNOB, TAPE PLAYER VOLUME

main86128-14300iMA61,RA60;RA63,TA60..GEN198108-198308

AUTO REVERSE..(VOL)

main86128-14360iRA60,61,TA60..(LT,ST)..GEN198108-198507

NON REVERSE..(VOL)

main86128-14380×2iRA60,61,TA60..(LT,ST)..GEN198108-198507

NON REVERSE..(TONE)(BAL)

main86128-14400iAA63,RA6#,SA63,TA60..ARL,GEN,SAA198308-198507

AUTO REVERSE..(TONE)

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-14070iAA63,MA61,RA6#,SA63..RHD..(ARL,GEN)198308-198512

W/3-SPEAKER

main86280-14090iAA63,MA61,RA61,TA60..LHD..(GEN,SAA)198308-198512

W/3-SPEAKER

main86280-14130iMA61..ARL; MA61..SAA198308-198512

AM/FM,W/5-SPEAKER

main86280-19025iMA61,RA61..RHD..EUG198308-198512

LW/MW/UKW,W/5-SPEAKER

main86280-19035iMA61..RHD198112-198308

AM/FM,W/5-SPEAKER

main86280-19045iMA61..ARL,SAA; MA61..LHD..GEN198308-198512

GRAPHIC EQUARIZER,W/5-SPEAKER

main86280-19055iMA61,RA61,63,TA60..LB..LHD..EUG198208-198308

LW/MW/UKW,W/5-SPEAKER

9011906005

main90119-06005

9322915008

main93229-15008

9356055012

main93560-55012

9356715014

main93567-15014

13 parts on this diagram · 2 diagrams in section
