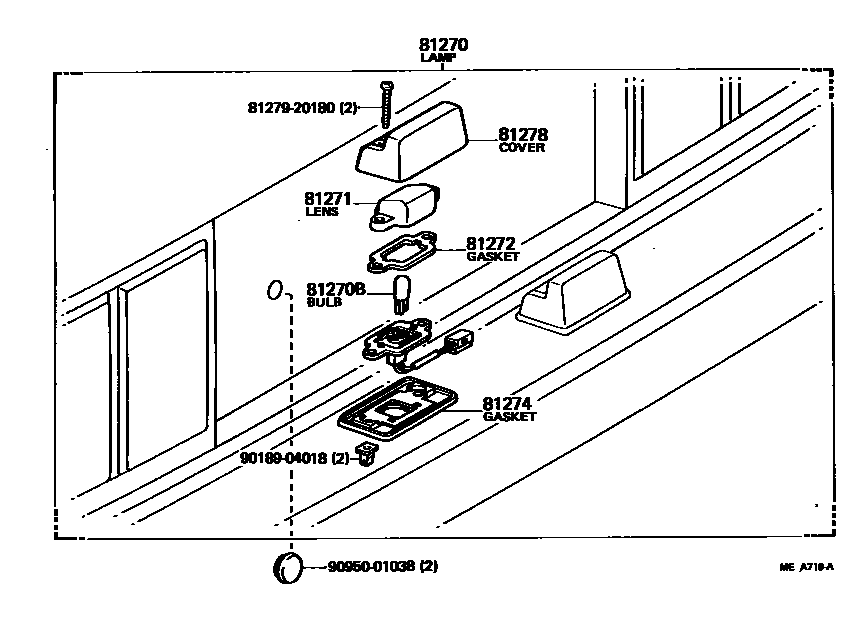

REAR LICENSE PLATE LAMP

0001 1 0002 1 0004 1

81270LAMP ASSY, LICENSE PLATE

main81270-16190×2iRA61..CP..LHD..(GEN,SAA)198308-198507

LOWER BACK PANEL

main81270-19456iRA60..CP..ME198108-198308

RH,LOWER BACK PANEL

main81270-19785iRA60..LB..ME198108-198308

RH,LOWER BACK PANEL

main81270-29545×2iMA61,RA6#,TA60198108-198206

BUMPER

main81270-80006×2iMA61,RA6#,TA60198206-198208

BUMPER

main81270-80008×2iAA63,MA61,RA61,63,TA60..EUR198208-198512

BUMPER

main81690-19076iRA60..CP..ME198108-198308

LH,LOWER BACK PANEL

main81690-19175iRA60..LB..ME198108-198308

LH,LOWER BACK PANEL

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iRA61..CP..LHD..(GEN,SAA)198408-198507

12V 10W

main99132-11100×2iRA60..LB..ME198108-198308

12V 10W,12V 10W,LOWER BACK PANEL

main99132-12050×2iMA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA198108-198512

12V 5W,12V 5W,BUMPER

81271LENS, LICENSE PLATE LAMP

main81271-14190iRA61..LB..LHD..(GEN,SAA)198308-198507

RH,LOWER BACK PANEL

main81271-20210×2iRA61..CP..LHD..(GEN,SAA)198308-198507

LOWER BACK PANEL

main81271-22110×2iMA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA198108-198512

BUMPER

main81691-14040iRA60..LB..ME198108-198308

LH,LOWER BACK PANEL

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20160×2iRA61..LB..LHD..(GEN,SAA)198308-198507

LOWER BACK PANEL

main81272-20210×2iRA61..CP..LHD..(GEN,SAA)198308-198507

LOWER BACK PANEL

main81272-22110×2iMA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA198108-198512

BUMPER

81274GASKET, LICENSE PLATE LAMP BODY

main81274-16020iRA60..CP..ME198108-198308

RH,LOWER BACK PANEL

main81274-22110×2iMA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA198108-198512

BUMPER

main81694-16010iRA60..CP..ME198108-198308

LH,LOWER BACK PANEL

81278COVER, LICENSE PLATE LAMP

main81271-16021iRA60..CP..ME198108-198308

RH,LOWER BACK PANEL

main81276-10101×2iMA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA198108-198512

BUMPER

main81691-16011iRA60..CP..ME198108-198308

LH,LOWER BACK PANEL

8127920180WASHER, SIDE TURN SIGNAL LAMP

main81279-20180

9018904018

main90189-04018

9095001038

main90950-01038

9 parts on this diagram · 3 diagrams in section
