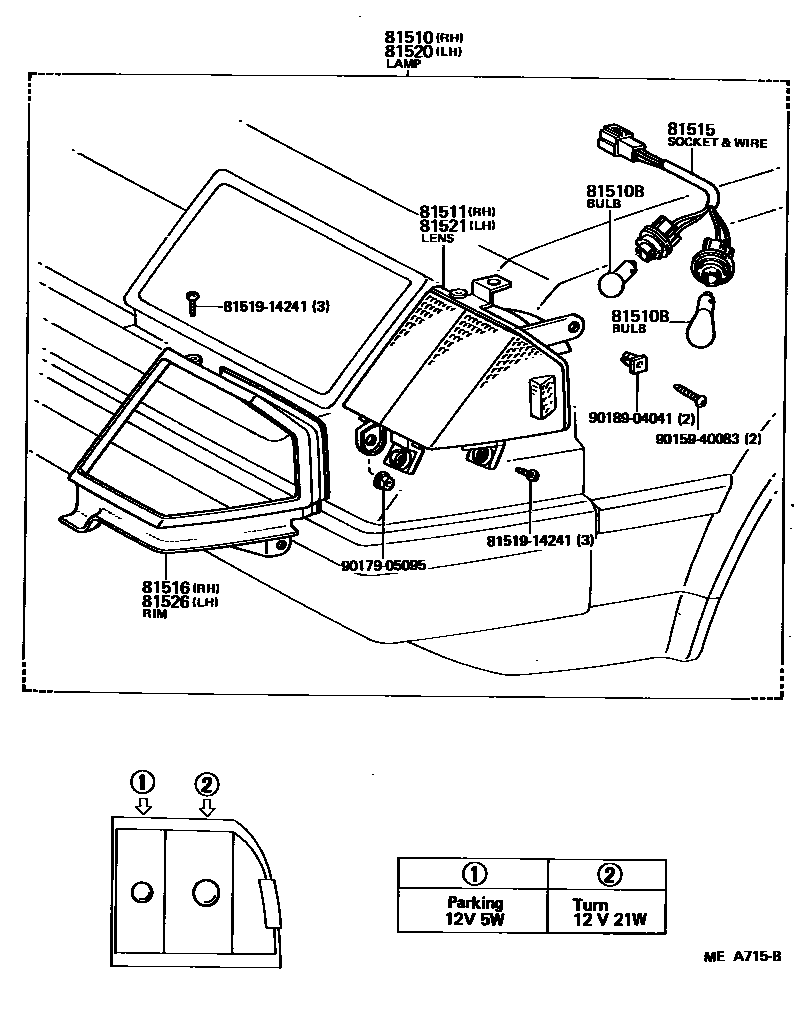

FRONT TURN SIGNAL LAMP

0001 1 0002 1 0003 1 0004 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-14280iMA61198112-198308

main81510-19685iRA6#,TA60198108-198209

main81510-19686iRA6#,TA60198209-198308

main81510-19687iAA63,RA6#,SA63,TA60198308-198507

main81510-80003iMA61..ARL,GEN,SA,SAA198308-198512

main81510-80004iMA61..EUR198308-198512

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iAA63,RA6#,SA63,TA60198108-198507

12V 5W,12V 5W

main99132-11210×2iMA61,RA6#,TA60198108-198308

12V 21W,12V 21W

main99132-11230×2iMA61..ARL,GEN,SA,SAA198308-198512

12V 23W,12V 23W

main99132-12050×2iMA61..ARL,GEN,SA,SAA198308-198512

12V 5W,12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-14250iRA6#,TA60198108-198308

main81511-14252iAA63,RA6#,SA63,TA60198308-198507

main81511-14270iMA61198112-198308

main81511-14271iMA61..ARL,GEN,SA,SAA198308-198512

main81511-14280iMA61..EUR198308-198512

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-14250×2iRA6#,TA60198108-198209

main81515-14251×2iRA6#,TA60198209-198308

main81515-14252×2iAA63,RA6#,SA63,TA60198308-198507

main81515-14270×2iMA61198112-198308

main81515-14271×2iMA61..ARL,GEN,SA,SAA198308-198512

main81515-14280×2iMA61..EUR198308-198512

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-14240iRA6#,TA60198108-198308

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-14280iMA61198112-198308

main81520-19685iRA6#,TA60198108-198209

main81520-19686iRA6#,TA60198209-198308

main81520-19687iAA63,RA6#,SA63,TA60198308-198507

main81520-80003iMA61..ARL,GEN,SA,SAA198308-198512

main81520-80004iMA61..EUR198308-198512

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-14250iRA6#,TA60198108-198308

main81521-14252iAA63,RA6#,SA63,TA60198308-198507

main81521-14270iMA61198112-198308

main81521-14271iMA61..ARL,GEN,SA,SAA198308-198512

main81521-14280iMA61..EUR198308-198512

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81526-14240iRA6#,TA60198108-198308

8151914241BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14241

9015940083

main90159-40083

9017905095

main90179-05095

9018904041

main90189-04041

12 parts on this diagram · 4 diagrams in section
