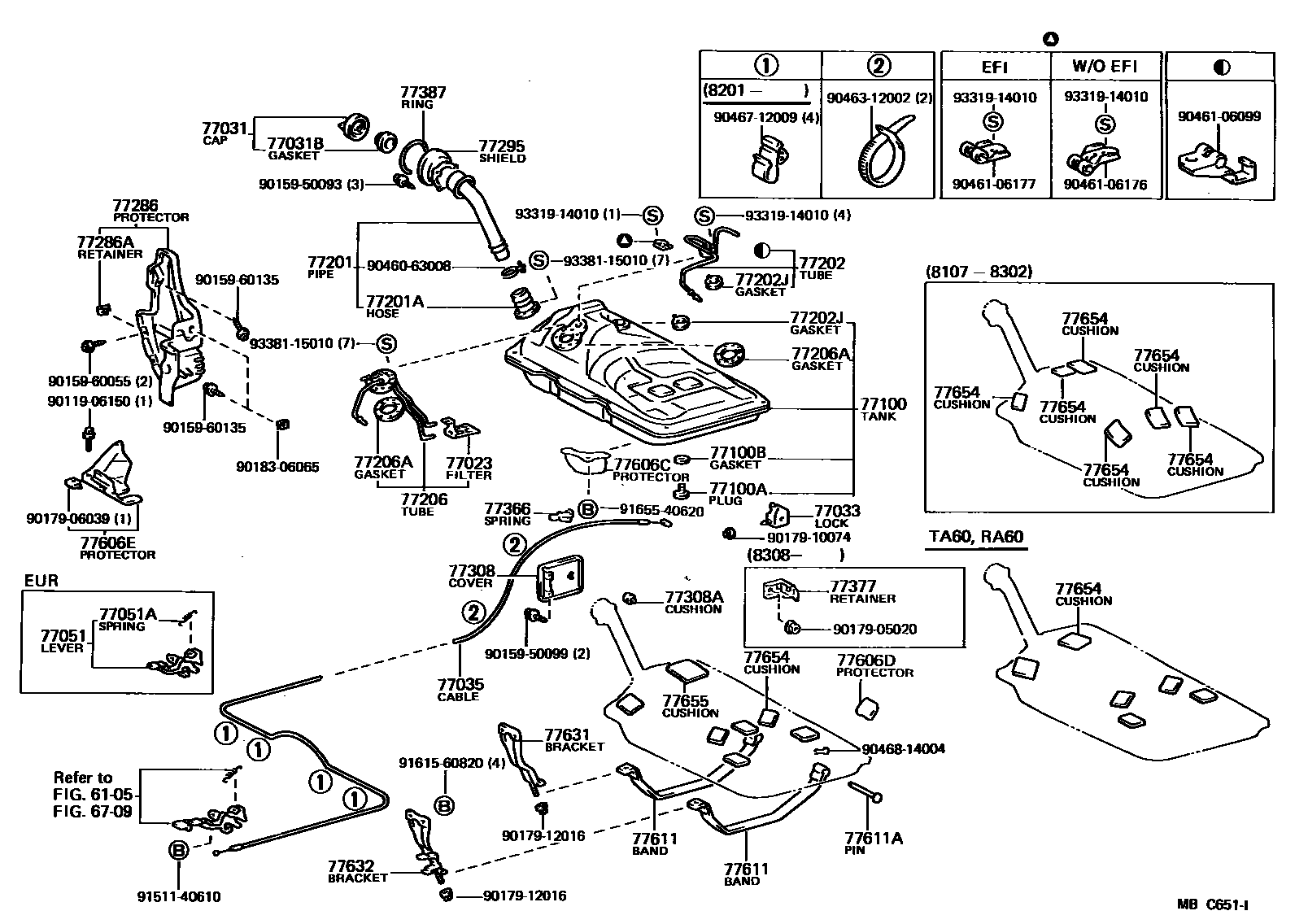

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRA6#,SA63,TA60198108-198312

main77023-14030iRA61,SA63,TA60198312-198507

main77023-30010iMA61198112-198308

77031CAP ASSY, FUEL TANK

main77310-12100iAA63,MA61,RA6#,SA63,TA60198108-198512

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAA63,MA61,RA6#,SA63,TA60198108-198512

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iMA61,RA6#,TA60198304-198512

main77037-24010iRA6#,TA60..ARL,EUR,GEN198108-198111

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14070iAA63,RA60,61,63,TA60..CP..LHD198111-198507

main77035-14090iAA63,MA61,RA6#,SA63..LB..RHD..(ARL,EUR,GEN)198108-198512

main77035-14110iAA63,RA6#,SA63..CP..RHD198108-198507

main77035-14130iRA6#,TA60..LB..LHD..(EUR,GEN)198108-198111

77051LEVER SUB-ASSY, FUEL LID OPEN

main77306-14010iMA61,RA61..RHD..EUG198108-198512

main77306-14020iAA63,MA61,RA61,63,TA60..LHD..EUR198108-198512

77051ASPRING, TENSION (FOR FUEL LID LEVER)

main90506-09004iAA63,MA61,RA61,63,TA60..EUR198108-198512

77100TANK ASSY, FUEL

main77001-19095iRA60,TA60198108-198307

main77001-19096iRA60,TA60198307-198507

main77001-19105iMA61198112-198307

main77001-19107iAA63,MA61,RA65198307-198512

main77001-19115iRA61,63198108-198307

main77001-19116iRA61,63,SA63198307-198507

77100APLUG(FOR FUEL TANK)

main90341-20003iAA63,MA61,RA6#,SA63,TA60198208-198412

OD=20

main90341-20004iAA63,MA61,RA6#,TA60198412-198512

main90341-24036iMA61,RA6#,TA60198108-198208

OD=24

77100BGASKET(FOR FUEL TANK)

main90430-20006iAA63,MA61,RA6#,SA63,TA60198208-198412

ID=20.3

main90430-20007iAA63,MA61,RA6#,TA60198412-198512

main90430-24047iMA61,RA6#,TA60198108-198208

ID=24

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14200iRA60,TA60198108-198507

main77201-14220iAA63,MA61,RA61,63,65,SA63198108-198512

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iAA63,MA61,RA6#,SA63,TA60198108-198512

77202TUBE SUB-ASSY, BREATHER

main77012-14022iRA60,TA60198108-198307

main77012-14023iRA60,TA60198307-198507

main77012-14040iMA61,RA61,63198108-198307

main77012-14041iAA63,MA61,RA61,63,65,SA63198307-198512

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14041iRA60198108-198308

main77203-14061iTA60..GEN198108-198507

main77203-14080iRA61,SA63198108-198507

main77203-14100iTA60..EUG198108-198306

main77203-14130iRA63198108-198308

main77203-24010iMA61198112-198308

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14010iMA61198112-198308

main77169-14020iRA60,61,63,SA63,TA60198108-198507

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14090iRA60,TA60198108-198507

main77277-14100iAA63,MA61,RA61,63,65,SA63198108-198512

77286ARETAINER, FUEL FILLER PIPE PROTECTOR

main90183-06006×2iAA63,MA61,RA6#,SA63,TA60198108-198512

77295SHIELD, FUEL FILLER PIPE

main77034-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14040iMA61,RA6#,TA60198108-198308

main77350-91D01iMA61198308-198512

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009×2iAA63,MA61,RA6#,SA63,TA60198108-198512

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAA63,MA61,RA6#,SA63,TA60198108-198512

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iMA61198308-198512

77387RING, FUEL INLET BOX

main77391-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

77606CPROTECTOR, FUEL TANK, NO.2

main77642-14030iMA61,RA61..SAA198308-198512

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14030iMA61,RA61..SAA198308-198512

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14080iAA63,MA61,RA6#,SA63,TA60198108-198512

77611BAND, FUEL TANK

main77601-14060iMA61,RA61,63; RA60,TA60198108-198308

RH

main77602-14030iMA61,RA61..SAA198308-198512

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020×2iAA63,MA61,RA6#,SA63,TA60198108-198512

77631BRACKET, FUEL TANK, NO.1

main77613-14021iRA60,TA60198108-198112

main77613-14022iRA60,TA60198112-198507

main77613-14040iAA63,MA61,RA61,63,65,SA63198108-198512

77632BRACKET, FUEL TANK, NO.2

main77614-14021iRA60,TA60198108-198507

main77614-14040iAA63,MA61,RA61,63,65,SA63198108-198512

77654CUSHION, FUEL TANK, NO.2

main77652-14060×2iMA61,RA6#,TA60198108-198302

120X70

main77652-14080×6iAA63,MA61,RA6#,SA63,TA60198302-198512

main77652-20010×4iMA61,RA6#,TA60198108-198302

120X120

77655CUSHION, FUEL TANK, NO.3

main77652-14090iAA63,MA61,RA61,63,65,SA63198302-198512

9011906150

main90119-06150

9015950093

main90159-50093

9015950099

main90159-50099

9015960055

main90159-60055

9015960135

main90159-60135

9017905020

main90179-05020

9017906039

main90179-06039

9017910074

main90179-10074

9017912016

main90179-12016

9018306065

main90183-06065

9046063008

main90460-63008

9046106099

main90461-06099

9046106176

main90461-06176

9046106177

main90461-06177

9046312002

main90463-12002

9046712009

main90467-12009

9046814004

main90468-14004

9151140610

main91511-40610

9161560820

main91615-60820

9165540620

main91655-40620

9331914010

main93319-14010

9338115010

main93381-15010

57 parts on this diagram · 7 diagrams in section
