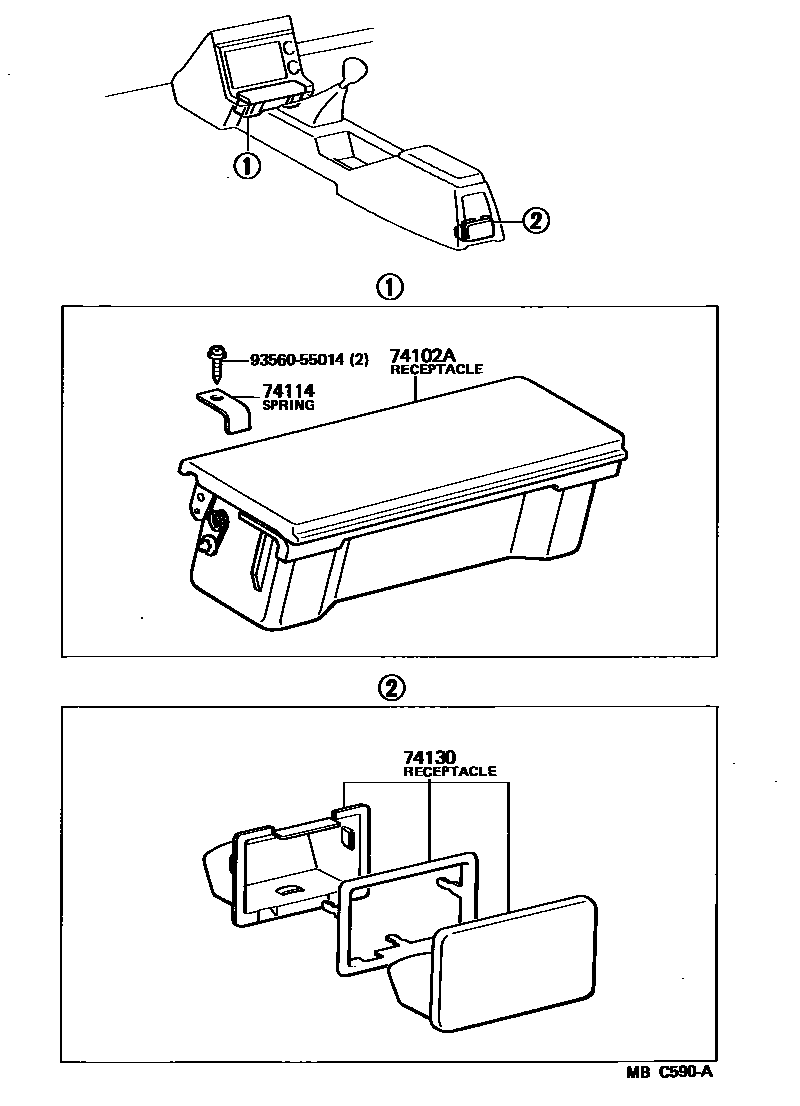

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-14090iMA61,RA61,63,TA60..LHD..EUG198108-198202

SOFT PAD

main74102-14091iAA63,RA60,63,65,SA63,TA60..ARL,GEN,ME198202-198507

main74102-14091iMA61,RA61,63,TA60..LHD..EUG198202-198308

SOFT PAD

main74102-14110iMA61,RA61,63,TA60..EUR198108-198202

main74102-14111iMA61;AA63,RA61,TA60..EUR198202-198512

74114SPRING, FRONT ASH RECEPTACLE PROTECTOR

main74114-14020iAA63,MA61,RA6#,SA63,TA60198108-198512

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

main74130-12040-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main74130-12040-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main74130-12040-06iAA63,RA6#,SA63,TA60198108-198512

DARK BROWN,BROWN,TRIM4#

main74130-12040-14iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

main74130-12040-22iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

9356055014

main93560-55014

4 parts on this diagram · 1 diagram in section
