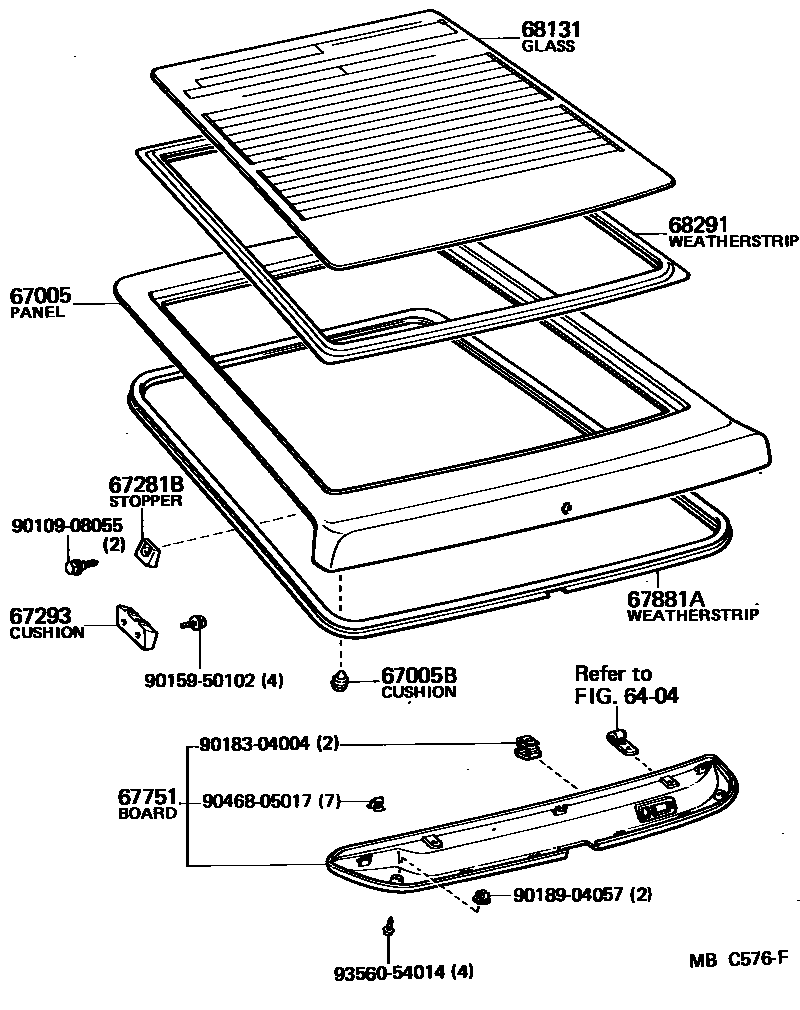

BACK DOOR PANEL & GLASS

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67005PANEL SUB-ASSY, BACK DOOR

main67005-14260iAA63,MA61,RA6#,SA63,TA60..LB198308-198512

main67005-14280iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

W/RR WIPER

main67005-14570iRA60..GT198110-198308

W/OUTER VISOR

main67005-14580iTA60..LB..TCB..GEN198208-198507

W/OUTER VISOR & RR WIPER

main67005-14610iMA61..ARL,GEN,SAA; MA61..GEN,SAA198308-198512

GEN,W/OUTER VISOR & RR WIPER; W/OUTER VISOR & RR WIPER

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041×2iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

67281BSTOPPER, BACK DOOR, LOWER

main67281-14020×2iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-14010×2iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

67751BOARD, BACK DOOR TRIM

main64781-14030-01iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLACK,BLACK,TRIM2#

main64781-14030-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main64781-14030-04iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLUE,BLUE,TRIM8#

main64781-14030-06iAA63,RA6#,SA63,TA60..LB198108-198507

DARK BROWN,BROWN,TRIM4#

main64781-14030-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

67881AWEATHERSTRIP, BACK DOOR

main67881-14030iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

68131GLASS, BACK DOOR

main68131-14010iAA63,MA61,RA60,61,63,TA60..LB..(GEN,ME,SAA)198108-198512

T=4.0,*TT

main68131-14020iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

T=4.0,W/DEFOGGER,*TT

main68131-14040iMA61..LHD..EUR198308-198512

T=4.0,W/HEAVY *DEF,*TT

main68131-14090iRA60..LB..ME198110-198205

W/VISOR,T=4.0,*TT

main68131-14091iMA61..EUG198209-198308

GEN,W/VISOR,T=4.0,*TT

main68131-14110iRA60..LB..(ARL,ME)198110-198205

W/VISOR,HEAVY *DEF,T=4.0,*TT

main68131-14111iMA61..EUG198209-198308

W/VISOR,HEAVY *DEF,T=4.0,*TT

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-14010iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

9010908055

main90109-08055

9015950102

main90159-50102

9018304004

main90183-04004

9018904057

main90189-04057

9046805017

main90468-05017

9356054014

main93560-54014

15 parts on this diagram · 1 diagram in section
