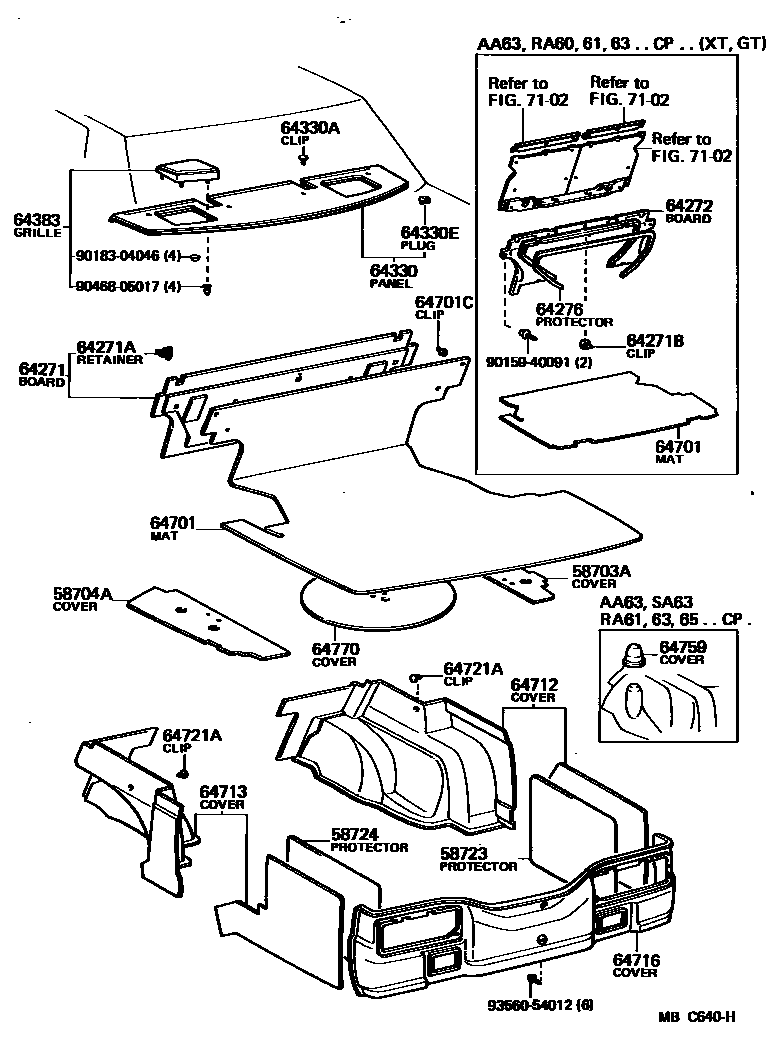

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-14030iAA63,RA6#,SA63,TA60..CP198108-198507

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-14050iAA63,RA6#,SA63,TA60..CP198108-198507

58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1

main58723-14030iAA63,RA61,TA60..CP..EUR198308-198507

58724PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2

main58724-14020iAA63,RA61,TA60..CP..EUR198308-198507

64271BOARD, ROOM PARTITION, NO.1

main64270-14080iRA60,61,TA60..CP..(LT,ST)198108-198204

main64270-14081iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198204-198507

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020iRA60,61,TA60..CP..(LT,ST)198108-198507

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-10006-01iAA63,RA60,61,63..CP..(GT,XT)198108-198507

BLACK,BLACK,TRIM2#

sub90467-10006

main90467-10006-14iAA63,RA60,61,63..CP..(GT,XT)198108-198507

BLUE,BLUE,TRIM8#

sub90467-10006

main90467-10006-16iAA63,RA60,61,63..CP..(GT,XT)198108-198507

DARK BROWN,BROWN,TRIM4#

sub90467-10006

64272BOARD, ROOM PARTITION, NO.2

main64207-14010-01iRA60..CP..XT198108-198308

BLACK,BLACK,TRIM2#

main64207-14010-04iRA60..CP..XT198108-198308

BLUE,BLUE,TRIM8#

main64207-14010-06iRA60..CP..XT198108-198308

DARK BROWN,BROWN,TRIM4#

main64207-14020-01iAA63,RA61,63..CP..(GT,XT)198108-198507

BLACK,BLACK,TRIM2#

main64207-14020-04iAA63,RA61,63..CP..(GT,XT)198108-198507

BLUE,BLUE,TRIM8#

main64207-14020-06iAA63,RA61,63..CP..(GT,XT)198108-198507

DARK BROWN,BROWN,TRIM4#

64276PROTECTOR, ROOM PARTITION DOOR OPENING

main64279-14010-01iRA60..CP..XT198108-198308

BLACK,BLACK,TRIM2#

sub64279-14010

sub64279-14020

main64279-14010-04iRA60..CP..XT198108-198308

BLUE,BLUE,TRIM8#

sub64279-14010

sub64279-14020

main64279-14010-06iRA60..CP..XT198108-198308

DARK BROWN,BROWN,TRIM4#

sub64279-14010

sub64279-14020

main64279-14020-01iAA63,RA61,63..CP..(GT,XT)198108-198507

BLACK,BLACK,TRIM2#

sub64279-14020

main64279-14020-04iAA63,RA61,63..CP..(GT,XT)198108-198507

BLUE,BLUE,TRIM8#

sub64279-14020

main64279-14020-06iAA63,RA61,63..CP..(GT,XT)198108-198507

DARK BROWN,BROWN,TRIM4#

sub64279-14020

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-14320-01iAA63,RA60,61,TA60..CP..(GTS,LT,ST)..(EUR,GEN)198108-198507

BLACK,BLACK,TRIM2#

sub64330-14320

main64330-14320-04iAA63,RA60,61,TA60..CP..(GTS,LT,ST)..(EUR,GEN)198108-198507

BLUE,BLUE,TRIM8#

sub64330-14320

main64330-14320-06iAA63,RA60,61,TA60..CP..(GTS,LT,ST)..(EUR,GEN)198108-198507

DARK BROWN,BROWN,TRIM4#

sub64330-14320

main64330-14330-01iRA60,61..CP..XT198108-198208

BLACK,BLACK,TRIM2#

sub64330-14331

main64330-14330-04iRA60,61..CP..XT198108-198208

BLUE,BLUE,TRIM8#

sub64330-14331

main64330-14330-06iRA60,61..CP..XT198108-198208

DARK BROWN,BROWN,TRIM4#

sub64330-14331

main64330-14331-01iRA60,61..CP..XT198208-198507

BLACK,BLACK,TRIM2#

sub64330-14520

main64330-14331-04iRA60,61..CP..XT198208-198507

BLUE,BLUE,TRIM8#

sub64330-14520

main64330-14331-06iRA61..CP..XT198208-198507

DARK BROWN,BROWN,TRIM4#

sub64330-14520

main64330-14340-01iRA60,65,SA63..ST..ARL198108-198507

BLACK,BLACK,TRIM2#

sub64330-14320

main64330-14340-04iRA60,65,SA63..ST..ARL198108-198507

BLUE,BLUE,TRIM8#

sub64330-14320

main64330-14340-06iRA60,65,SA63..ST..ARL198108-198507

DARK BROWN,BROWN,TRIM4#

sub64330-14320

main64330-14350-01iRA61..CP..ST198108-198308

W/SPEAKER GRILLE,BLACK,BLACK,TRIM2#

sub64330-14350

main64330-14350-04iRA61..CP..ST198108-198308

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

sub64330-14350

main64330-14350-06iRA61..CP..ST198108-198308

W/SPEAKER GRILLE,DARK BROWN,BROWN,TRIM4#

sub64330-14350

main64330-14360-01iAA63,RA63..CP198108-198507

BLACK,BLACK,TRIM2#

sub64330-14360

main64330-14360-04iAA63,RA63..CP198108-198507

BLUE,BLUE,TRIM8#

sub64330-14360

main64330-14360-06iAA63,RA63..CP198108-198507

DARK BROWN,BROWN,TRIM4#

sub64330-14360

main64330-14370-01iRA6#..CP..(GT,XT)..(EUR,GEN)198108-198208

W/SPEAKER GRILLE,BLACK,BLACK,TRIM2#

sub64330-14371

main64330-14370-04iRA6#..CP..(GT,XT)..(EUR,GEN)198108-198208

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

sub64330-14371

main64330-14370-06iRA6#..CP..(GT,XT)..(EUR,GEN)198108-198208

W/SPEAKER GRILLE,DARK BROWN,BROWN,TRIM4#

sub64330-14371

main64330-14371-01iRA63..CP..GEN;RA60,61..CP..RHD..XT198208-198308

W/SPEAKER GRILLE,BLACK,BLACK,TRIM2#

sub64330-14520

main64330-14371-04iRA63..CP..GEN;RA60,61..CP..RHD..XT198208-198308

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

sub64330-14520

main64330-14371-06iRA63..CP..GEN;RA60,61..CP..RHD..XT198208-198308

W/SPEAKER GRILLE,DARK BROWN,BROWN,TRIM4#

sub64330-14520

main64330-14540-01iAA63..CP198308-198507

W/SPEAKER GRILLE,BLACK,BLACK,TRIM2#

sub64330-14540

main64330-14540-04iAA63..CP198308-198507

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

sub64330-14540

main64330-14540-06iAA63..CP198308-198507

W/SPEAKER GRILLE,DARK BROWN,BROWN,TRIM4#

sub64330-14540

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-01iAA63,RA6#,SA63,TA60..CP198211-198507

BLACK,BLACK,TRIM2#

sub90467-08037

main90467-08037-04iAA63,RA6#,SA63,TA60..CP198211-198507

BLUE,BLUE,TRIM8#

sub90467-08037

main90467-08037-06iAA63,RA6#,SA63,TA60..CP198211-198507

DARK BROWN,BROWN,TRIM4#

sub90467-08037

main90467-09144-01iRA6#,TA60..CP198108-198211

BLACK,BLACK,TRIM2#

sub90467-09144

main90467-09144-14iRA6#,TA60..CP198108-198211

BLUE,BLUE,TRIM8#

sub90467-09144

main90467-09144-16iRA6#,TA60..CP198108-198211

DARK BROWN,BROWN,TRIM4#

sub90467-09144

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01198-01iRA60,65,SA63..ST..ARL198108-198507

BLACK,BLACK,TRIM2#

sub90950-01198

main90950-01198-14iRA60,65,SA63..ST..ARL198108-198507

BLUE,BLUE,TRIM8#

sub90950-01198

main90950-01198-26iRA60,65,SA63..ST..ARL198108-198507

DARK BROWN,BROWN,TRIM4#

sub90950-01198

64383GRILLE, SPEAKER, REAR

main64033-14040-01iRA61,TA60..CP..(LT,ST)..EUG198108-198507

RH,BLACK,BLACK,TRIM2#

sub64033-14040

main64033-14040-04iRA60,63..CP..(GT,XT)..GEN198108-198308

RH,BLUE,BLUE,TRIM8#

sub64033-14040

main64033-14040-06iRA61,TA60..CP..(LT,ST)..EUG198108-198212

RH,DARK BROWN,BROWN,TRIM4#

sub64033-14040

main64033-14040-14iAA63..CP198308-198507

RH,BLUE,BLUE,TRIM8#

sub64033-14040

main64033-14040-16iAA63..CP198308-198507

RH,DARK BROWN,BROWN,TRIM4#

sub64033-14040

main64033-14040-26iRA61..CP..RHD198212-198308

RH,DARK BROWN,BROWN,TRIM4#

sub64033-14040

main64034-14030-01iRA61,TA60..CP..(LT,ST)..EUG198108-198507

LH,BLACK,BLACK,TRIM2#

sub64034-14030

main64034-14030-04iRA61..CP..RHD198108-198308

LH,BLUE,BLUE,TRIM8#

sub64034-14030

main64034-14030-06iRA60,63..CP..(GT,XT)..GEN198108-198212

LH,DARK BROWN,BROWN,TRIM4#

sub64034-14030

main64034-14030-14iAA63..CP198308-198507

LH,BLUE,BLUE,TRIM8#

sub64034-14030

main64034-14030-16iAA63..CP198308-198507

LH,DARK BROWN,BROWN,TRIM4#

sub64034-14030

main64034-14030-26iRA60,63..CP..(GT,XT)..GEN198212-198308

LH,DARK BROWN,BROWN,TRIM4#

sub64034-14030

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-14170iRA61..CP..ST198108-198204

main64701-14171iAA63,RA61,65,SA63..CP..(GTS,ST)198204-198507

main64701-14200iRA60,TA60..CP..(LT,ST)198108-198204

main64701-14201iRA60,TA60..CP..(LT,ST)198204-198507

main64711-14220iRA60..CP..XT198108-198308

main64711-14230iAA63,RA61..CP..(GT,XT)198108-198507

64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)

main90467-07158-03iAA63,RA60,61,65,SA63,TA60..CP..(GTS,LT,ST)198108-198507

GRAY,GRAY

sub90467-07158

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64071-14050iRA60,TA60..CP..(LT,ST)198108-198507

main64071-14060iAA63,RA61,65,SA63..CP..(GTS,ST)198108-198507

main64071-14070iAA63,RA61,63..CP..(GT,XT)198108-198507

main64071-14090iRA60..CP..XT198108-198308

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64072-14010iAA63,RA61,63..CP..(GT,XT)198108-198507

main64072-14020iRA60..CP..XT198108-198308

main64072-14030iRA60,TA60..CP..(LT,ST)198108-198507

main64072-14040iAA63,RA61,65,SA63..CP..(GTS,ST)198108-198507

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-14090iRA61,TA60..CP..LHD..(LT,ST)..EUG198108-198507

*IPM

main64716-14130iRA61..CP..SAA198308-198308

RR LICENCE LAMP ON BACK PANEL

sub64716-14131

main64716-14131-03iRA61..CP..SAA198308-198507

GRAY,GRAY

sub64716-14131

main64716-14131-03iRA61..CP..SAA198308-198507

RR LICENCE LAMP ON BACK PANEL,GRAY

sub64716-14131

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-03iAA63,RA6#,SA63,TA60..CP198108-198507

GRAY,GRAY

sub90467-07158

64759COVER, SHOCK ABSORBER HEAD

main58731-22020iAA63,RA61,63,65,SA63..CP198108-198507

64770COVER ASSY, SPARE WHEEL

main64770-14010iAA63,RA6#,TA60..CP198108-198507

7102

9015940091

main90159-40091

9018304046

main90183-04046

9046805017

main90468-05017

9356054012

main93560-54012

26 parts on this diagram · 1 diagram in section
