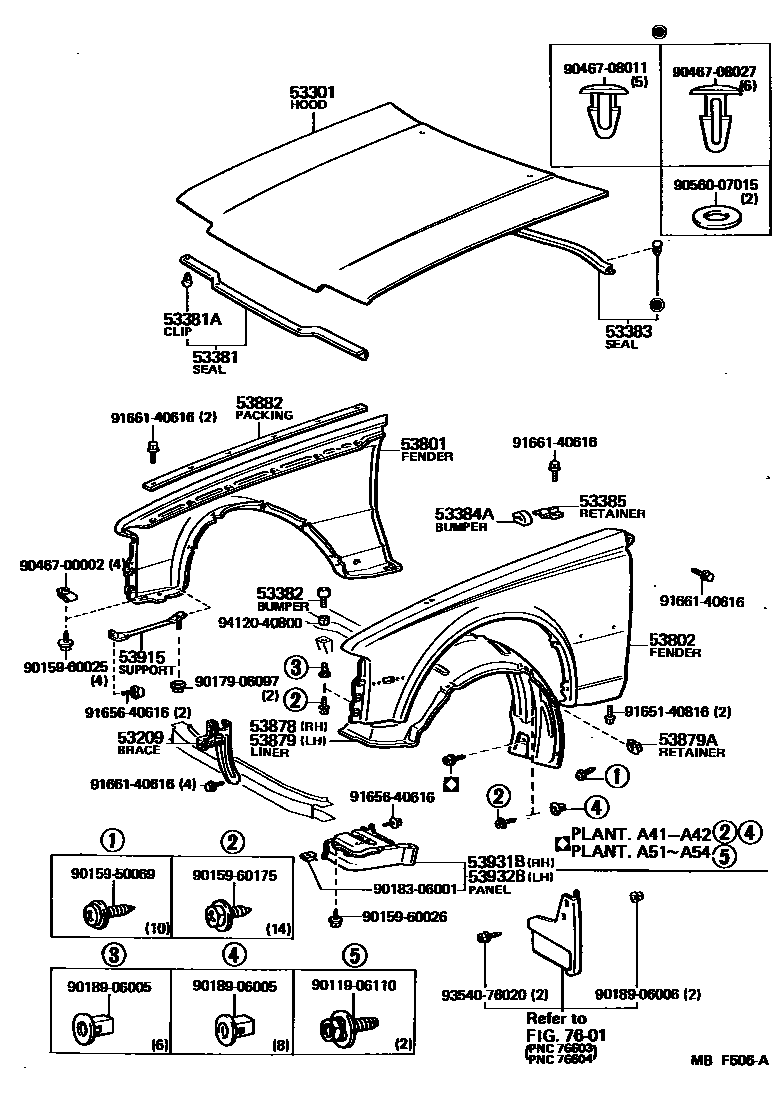

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-14120iRA6#,TA60198108-198308

main53208-14150iAA63,RA6#,SA63,TA60198308-198507

main53217-14040iMA61..ARL,GEN,SA,SAA198408-198410

main53217-14050iMA61..EUR198408-198410

53301HOOD SUB-ASSY

main53301-14220iRA6#,TA60198108-198308

main53301-14240iMA61198112-198512

main53301-14300iAA63,RA61,TA60..EUR198308-198507

main53301-14310iAA63,RA6#,SA63,TA60..ARL,GEN,SAA198308-198507

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14100iAA63,RA6#,SA63,TA60198108-198507

main53381-14110iMA61198112-198512

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iMA61198108-198512

main90467-08028×7iAA63,RA6#,SA63,TA60198108-198507

53382BUMPER, HOOD, FRONT

main53382-20011×4iAA63,MA61,RA6#,SA63,TA60198108-198512

53383SEAL, HOOD TO COWL TOP

main53383-14080iAA63,RA6#,SA63,TA60198108-198507

main53383-14090iMA61198112-198512

53384ABUMPER, FENDER TO HOOD

main53384-14030×2iAA63,MA61,RA6#,SA63,TA60198108-198512

53385RETAINER, HOOD, BUMPER

main53385-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

LH

main53386-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-14500iMA61..ARL,GEN,SA,SAA198308-198512

main53801-14630iAA63,RA61,63,TA60..EUR198108-198507

main53801-14640iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

main53801-14720iMA61..SAA198208-198308

main53801-14730iMA61..EUG198112-198308

main53801-14750iMA61..EUR198308-198512

W/OVER FENDER

main53801-14770iMA61..EUR198308-198512

main53801-14780iMA61..ARL,GEN,SA,SAA198308-198512

W/OVER FENDER

53802FENDER SUB-ASSY, FRONT LH

main53802-14590iMA61..ARL,GEN,SA,SAA198308-198512

main53802-14620iAA63,RA61,63,TA60..EUR198108-198507

main53802-14630iAA63,RA6#,SA63,TA60..ARL,GEN,ME,SAA198108-198507

main53802-14710iMA61..EUG198209-198308

GENERAL COUNTRIES SPEC

main53802-14720iMA61..EUG198112-198308

main53802-14740iMA61..EUR198308-198512

W/OVER FENDER

main53802-14760iMA61..EUR198308-198512

main53802-14770iMA61..ARL,GEN,SA,SAA198308-198512

W/OVER FENDER

53878LINER, FRONT FENDER, RH

main53875-14110iAA63,RA6#,SA63,TA60198108-198507

main53875-14150iMA61198112-198512

main53875-14160iMA61198308-198512

W/OVER FENDER

53879LINER, FRONT FENDER, LH

main53876-14110iAA63,RA6#,SA63,TA60198108-198507

main53876-14150iMA61198112-198512

main53876-14160iMA61198308-198512

W/OVER FENDER

53879ARETAINER, FRONT FENDER LINER

main53879-14010×10iAA63,MA61,RA6#,SA63,TA60198108-198512

TYPE A

main53879-14030iMA61198308-198512

TYPE B,W/OVER FENDER

53882PACKING, FRONT FENDER MAIN

main53882-14090×2iAA63,RA6#,SA63,TA60198108-198507

main53882-14100×2iMA61198112-198512

53915SUPPORT, FRONT VALANCE PANEL

main53915-14060iAA63,RA6#,SA63,TA60198108-198507

RH

main53916-14070iAA63,RA6#,SA63,TA60198108-198507

LH

53931BPANEL, FRONT END, RH

main53931-14040iRA6#,TA60198108-198308

53932PANEL SUB-ASSY, FRONT END

main53903-14010iMA61..ARL,GEN,SA,SAA198308-198410

main53903-14030iMA61198410-198512

main53903-14050iMA61..EUR198112-198512

W/*HC

main53931-14090iAA63,RA6#,SA63,TA60198308-198507

53932BPANEL, FRONT END, LH

main53932-14010iRA6#,TA60198108-198308

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906110

main90119-06110

9015950069

main90159-50069

9015960025

main90159-60025

9015960026

main90159-60026

9015960175

main90159-60175

9017906097

main90179-06097

9018306001

main90183-06001

9018906005

main90189-06005

9018906006

main90189-06006

9046700002

main90467-00002

9046708011

main90467-08011

9046708027

main90467-08027

9056007015

main90560-07015

9165140816

main91651-40816

9165640616

main91656-40616

9166140616

main91661-40616

9354076020

main93540-76020

9412040800

main94120-40800

37 parts on this diagram · 3 diagrams in section
