TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

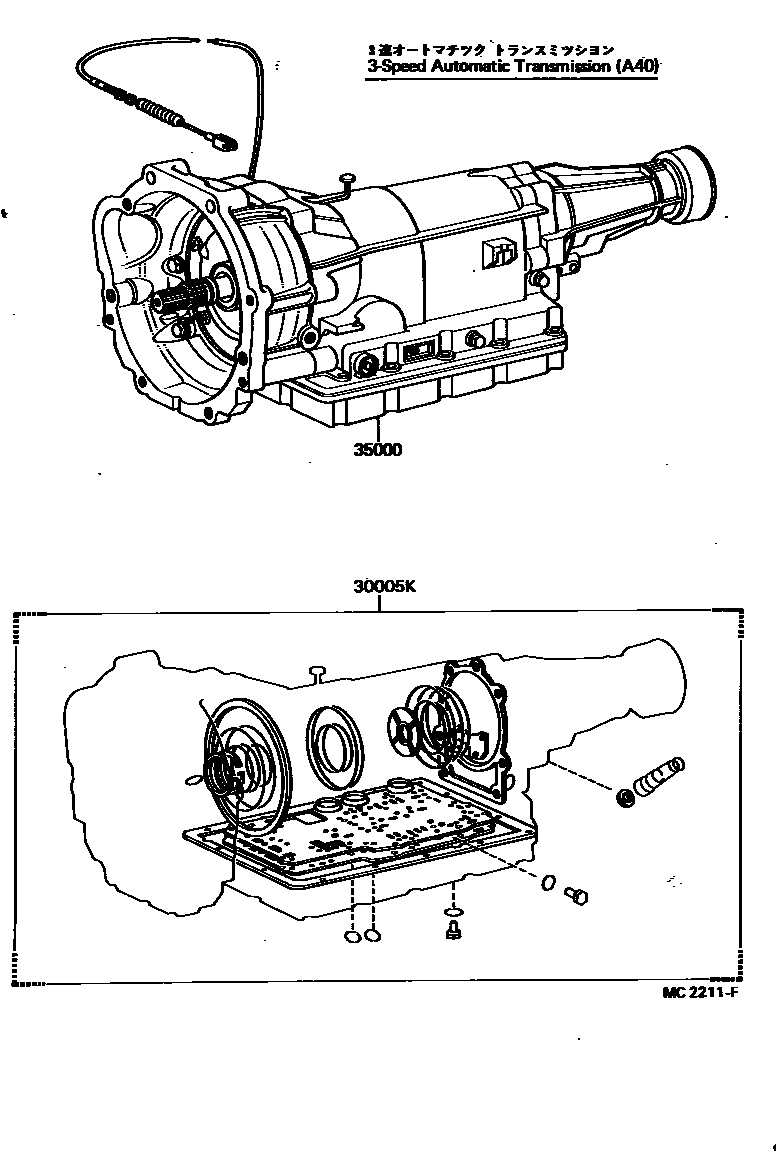

Parts diagram

30005KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14014i198308-198504

main04351-14030i198504-198512

main04351-22023i198108-198308

main04351-22032i198108-198504

main04351-22060i198504-198507

main04351-30081i198308-198504

main04351-30120i198504-198512

35000TRANSMISSION ASSY, AUTOMATIC

main35000-14490i198108-198308

SMG R=21:6

main35000-14540i198108-198202

SMG R=19:6

main35000-14541i198202-198308

SMG R=19:6

main35000-14542i198308-198507

SMG R=20:6

main35000-14550i198108-198202

SMG R=19:6

main35000-14551i198202-198308

SMG R=19:6

main35000-14552i198308-198408

SMG R=20:6

main35000-14553i198408-198507

SMG R=20:6

main35000-14570i198108-198202

SMG R=19:6

main35000-14571i198202-198308

SMG R=19:6

main35000-14580i198108-198202

SMG R=18:6

main35000-14581i198202-198308

SMG R=18:6

main35000-14770i198308-198512

main35000-14780i198308-198512

main35000-14790i198308-198512

main35000-14810i198308-198512

main35000-20710i198308-198408

main35000-20750i198408-198507

SMG R=19:6

2 parts on this diagram · 2 diagrams in section
