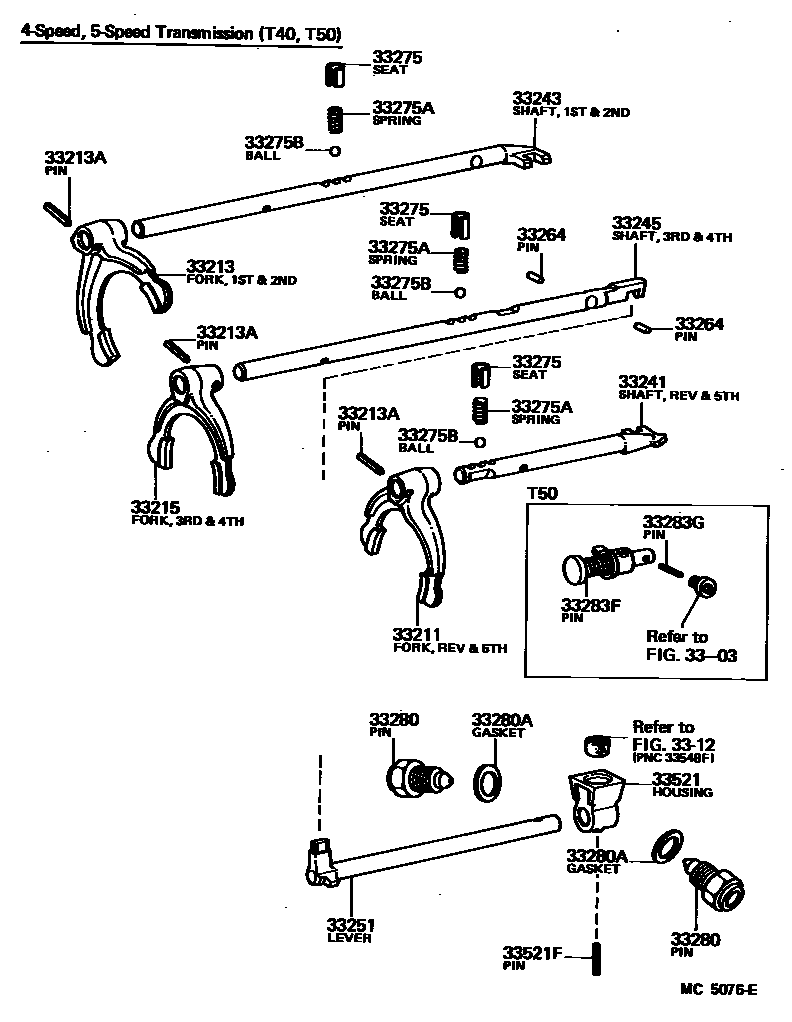

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

3303

3312

33211FORK, REVERSE SHIFT

main33214-14010iAA63,TA60..5F198108-198507

33213FORK, 1ST & 2ND SHIFT

main33212-14010iAA63,TA60..5F198108-198507

main33212-22020iMA61,RA6#,SA63..5F198108-198512

sub33212-30050

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×3iAA63,TA60..5F198108-198507

main90254-05016iMA61,RA6#,SA63..5F198108-198512

33215FORK, 3RD & 4TH SHIFT

main33213-14010iAA63,TA60..5F198108-198507

main33213-22030iMA61,RA6#,SA63..5F198108-198512

sub33213-22040

33241SHAFT, REVERSE SHIFT FORK

main33244-14050iAA63,TA60..5F198108-198507

main33244-22020iMA61,RA6#,SA63..5F198108-198512

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-14030iAA63,TA60..5F198108-198507

main33242-22020iMA61,RA6#,SA63..5F198108-198512

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iMA61,RA6#,SA63..5F198302-198512

sub33240-22021

main33243-14030iAA63,TA60..5F198108-198403

main33243-14040iAA63,TA60198403-198507

main33243-22030iMA61,RA6#..5F198108-198302

33251LEVER, SHIFT & SELECT

main33251-14010iAA63,TA60..5F198108-198507

main33251-22030iMA61,RA6#..5F198108-198302

main33251-22050iMA61,RA6#,SA63..5F198302-198512

sub33251-22051

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iMA61,RA6#,SA63..5F198108-198512

main90250-06188×2iAA63,TA60..5F198108-198507

L=10.8,OD=6

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010×3iAA63,TA60..5F198108-198507

main90341-12004iMA61,RA6#,SA63..5F198108-198512

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iMA61,RA6#,SA63..5F198108-198512

L=20.65

sub90501-14123

main90501-14237×3iAA63,TA60..5F198108-198507

L=16.1

33275BBALL, SHAFT DETENT

main90360-10003×3iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

33280PIN ASSY, REVERSE RESTRICT

main33280-12040iAA63,TA60..5F198108-198507

RH

main33280-12050iAA63,TA60..5F198108-198507

LH

main33280-22020iMA61,RA6#,SA63..5F198108-198512

RH

main33280-22030iMA61,RA6#,SA63..5F198108-198512

LH

33280AGASKET, REVERSE RESTRICT PIN

main90430-18007×2iMA61,RA6#,SA63..5F198108-198408

main90430-18008×2iMA61,RA6#..5F198408-198512

main90430-22002×2iAA63,TA60..5F198108-198507

33283FPIN, REVERSE RESTRICT

main33280-20030iAA63,TA60..5F198108-198507

main33280-22010iMA61,RA6#,SA63..5F198108-198512

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iAA63,TA60..5F198108-198507

main90254-05016iMA61,RA6#,SA63..5F198108-198512

33521HOUSING, SHIFT LEVER

main33502-14100iMA61,RA6#..5F198108-198512

main33502-22210iSA63..5F198308-198507

sub33502-30260

main33521-14060iAA63,TA60..5F198108-198507

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iMA61,RA6#,SA63..5F198303-198512

main90113-08001iMA61,RA6#..5F198108-198303

main90254-05001iAA63,TA60..5F198108-198507

20 parts on this diagram · 2 diagrams in section
