FUEL PUMP & PIPE

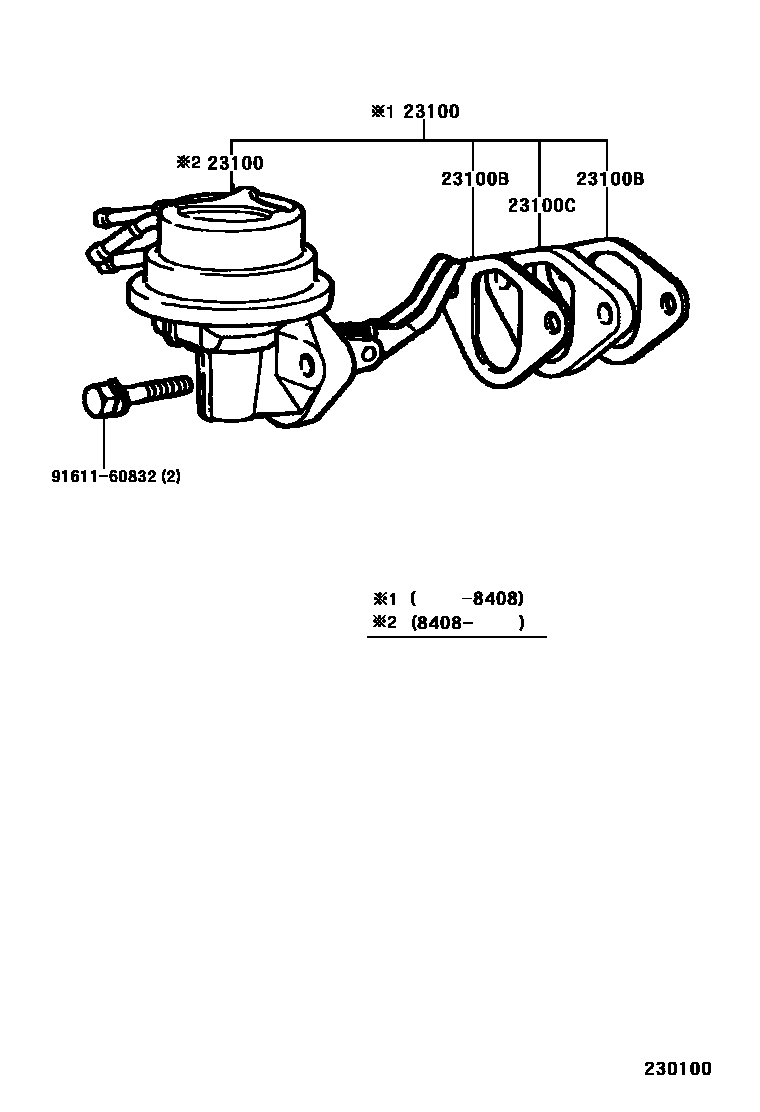

Parts diagram

23100PUMP ASSY, FUEL

main23100-19105i198108-198306

main23100-19116i198306-198507

main23100-29306i198108-198507

main23100-37060i198408-198507

main23100-39106i198108-198112

main23100-39107i198112-198308

main23100-39336i198108-198308

main23100-39346i198108-198408

main23100-79045i198308-198408

23100BGASKET, FUEL PUMP

main90923-05005×2i198108-198507

23100CINSULATOR, FUEL PUMP

main23915-63010i198308-198408

main90923-06001i198108-198507

9161160832

main91611-60832

4 parts on this diagram · 3 diagrams in section
