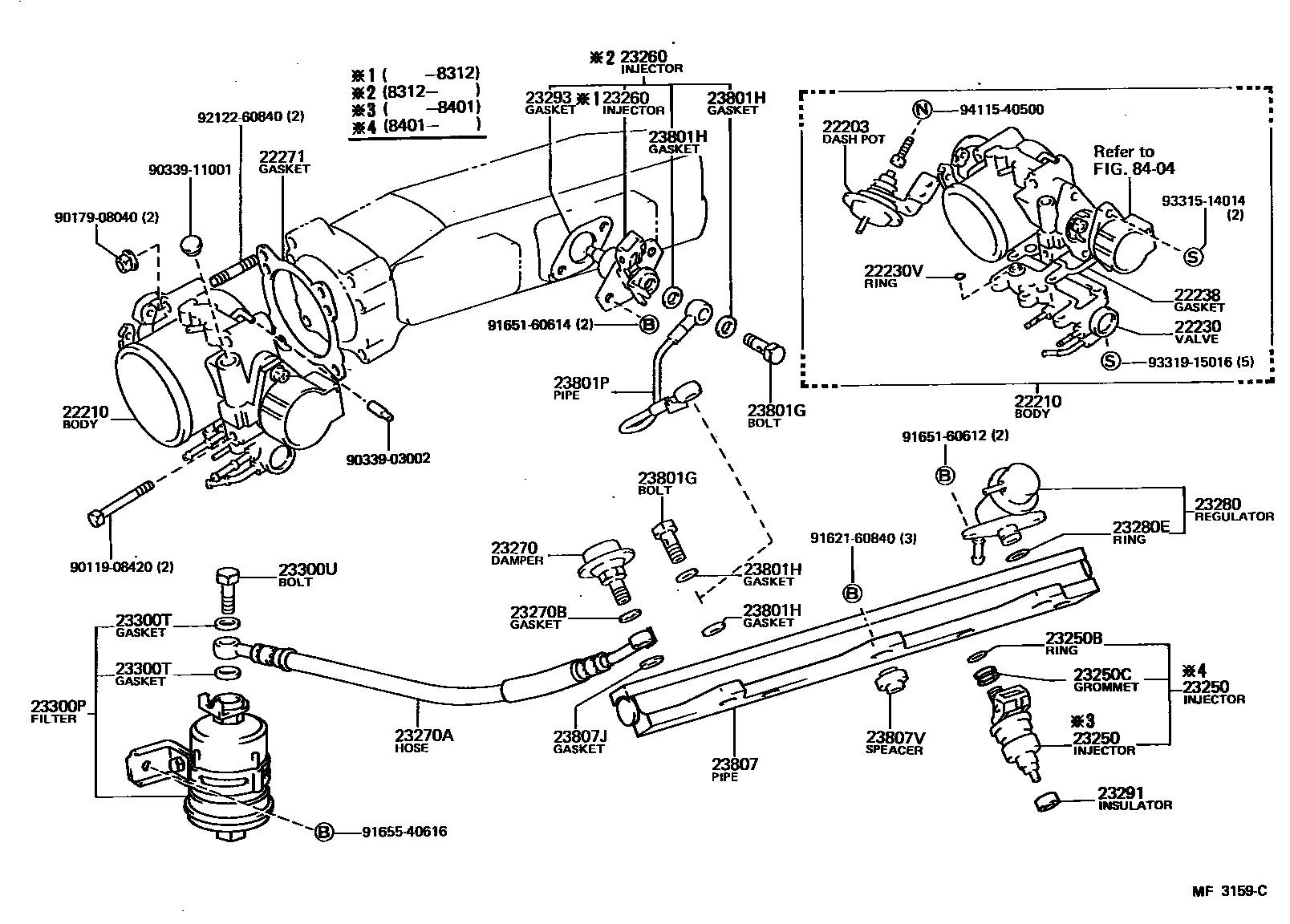

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-35050i22REC..RA65..5F198408-198507

main22203-16010i4AGE..AA63198308-198507

main22203-41040i5ME..MA61198308-198512

main22203-43010i5MGE..MA61..RHD..4FC198308-198512

main22203-43020i5MGE..MA61198112-198512

main22203-43030i5MGE..MA61..LHD..4FC198308-198512

22210BODY ASSY, THROTTLE

main22210-16030i4AGE..AA63198308-198507

sub22210-16031

main22210-35050i22REC..RA65..5F198408-198507

main22210-35060i22REC..RA65..4FC198408-198507

main22210-43101i5MGE..MA61..LHD198112-198308

main22210-43151i5MGE..MA61..RHD198112-198308

main22210-43200i5MGE..MA61..RHD..5F198308-198512

sub22210-43340

sub90339-03005

main22210-43210i5MGE..MA61..RHD..4FC..EUG198308-198512

main22210-43220i5MGE..MA61..LHD..5F198308-198401

sub22210-43300

sub90339-03005

main22210-43230i5MGE..MA61..LHD..4FC..EUG198308-198512

main22210-43240i5MGE..MA61..LHD..4FC..(GEN,SAA)198303-198401

sub22210-43310

sub90339-03005

main22210-43250i5MGE..MA61..RHD..4FC..GEN198308-198512

main22210-43260i5ME..MA61..SDZ198308-198512

main22210-43270i5ME..MA61..ARL198308-198512

main22210-43300i5MGE..MA61..LHD..5F198401-198512

main22210-43310i5MGE..MA61..LHD..4FC..(GEN,SAA)198401-198512

22230VALVE ASSY, AUXILIARY AIR

main22230-16020i4AGE..AA63198308-198507

main22230-35010i22REC..RA65198408-198507

main22230-43010i5MGE..MA61198112-198512

main22230-43030i5ME..MA61198308-198512

22230VRING, O(FOR AUXILIARY AIR VALVE)

main96711-19009i4AGE..AA63198308-198507

22238GASKET, AUXILIARY AIR VALVE

main22238-16010i4AGE..AA63198308-198507

sub22238-16020

main22238-43010i5MGE..MA61198112-198512

sub22238-43020

22271GASKET, THROTTLE BODY

main22271-16020i4AGE..AA63198308-198507

main22271-35010i22REC..RA65198408-198507

sub22271-35011

main22271-41030i5ME..MA61198308-198512

sub22271-43020

main22271-43010i5MGE..MA61198112-198512

sub22271-43030

23250INJECTOR ASSY, FUEL

main23209-16010i4AGE..AA63198401-198507

sub23209-16090

main23209-45011i22REC..RA65198401-198512

sub23209-43010

main23250-16010i4AGE..AA63198308-198401

main23250-45011i5M#..MA61198112-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i5M#..MA61198112-198512

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i22REC..RA65198112-198512

23260INJECTOR ASSY, COLD START FUEL

main23260-16020i4AGE..AA63198308-198312

sub23260-19035

main23260-19035i4AGE..AA63198312-198507

sub23260-19036

main23260-39055i22REC..RA65198408-198507

sub23260-39056

main23260-43010i5MGE..MA61198112-198312

sub23260-49065

main23260-45010i5ME..MA61198308-198312

sub23260-49085

main23260-49065i5MGE..MA61198312-198512

sub23260-49066

main23260-49085i5ME..MA61198312-198512

sub23260-49086

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-35010i22REC..RA65198412-198507

sub23270-42010

main23270-43010i5MGE..MA61198112-198512

sub23270-35010

main23270-52011i4AGE..AA63198308-198507

sub23207-16020

main23270-70010i22REC..RA65198308-198512

23270AHOSE(FOR PULSATION DAMPER)

main90923-01287i4AGE..AA63198308-198507

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i4AGE..AA63198308-198507

sub23232-41081

main90430-17002i5M#..MA61198112-198512

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-16020i4AGE..AA63198308-198507

main23280-35010i22REC..RA65198408-198410

main23280-35011i22REC..RA65198410-198507

sub23280-35020

main23280-41030i5ME..MA61198308-198512

main23280-43020i5MGE..MA61198112-198512

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AGE..AA63198308-198507

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i5M#..MA61198112-198512

23293GASKET, COLD START INJECTOR

main23293-34020i5ME..MA61198308-198512

sub23293-43020

main23293-35010i22REC..RA65198408-198507

sub23293-35020

main23293-43010i5MGE..MA61198112-198512

sub23293-43030

main23293-74010i4AGE..AA63198308-198507

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23300-19055i4AGE..AA63198308-198507

main23300-39045i22REC..RA65198408-198507

main23300-43020i5MGE..MA61198112-198301

sub23300-49025

main23300-49025i5MGE..MA61198301-198308

sub23300-49055

main23300-49065i5M#..MA61198308-198512

23300TGASKET(FOR FUEL FILTER)

main90430-12005i22REC..RA65198112-198512

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AGE..AA63198112-198512

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i4AGE..AA63198308-198507

main90401-10008i5MGE..MA61198112-198512

main90401-12097i5ME..MA61198308-198512

23801HGASKET(FOR FUEL PIPE)

main90099-01459i5MGE..MA61198112-198412

main90430-08005i4AGE..AA63198308-198507

main90430-10204i5MGE..MA61198412-198512

main90430-12005i5ME..MA61198308-198512

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-43020i5MGE..MA61198112-198512

main23901-16030i4AGE..AA63198308-198507

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-16020i4AGE..AA63198308-198506

sub23807-16021

main23807-16030i4AGE..AA63198506-198507

sub23807-16031

main23807-35010i22REC..RA65198408-198507

sub23807-35011

main23807-45020i5ME..MA61198308-198512

main23814-43020i5MGE..MA61198112-198512

23807JGASKET, PIPE FUEL DELIVARY INLET

main90201-12109i4AGE..AA63198308-198507

main90430-14002i5M#..MA61198112-198512

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08009i4AGE..AA63198308-198507

8404

9011908420

main90119-08420

9017908040

main90179-08040

9033903002

main90339-03002

9033911001

main90339-11001

9162160840

main91621-60840

9165160612

main91651-60612

9165160614

main91651-60614

9165540616

main91655-40616

9212260840

main92122-60840

9331514014

main93315-14014

9331915016

main93319-15016

9411540500

main94115-40500

39 parts on this diagram · 9 diagrams in section
