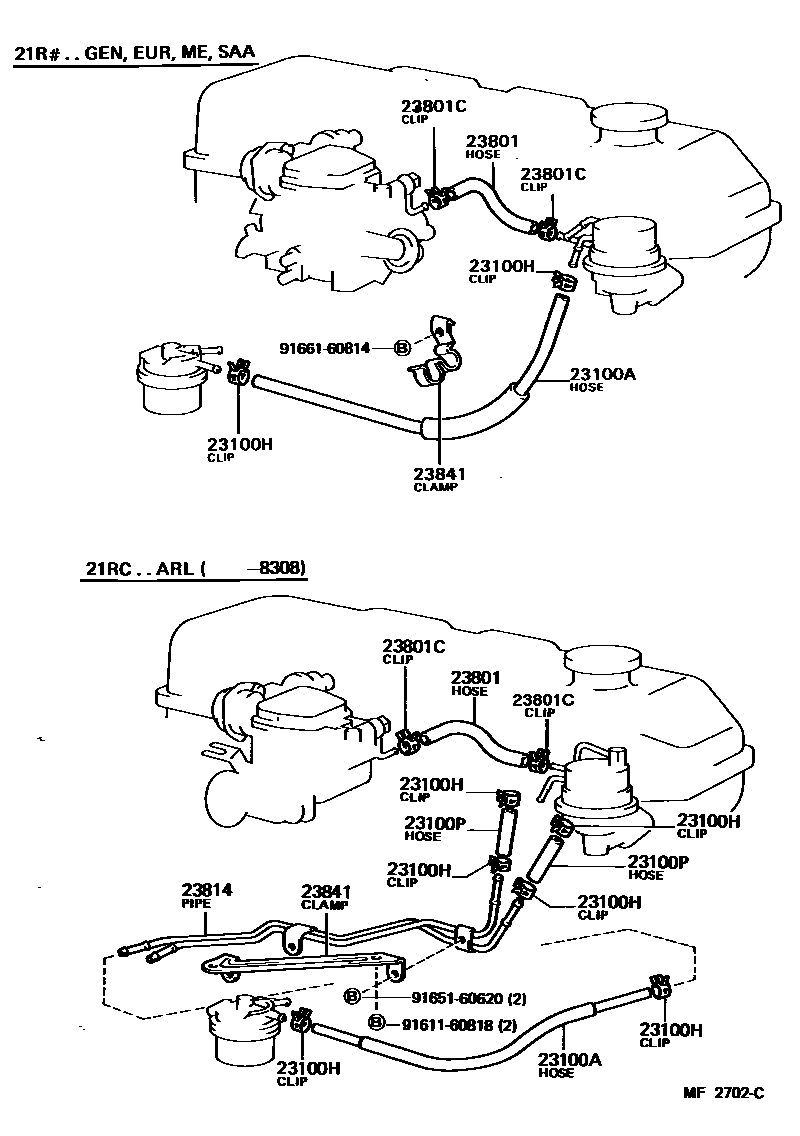

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

23100AHOSE, FUEL

main23271-37020i21R#..RA60,61..EUR,GEN,ME,SAA198108-198408

main23271-74030i2SC..SA63198308-198401

main23271-74060i2SC..SA63198401-198408

main90447-12052i21R#..RA61198408-198507

main95332-06030i18RG..RA63; 2T#..TA60198108-198507

*H,L=280

23100HCLIP(FOR FUEL HOSE)

main96132-30600×6i21R#,18RG..RA60,61,63; 2SC..SA63; 2T#..TA60198108-198507

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06020×2i21R#..RA61198408-198507

*H,L=120

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-74050i2SC..SA63198308-198408

main95332-06020i21R#..RA60,61198108-198507

L=200(*H,L=190)

main95332-06030i2TB..TA60198108-198507

L=300(*H,L=260)

main95332-08040i18RG..RA63198108-198308

L=400(*H,L=340)

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i21R#..RA60,61; 2SC..SA63; 2T#..TA60198108-198507

main96132-30800×2i18RG..RA63198108-198308

23814PIPE, FUEL DELIVERY

main23814-35030i21RC..RA60198108-198308

main23814-37040i21R#..RA61198408-198507

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35010i21RC..RA60198108-198308

main23841-35050i21R#..RA61198408-198507

main23841-37030i21R#..RA60,61..EUR,GEN,ME,SAA198108-198408

main90072-46148i18RG..RA63198108-198308

9161160818

main91611-60818

9165160620

main91651-60620

9166160814

main91661-60814

10 parts on this diagram · 7 diagrams in section
