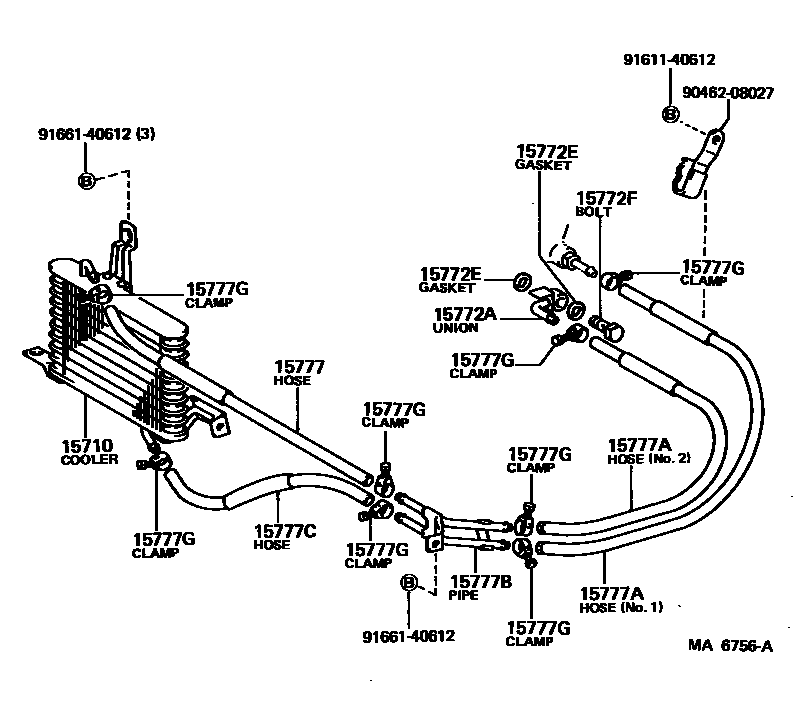

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1

15710COOLER ASSY, OIL

main15710-14010i4AGE..AA63..EUG198308-198507

main15710-41030i5MGE..MA61198112-198208

main15710-43020i5MGE..MA61..GEN,SA,SAA198208-198512

15772AUNION(FOR OIL PIPE)

main90405-10019i5ME..MA61..SDZ; 5MGE..MA61198408-198502

main90405-10020i5ME..MA61..SDZ; 5MGE..MA61198502-198512

main90405-10153i5ME..MA61..SDZ198308-198408

main90405-12004i4AGE..AA63..EUG198308-198507

15772EGASKET(FOR OIL PIPE)

main90430-12009×2i4AGE..AA63..EUG198308-198507

main90430-12018×2i5ME..MA61..SDZ; 5MGE..MA61198512-198512

main90430-14235×2i5ME..MA61..SDZ198308-198408

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i5ME..MA61..SDZ; 5MGE..MA61198408-198512

main90401-14091i5MGE..MA61198112-198408

15777HOSE, OIL COOLER

main15779-14010i4AGE..AA63..EUG198308-198507

15777AHOSE, OIL COOLER

main15776-16010i4AGE..AA63..EUG198308-198507

NO.2

main15777-16020i4AGE..AA63..EUG198308-198507

NO.1

15777BPIPE, OIL COOLER

main15767-16010i4AGE..AA63..EUG198308-198507

15777CHOSE, OIL COOLER

main15778-14010i4AGE..AA63..EUG198308-198507

15777GCLAMP OR CRIP, HOSE

main90460-01001×8i4AGE..AA63..EUG198308-198507

9046208027

main90462-08027

9161140612

main91611-40612

9166140612

main91661-40612

12 parts on this diagram · 4 diagrams in section
