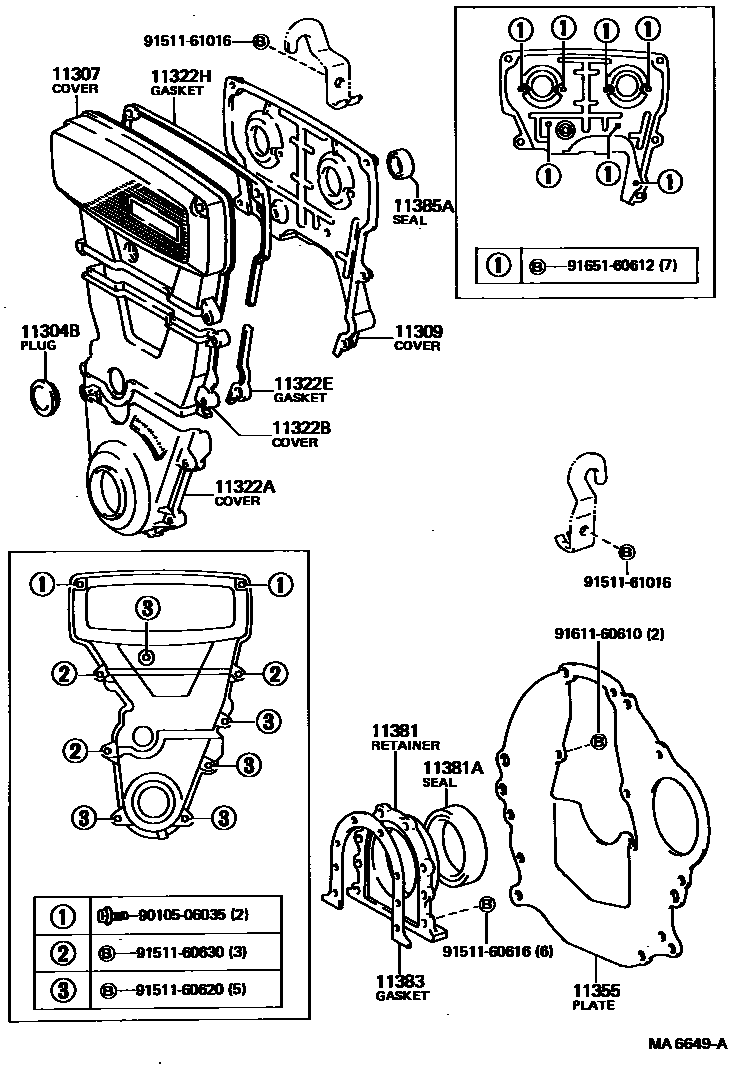

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=34
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11309COVER SUB-ASSY, TIMING BELT, NO.4
11322ACOVER, TIMING BELT, NO.1
11322BCOVER, TIMING BELT, NO.2
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
TC 80 100 12
11383GASKET, ENGINE REAR OIL SEAL RETAINER
11385RETAINER, CAMSHAFT OIL SEAL
11385ASEAL, OIL(FOR CAMSHAFT)
9010506035
main90105-06035
9151160616
main91511-60616
9151160620
main91511-60620
9151160630
main91511-60630
9151161016
main91511-61016
9161160610
main91611-60610
9165160612
main91651-60612
21 parts on this diagram · 9 diagrams in section
