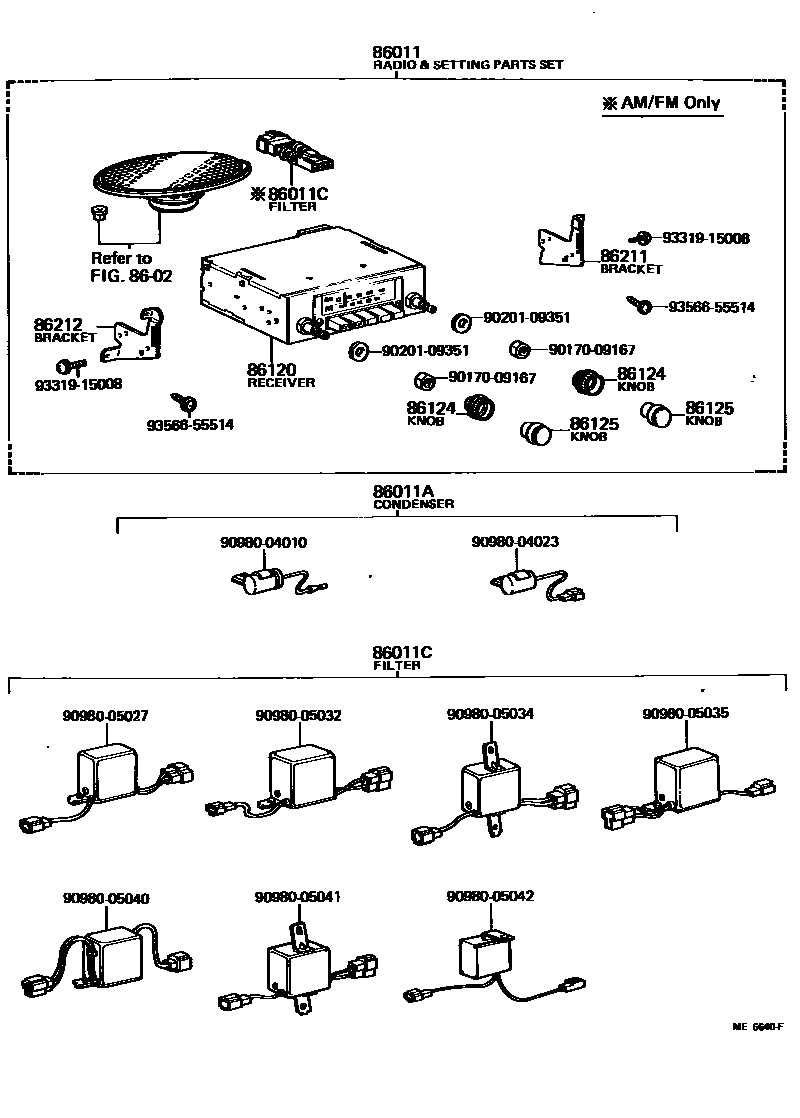

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011RADIO & SETTING PARTS SET

main86011-19215iRA40,TA40..EUG; RA40,TA40..GEN197708-197908

AM,5-BUTTON

main86011-19245iRA40,TA40..EUG; RA40,TA40..GEN197708-197908

AM/FM,5-BUTTON

main86011-19265iRA40,TA40..GEN197708-197908

SW/MW,5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04010×2iRA40,TA40..ARL,GEN; RA40,TA40..EUG; TA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5F..ST..GEN197708-198107

PLUG CONNECTOR; W/RR DEFOGGER

main90980-04023iRA40,TA40..LB..LHD; RA40,TA40..RHD197708-198107

W/RR DEFOGGER

86011CFILTER, NOISE

main90980-05019iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-197908

WIPER,AM/FM RADIO

main90980-05027iRA40,TA40..CP..RHD197708-198107

W/RR DEFOGGER

main90980-05032iRA40,TA40..CP..RHD..EUG197708-198107

LW/MW RADIO

main90980-05034iRA40,TA40..LB197708-198107

W/RR DEFOGGER

main90980-05035iRA40,TA40..CP..LHD197708-198107

W/RR DEFOGGER

main90980-05040iRA40,TA40..CP..LHD..EUG197708-198107

LW/MW RADIO

main90980-05041iRA40,TA40..LB..EUG197708-198107

LW/MW RADIO

main90980-05042iRA40,TA40..EUG197708-198107

LW/MW RADIO

main90980-05049iRA40,TA40..ARL,GEN; RA40,TA40..EUG197908-198107

WIPER,AM/FM RADIO

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86120-14130iRA40,TA40..RHD..EUG; RA40,TA40..RHD..GEN197708-197908

AM,5-BUTTON

main86120-14160iRA40,TA40..EUG; RA40,TA40..GEN197804-197908

AM/FM,5-BUTTON

main86120-14161iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN197908-198107

AM/FM,5-BUTTON

main86120-14180iRA40,TA40..RHD..GEN197908-198107

SW/MW,5-BUTTON

main86120-14190iRA40,TA40..EUG197708-198008

LW/MW,5-BUTTON

main86120-14220iRA40..ARL197804-197908

AM/FM,5-BUTTON

main86120-14240iRA40,TA40..RHD..EUG197908-198107

LW/MW/UKW,5-BUTTON

main86120-14300iRA40,TA40..LHD..GEN197908-198107

SW/MW,5-BUTTON

main86120-14310iRA40,TA40..LHD..EUG197908-198107

LW/MW/UKW,5-BUTTON

main86120-14330iRA40..ARL197908-198107

AM/FM MULTIPLEX,5-BUTTON

main86120-16070iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN197908-198008

AM,5-BUTTON

main86120-16071iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN198008-198107

AM,5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-12010×2iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-197804

AM,AM/FM & LW/MW RADIO

main86124-14050iRA40,TA40..GEN197708-198107

SW/MW,5-BUTTON,LH.

main86124-14060×2iRA40,TA40..ARL,GEN; RA40,TA40..EUG197804-198107

AM,AM/FM & LW/MW RADIO

main86124-14070iRA40,TA40..GEN197708-198107

SW/MW,5-BUTTON,RH.

main86124-14100iRA40..ARL197908-198107

FM MULTIPLEX BALANCE

86125KNOB, RADIO RECEIVER SWITCH

main86125-12011×2iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-197804

main86125-14020×2iRA40,TA40..ARL,GEN; RA40,TA40..EUG197804-198107

86211BRACKET, RADIO, NO.1

main86211-14030iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-198107

RH

86212BRACKET, RADIO, NO.2

main86212-14030iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-198107

LH

9017009167

main90170-09167

9020109351

main90201-09351

9098004010

main90980-04010

9098004023

main90980-04023

9098005027

main90980-05027

9098005032

main90980-05032

9098005034

main90980-05034

9098005035

main90980-05035

9098005040

main90980-05040

9098005041

main90980-05041

9098005042

main90980-05042

9331915008

main93319-15008

9356655514

main93566-55514

22 parts on this diagram · 3 diagrams in section
