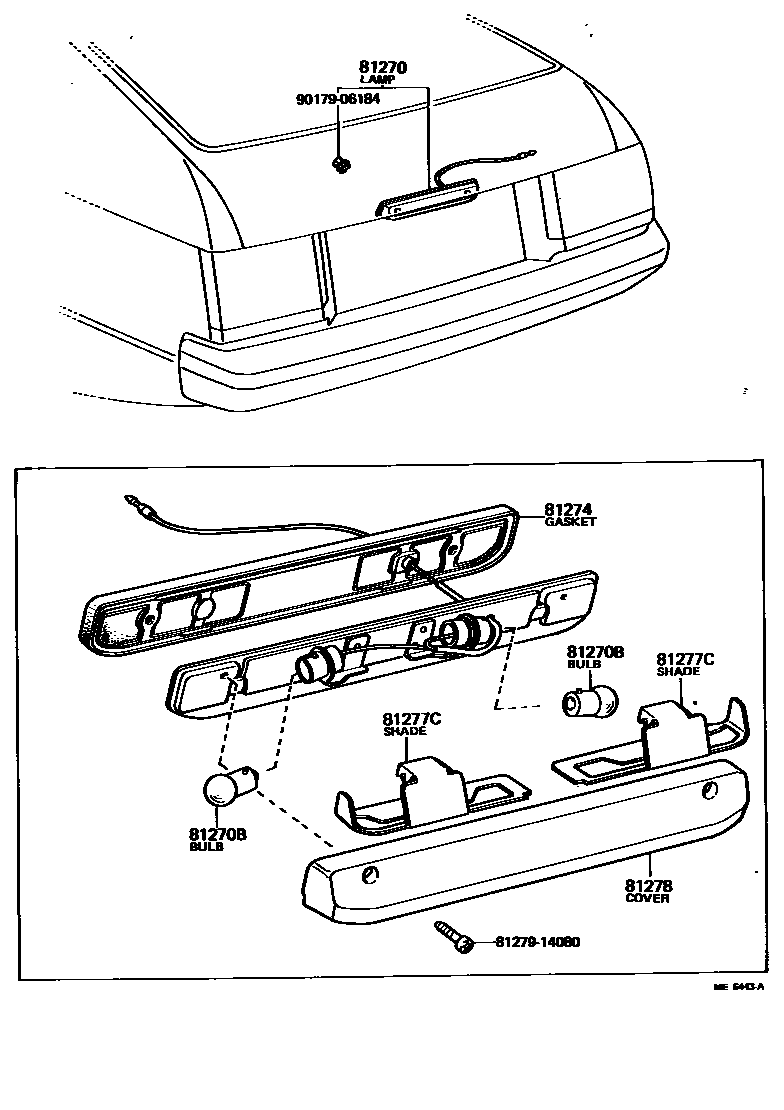

REAR LICENSE PLATE LAMP

0001 1 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-19375iRA40,TA40197708-197908

main81270-19376iRA40,TA40..LB197908-198107

main81270-19665iRA40,TA40..CP197908-198107

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iRA40,TA40..CP197908-198107

12V 5W,12V 5W

main99132-11100×2iRA40,TA40197708-197908

12V 10W,12V 10W

81274GASKET, LICENSE PLATE LAMP BODY

main81274-14080iRA40,TA40197708-197908

main81274-14081iRA40,TA40..LB197908-198107

81277CSHADE, LICENSE PLATE LAMP, RH

main81277-14090iRA40,TA40197708-197908

RH

main81277-14100×2iRA40,TA40..LB197908-198107

main81278-14090iRA40,TA40..CP197908-198107

LH

81278COVER, LICENSE PLATE LAMP

main81276-14080iRA40,TA40197708-197908

main81276-14081iRA40,TA40..LB197908-198107

main81276-30090iRA40,TA40..CP197908-198107

8127914080WASHER, SIDE TURN SIGNAL LAMP

main81279-14080

9017906184

main90179-06184

7 parts on this diagram · 2 diagrams in section
