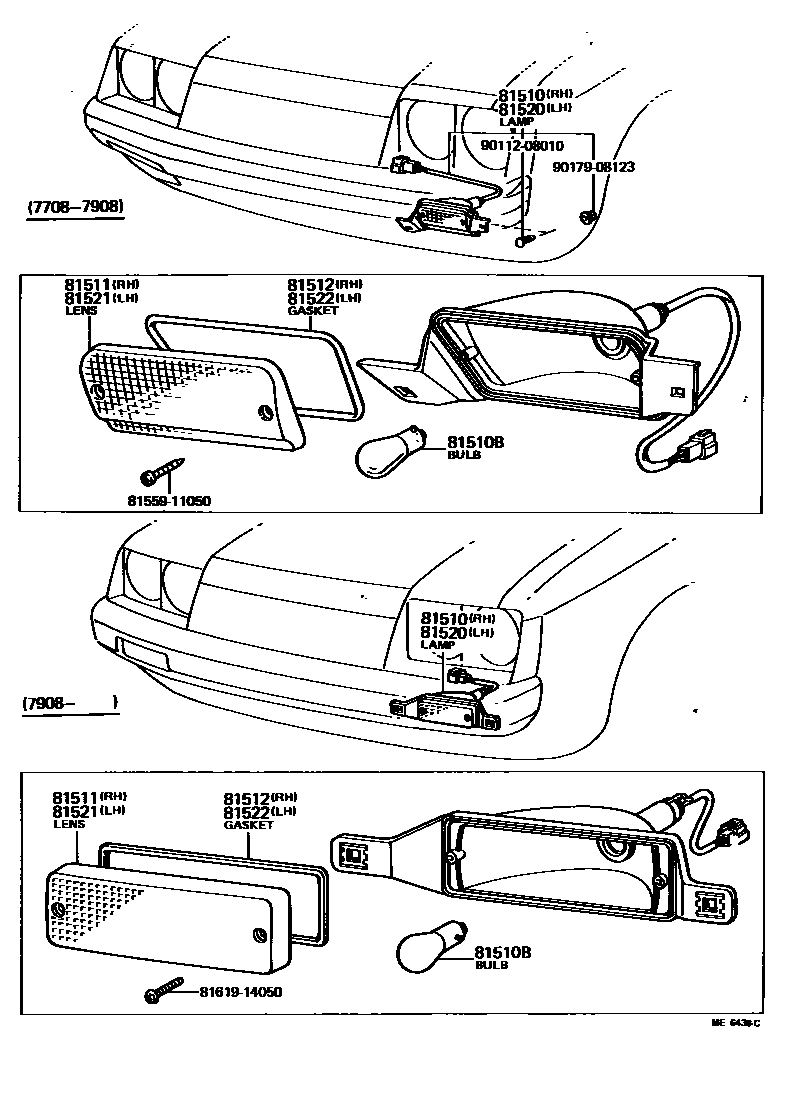

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-14191iRA40,TA40..EUR,GEN197908-198107

main81510-19525iRA40,TA40..(GT,ST,XT)..(ARL,GEN)197908-198107

W/URETHANE BUMPER

main81510-19535iRA40,TA40197708-197908

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iRA40,TA40197708-198107

12V 21W,12V 21W

main99132-11230×2iRA40,TA40..(GT,ST,XT)..(ARL,GEN)197908-198107

12V 23W,12V 23W,W/URETHANE BUMPER

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12280iRA40,TA40..EUR,GEN197908-198107

main81511-14150iRA40,TA40197708-197908

main81511-14170iRA40,TA40..(GT,ST,XT)..(ARL,GEN)197908-198107

W/URETHANE BUMPER

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iRA40,TA40..EUR,GEN197908-198107

main81512-14150iRA40,TA40197708-197908

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-14191iRA40,TA40..EUR,GEN197908-198107

main81520-19525iRA40,TA40..(GT,ST,XT)..(ARL,GEN)197908-198107

W/URETHANE BUMPER

main81520-19535iRA40,TA40197708-197908

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12260iRA40,TA40..EUR,GEN197908-198107

main81521-14150iRA40,TA40197708-197908

main81521-14170iRA40,TA40..(GT,ST,XT)..(ARL,GEN)197908-198107

W/URETHANE BUMPER

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iRA40,TA40..EUR,GEN197908-198107

main81512-14150iRA40,TA40197708-197908

8155911050MOULDING, REAR COMBINATION LAMP, RH

main81559-11050

8161914050

main81619-14050

9011208010

main90112-08010

9017908123

main90179-08123

11 parts on this diagram · 2 diagrams in section
