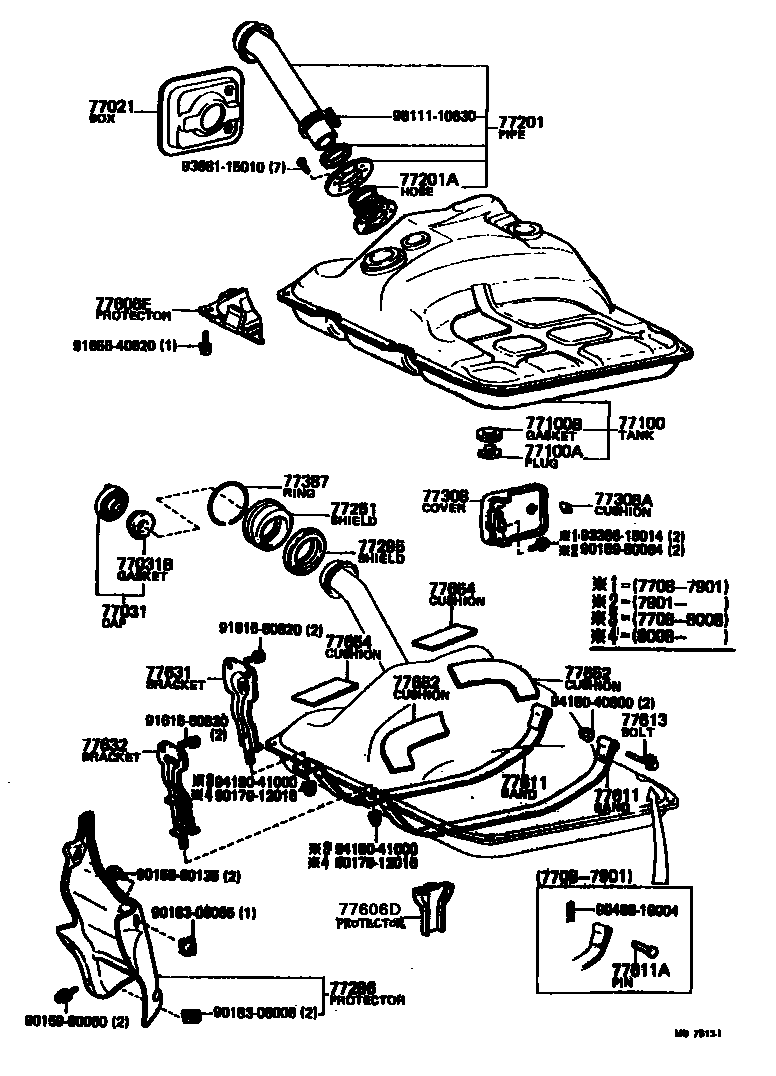

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77021BOX ASSY, FUEL TANK INLET

main61709-14020iRA40,TA40..CP197708-198107

main61709-14030iRA40,TA40..LB197708-198107

77031CAP ASSY, FUEL TANK

main77310-12090iRA40,TA40197911-198107

main77310-14070iRA40,TA40197708-197911

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iRA40,TA40197708-198107

77100TANK ASSY, FUEL

main77001-14925iRA40,TA40197708-198106

main77001-14929iRA40,TA40198106-198107

77100APLUG(FOR FUEL TANK)

main90341-24036iRA40,TA40197708-198107

77100BGASKET(FOR FUEL TANK)

main90430-24047iRA40,TA40197708-198107

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14160iRA40,TA40197708-197911

main77201-14161iRA40,TA40197911-198107

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iRA40,TA40197708-198107

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-14020iRA40,TA40197708-198107

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14030iRA40,TA40197708-198107

77295SHIELD, FUEL FILLER PIPE

main77292-14010iRA40,TA40197708-198107

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14020iRA40,TA40197708-198107

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003×2iRA40,TA40197708-198107

77387RING, FUEL INLET BOX

main77391-14010iRA40,TA40197708-198107

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14020iRA40,TA40198008-198107

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14070iRA40,TA40198008-198107

77611BAND, FUEL TANK

main77601-14040×2iRA40,TA40197708-198107

77611APIN (FOR FUEL TANK BAND)

main90240-08150×2iRA40,TA40197708-197901

77613BOLT, FUEL TANK BAND SET

main77645-14030×2iRA40,TA40197902-198107

main91121-50875×2iRA40,TA40197901-197902

77631BRACKET, FUEL TANK, NO.1

main77613-14020iRA40,TA40197708-198008

main77613-14021iRA40,TA40198008-198107

77632BRACKET, FUEL TANK, NO.2

main77614-14020iRA40,TA40197708-198008

main77614-14021iRA40,TA40198008-198107

77652CUSHION, FUEL TANK, NO.1

main77651-14050×2iRA40,TA40197708-198008

77654CUSHION, FUEL TANK, NO.2

main77652-14060iRA40,TA40198008-198107

120X70

main77652-20010×4iRA40,TA40198008-198107

120X120

9015950064

main90159-50064

9015960060

main90159-60060

9015960135

main90159-60135

9017912016

main90179-12016

9018306006

main90183-06006

9018306065

main90183-06065

9046816004

main90468-16004

9161560820

main91615-60820

9165540620

main91655-40620

9338115010

main93381-15010

9338615014

main93386-15014

9418040800

main94180-40800

9418041000

main94180-41000

9611110630

main96111-10630

37 parts on this diagram · 5 diagrams in section
