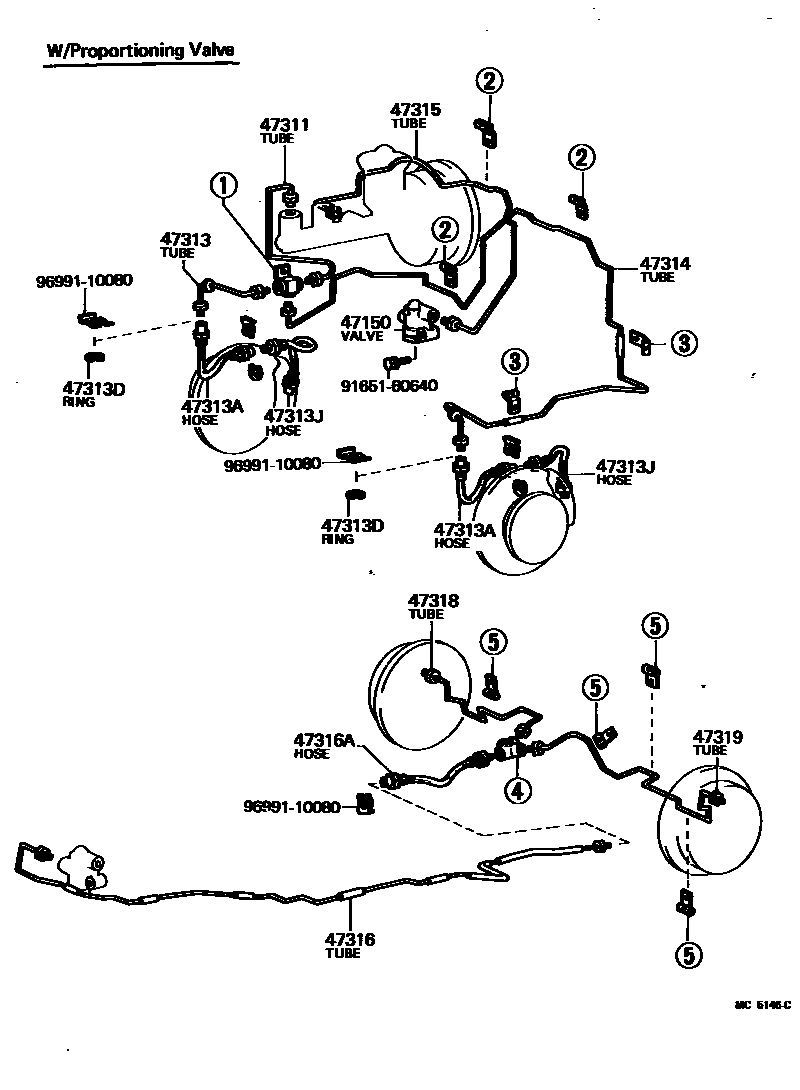

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47150VALVE ASSY, PROPORTIONING

main47150-12031iRA40..GEN; TA40..GT..GEN197708-198107

main47150-12041iTA40..(LT,ST)..GEN197708-198107

47311TUBE, FRONT BRAKE, NO.1

main47311-14110iRA40,TA40..RHD197708-197808

main47311-14140iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN197708-198107

main47311-14150iRA40..SDN197708-198107

main47311-14180iRA40,TA40..RHD197808-198107

47313TUBE, FRONT BRAKE, NO.3

main47312-14080iRA40..SDN197708-197808

main47312-14090iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN197808-198107

W/P&B OR COMBINATION

main47312-14100iRA40..SDN197808-198107

main47313-14025iRA40,TA40..LHD..EUG197708-197808

W/P&B OR COMBINATION

main47313-14050iRA40,TA40..RHD197708-197808

main47313-14060iRA40,TA40..LHD..GEN197708-198107

W/PROPORTIONING VALVE

main47313-20140iRA40,TA40..RHD197808-198107

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02122×2iRA40,TA40197708-198107

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200×4iRA40,TA40197708-198107

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02224×2iRA40,TA40197708-198107

47314TUBE, FRONT BRAKE, NO.4

main47313-14090iRA40,TA40..RHD197808-197908

W/PROPORTIONING VALVE

main47313-14100iRA40,TA40..RHD..GEN197908-198107

W/PROPORTIONING VALVE

main47314-14022iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN197708-198107

main47314-14031iRA40..SDN197708-198107

main47314-14050iRA40,TA40..RHD197708-197808

W/PROPORTIONING VALVE

main47314-14060iRA40,TA40..RHD197708-198107

W/P&B OR COMBINATION VALVE

47315TUBE, FRONT BRAKE, NO.5

main47321-14020iRA40,TA40..LHD..EUG; RA40,TA40..LHD..GEN197708-198107

main47321-14030iRA40..SDN197708-198107

main47321-14040iRA40,TA40..RHD197708-198107

47316TUBE, FRONT BRAKE, NO.6

main47322-14010iTA40;RA40..RHD;RA40..LHD..GEN;RA40..LHD..EUG197708-198107

main47322-14020iRA40..SDN197708-198107

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02394iRA40,TA40197808-197902

main96940-31283iRA40,TA40197708-197808

main96940-32855iRA40,TA40197902-198107

47318TUBE, FRONT BRAKE, NO.8

main47323-14030iRA40..SDN197708-198106

main47323-14031iRA40..SDN198106-198107

main47323-14040iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-198106

main47323-14041iRA40,TA40..ARL,GEN; RA40,TA40..EUG198106-198107

47319TUBE, FRONT BRAKE, NO.9

main47324-14040iRA40..SDN197708-198106

main47324-14041iRA40..SDN198106-198107

main47324-14050iRA40,TA40..ARL,GEN; RA40,TA40..EUG197708-198106

main47324-14051iRA40,TA40..ARL,GEN; RA40,TA40..EUG198106-198107

9165160640

main91651-60640

9699110080

main96991-10080

14 parts on this diagram · 6 diagrams in section
