TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

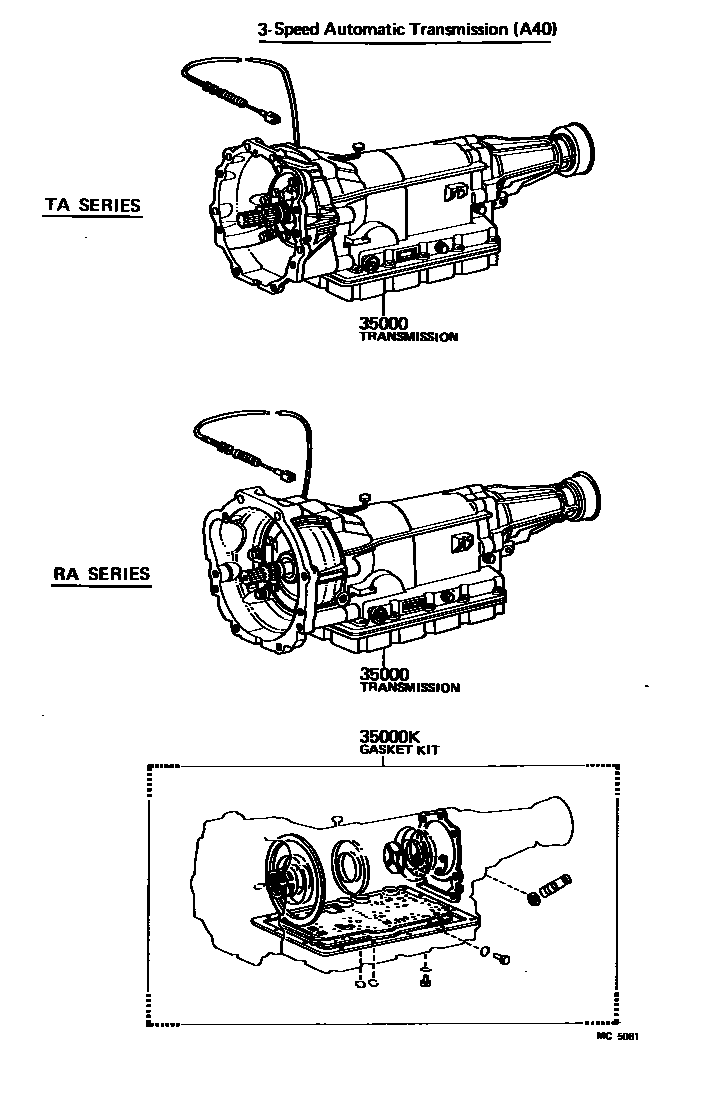

Parts diagram

35000TRANSMISSION ASSY, AUTOMATIC

main35000-14170i197708-197804

SMG R=21:6,DIFF R=4.100

main35000-14171i197804-197908

SMG R=21:6

main35000-14200i197708-197804

SMG R=22:6,DIFF R=4.300

main35000-14201i197804-197908

SMG R=22:6,DIFF R=4.300

main35000-14210i197708-197804

SMG R=20:6

main35000-14260i197708-197804

SMG R=21:6,DIFF R=4.100

main35000-14270i197708-197804

SMG R=22:6,DIFF R=4.300

main35000-14360i197808-197905

SMG R=20:6

main35000-14381i197908-198008

SMG R=22:6

main35000-14382i198008-198107

SMG R=22:6

main35000-14391i197908-198008

SMG R=19:6

main35000-14392i198008-198107

SMG R=19:6

main35000-14431i198003-198008

SMG R=18:6

main35000-14432i198008-198107

SMG R=18:6

main35000-14440i197905-197908

SMG R=19:6

main35000-20541i197908-198008

SMG R=20:6

main35000-20542i198008-198107

SMG R=20:6

main35000-21041i198003-198008

SMG R=20:6

main35000-21042i198008-198107

SMG R=20:6

main35000-21051i197908-198008

SMG R=21:6

main35000-21052i198008-198107

SMG R=21:6

main35000-23131i197804-197808

SMG R=20:6

35000KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22020i197708-197909

main04351-22021i197909-198107

2 parts on this diagram · 1 diagram in section
