Toyota 252220 — FUEL PIPE & CLAMP

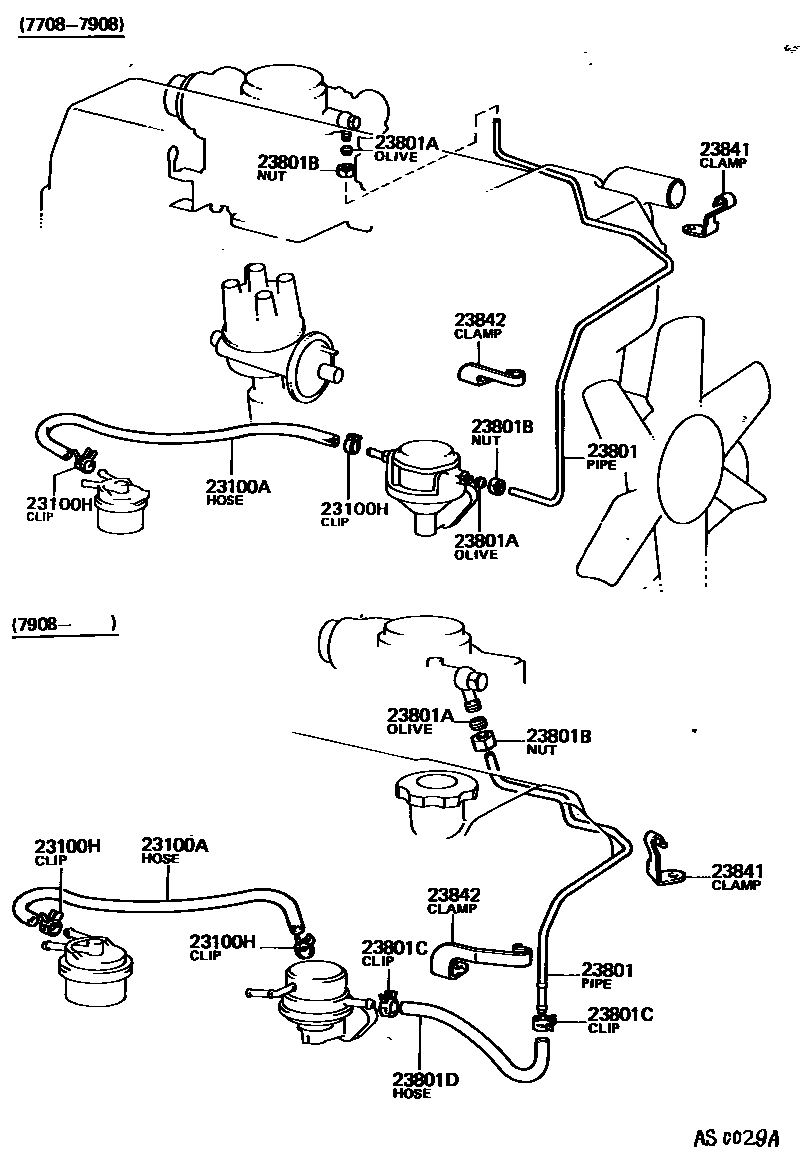

Parts diagram

23100AHOSE, FUEL

23100HCLIP(FOR FUEL HOSE)

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

23801AOLIVE(FOR FUEL PIPE)

23801BNUT, UNION(FOR FUEL PIPE)

23801CCLIP(FOR CARBURETOR FUEL HOSE)

23801DHOSE, FUEL PIPE, NO.1

23841CLAMP, FUEL PIPE(HOSE), NO.1

23842CLAMP, FUEL PIPE(HOSE), NO.2

9 parts on this diagram · 9 diagrams in section

FUEL PIPE & CLAMP for Toyota 252220

This section contains 49 genuine Toyota parts for the FUEL PIPE & CLAMP system of the Toyota 252220. Key components include: CARBURETOR, BELLCRANK SUB-ASSY, ACCELERATOR, HOSE(FOR CARBURETOR), CLIP(FOR CARBURETOR), HOSE(FOR CARBURETOR TO CARBURETOR).
