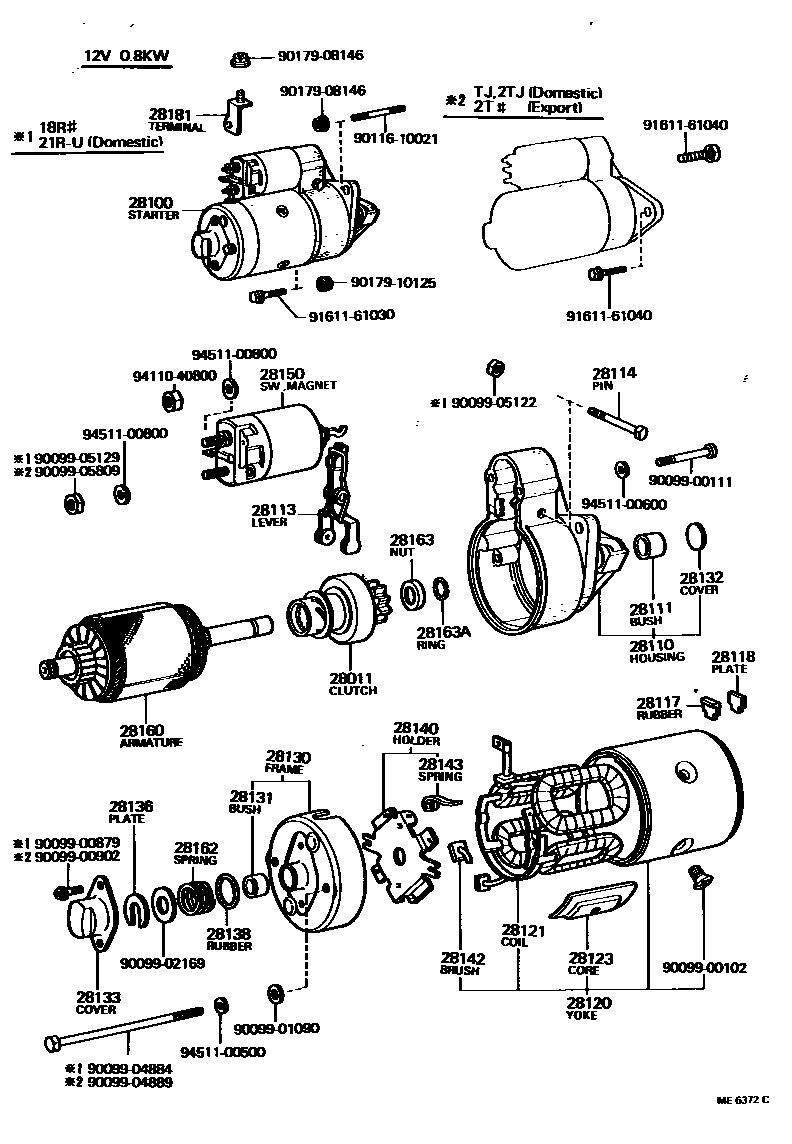

STARTER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW

main28011-22020i2T#..TA40197708-198008

12V 0.8KW

main28011-26042i2T#..TA40198008-198107

12V 1.0KW

main28011-41011i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28011-41020i18R#..RA40..EUR,GEN198008-198107

12V 1.0KW

28100STARTER ASSY

main28100-25021i2T#..TA40197708-197808

12V 1.0KW

main28100-26080i2T#..TA40197708-198008

12V 0.8KW

sub28100-26142

main28100-26150i2T#..TA40197808-198008

12V 1.0KW

sub28100-25032

main28100-26160i2T#..TA40198008-198107

12V 0.8KW

sub28100-27020

main28100-27030i2T#..TA40198008-198107

12V 1.0KW,12V 1.0KW

main28100-33020i18R#..RA40..EUR,GEN197708-197808

12V 1.0KW

main28100-34070i18R,18RG..RA40..EUG197808-197905

12V 1.0KW,12V 1.0KW

sub28100-40061

main28100-36070i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28100-37010i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW,12V 0.8KW

sub28100-37011

28110HOUSING ASSY, STARTER DRIVE

main28110-25011i2T#..TA40197708-198008

12V 0.8KW

main28110-25020i2T#..TA40197708-198008

12V 1.0KW

main28110-27020i2T#..TA40198008-198107

12V 0.8KW

main28110-27030i2T#..TA40198008-198107

12V 1.0KW

main28110-37010i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW

main28110-40045i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28110-40061i18R#..RA40..EUR,GEN197708-198107

12V 1.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i2T#..TA40197908-198008

12V 0.8KW,1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW

main28113-25010i2T#..TA40197708-198008

12V 0.8KW

main28113-41011i18R#..RA40197708-197908

12V 0.8KW,1.0KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i2T#..TA40197708-198008

12V 0.8KW

main28114-41011i18R#..RA40..EUR,GEN197908-198107

12V 1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-25010i2T#..TA40197708-198008

12V 0.8KW,1.0KW

sub28117-25011

sub28118-25011

main28117-41013i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28117-41020i18R#..RA40..EUR,GEN198008-198107

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-25010i2T#..TA40197708-198008

12V 0.8KW

main28118-41013i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i2T#..TA40198008-198107

12V 0.8KW

main28120-25011i2T#..TA40197708-198008

12V 0.8KW

main28120-25021i2T#..TA40197708-197808

12V 1.0KW

main28120-26070i2T#..TA40198008-198107

12V 1.0KW

sub28120-26071

main28120-26150i2T#..TA40197808-198008

12V 1.0KW

main28120-33022i18RC..RA40..SDN197808-197905

12V 1.0KW

main28120-34070i18RC..RA40..SDN197905-198107

12V 1.0KW

main28120-36040i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

28121COIL, STARTER FIELD

main28121-25012i2T#..TA40197708-198008

12V 0.8KW

main28121-34070i2T#..TA40197808-198008

12V 1.0KW

main28121-36040i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28121-41020i18RC..RA40..SDN197808-197905

12V 1.0KW

main28121-42020i18RC..RA40..SDN198004-198107

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012×4i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-197908

12V 0.8KW

main28123-41020×4i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-197908

12V 0.8KW

main28130-26070i2T#..TA40198008-198107

12V 1.0KW

main28130-37010i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW

main28130-41020i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i2T#..TA40197908-198008

12V 0.8KW,1.0KW,STD

main90099-10039i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 1.0KW,U/S 0.3

main90099-10040i2T#..TA40197908-198008

12V 0.8KW,1.0KW,U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i18R#,2T#..RA40,TA40197708-197908

12V 0.8KW,1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW

sub28132-15011

main28132-40010i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW

main28132-41011i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-197908

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i2T#..TA40198008-198107

12V 0.8KW

main28136-40010i18R#..RA40..EUR,GEN198008-198107

12V 1.0KW

main28136-41011i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-197908

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i2T#..TA40198008-198107

12V 0.8KW

main28138-40010i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW

sub28138-26030

main28138-41011i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-197908

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i2T#..TA40198008-198107

12V 0.8KW

main28140-25010i2T#..TA40197708-198008

12V 0.8KW

sub28140-25011

main28140-25020i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW

main28140-26070i2T#..TA40198008-198107

12V 1.0KW

main28140-41012i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

sub28140-41013

28142BRUSH, STARTER

main28142-21010×2i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28142-25010×2i2T#..TA40197708-198008

12V 0.8KW

main28142-25011×2i18R,18RG..RA40..EUG197808-198107

12V 1.0KW,HOLDER

main28142-25020×2i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW,YOKE

main28142-25021×2i18RC..RA40..SDN197808-197905

12V 1.0KW,HOLDER

28143SPRING, STARTER BRUSH

main28143-40010×4i18RC..RA40..SDN197808-197905

12V 1.0KW

main28143-40040×4i18RC..RA40..SDN197905-198107

12V 1.0KW

main90099-17112×4i2T#..TA40198008-198107

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i18R,18RG..RA40;18RC..RA40..ARL197908-198008

12V 0.8KW

sub28150-37010

main28150-15012i18R,18RG..RA40;18RC..RA40..ARL198008-198107

12V 0.8KW

sub28150-37010

main28150-22011i18RC..RA40..SDN197808-197905

12V 1.0KW

main28150-25010i2T#..TA40197708-197807

12V 1.0KW

sub28150-25030

main28150-25020i2T#..TA40197807-198008

12V 1.0KW

main28150-26160i2T#..TA40198008-198107

12V 0.8KW

main28150-27030i2T#..TA40198008-198107

12V 1.0KW

sub28150-27031

sub28199-27031

main28150-33020i18R,18RG..RA40..EUG197808-197905

12V 1.0KW

main28150-34070i18RC..RA40..SDN197905-198107

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-15010i18R,18RG..RA40;18RC..RA40..ARL197908-198107

12V 0.8KW

main28160-22021i2T#..TA40197708-198008

12V 0.8KW,1.0KW

main28160-26070i2T#..TA40198008-198107

12V 1.0KW

sub28160-26071

main28160-40014i18R,18RG..RA40;18RC..RA40..ARL197708-197908

12V 0.8KW

main28160-41020i18R#,2T#..RA40,TA40..EUR,GEN197708-198008

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-15010i2T#..TA40198008-198107

12V 0.8KW

main28162-41011i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-197908

12V 0.8KW

main28162-41022i18R#..RA40..EUR,GEN198008-198107

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i2T#..TA40198008-198107

12V 0.8KW,1.0KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i18R#,2T#..RA40,TA40197708-198008

12V 0.8KW,1.0KW

28181TERMINAL, STARTER

main28181-34010i18R#..RA40197708-198107

12V 0.8KW,1.0KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9009904889

main90099-04889

9009905122

main90099-05122

9009905129

main90099-05129

9009905809

main90099-05809

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161161030

main91611-61030

9161161040

main91611-61040

9411040800

main94110-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

46 parts on this diagram · 6 diagrams in section
