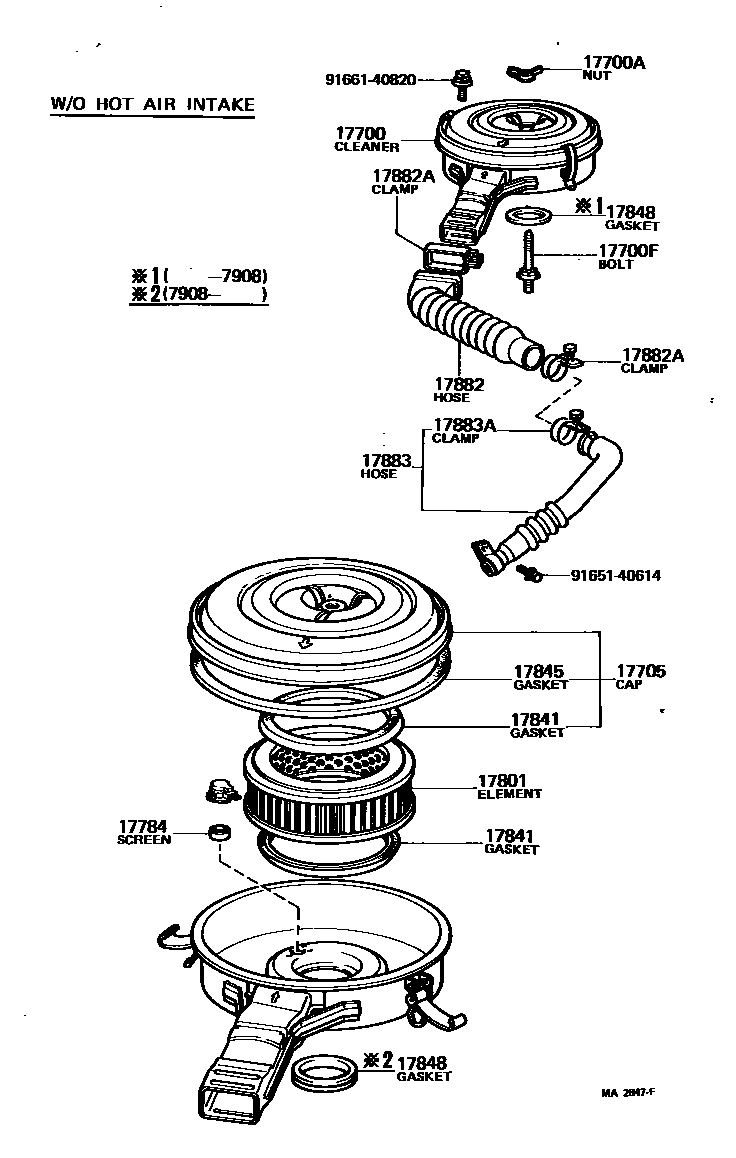

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17700CLEANER ASSY, AIR

main17700-26180i2TB..TA40197708-198107

W/O HOT AIR INTAKE

main17700-26190i2TB..TA40197708-198107

W/HOT AIR INTAKE

main17700-26201i2T..TA40197708-198107

W/O HOT AIR INTAKE

sub17700-26290

main17700-26211i2T..TA40197708-198107

W/HOT AIR INTAKE

main17700-34410i18RC..RA40197708-197908

main17700-34490i2TG..TA40197708-197809

sub17739-34010

sub91666-40632

main17700-34491i2TG..TA40197809-198107

main17700-34540i18R..RA40197908-198107

W/HOT AIR INTAKE

main17700-34550i18R..RA40197908-198107

W/O HOT AIR INTAKE

main17700-34630i18RC..RA40197908-198107

main17700-36190i18R..RA40197708-197908

W/O HOT AIR INTAKE

main17700-36200i18R..RA40197708-197908

W/HOT AIR INTAKE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i18R,18RC..RA40197708-198107

main94271-00600×2i2TB..TA40197708-198107

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06142i2TB..TA40197708-198107

RR CARBURETOR

main90116-06143i18R,18RC..RA40197708-198107

main90116-06222i2T..TA40197708-198107

main90116-06230i2TB..TA40197708-198107

FR CARBURETOR

17705CAP SUB-ASSY, AIR CLEANER

main17705-25012i2T..TA40197708-198008

main17705-25013i2T..TA40198008-198107

sub17705-26080

main17705-26011i2TB..TA40197708-198107

main17705-34190i18R,18RC..RA40197708-198107

main17705-34211i2TG..TA40197708-198107

17784SCREEN, AIR CLEANER

main17784-31010i18R,18RC..RA40197708-198107

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-24010i2TG..TA40197708-198107

main17801-24020×2i2TB..TA40197708-198107

main17801-25010i2T..TA40197708-198107

main17801-34060i18R,18RC..RA40197708-198107

17841GASKET, FILTER ELEMENT

main17841-24011×4i2TB..TA40197708-198107

main17841-24020×2i2TG..TA40197708-198107

sub17841-68010

main17841-31020×2i2T..TA40197708-198107

main17841-33011×2i18R,18RC..RA40197708-198107

17845GASKET, AIR CLEANER CAP

main17845-25010i2T..TA40197708-198107

sub17845-42010

main17845-26010i2TB..TA40197708-198107

main17845-33011i18R,18RC..RA40197708-198107

sub17845-42010

main17845-37010i2TG..TA40197708-198107

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-88110×2i2TG..TA40197708-197908

main17848-88250×2i2TG..TA40197908-198107

main90430-63187×2i2T,2TB..TA40197708-198107

main90430-72003i18R,18RC..RA40197908-198107

main90430-72114i18R,18RC..RA40197708-197908

17882HOSE, AIR CLEANER, NO.2

main17882-27020i2T,2TB..TA40197708-197805

main17882-27030i2T,2TB..TA40197805-198107

main17882-34070i18R,18RC..RA40197708-198107

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i2T,2TB..TA40197708-198107

AIR CLEANER SIDE

main90460-58004i2T,2TB..TA40197812-198101

FENDER SIDE

sub96111-10580

main90460-58013i2T,2TB..TA40197808-197812

FENDER SIDE

sub96111-10580

main96111-10560i2T,2TB..TA40197708-197808

FENDER SIDE

main96111-10570i2T,2TB..TA40198101-198107

FENDER SIDE

17883HOSE, AIR CLEANER, NO.3

main17883-26020i2T,2TB..TA40197708-198107

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-60001i2T,2TB..TA40197708-198107

9165140614

main91651-40614

9166140820

main91661-40820

15 parts on this diagram · 9 diagrams in section
