ENGINE OVERHAUL GASKET KIT

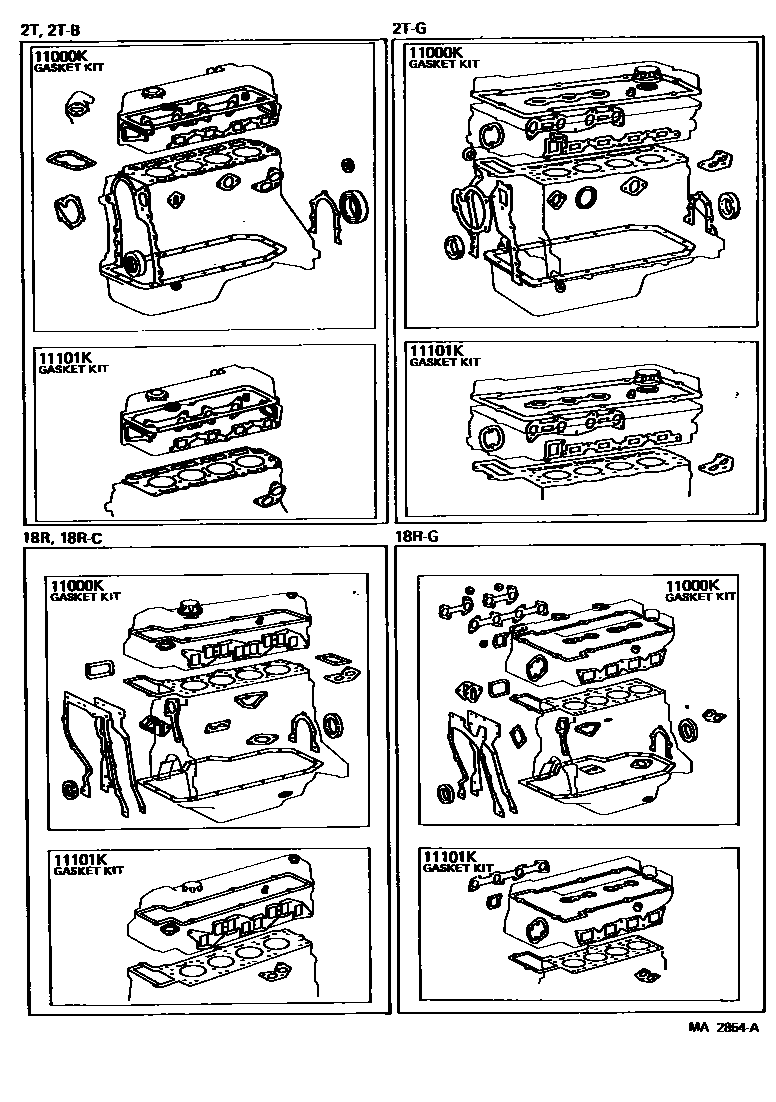

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-26027i197708-197808

main04111-27031i197708-197903

main04111-27032i197903-197908

main04111-27050i197908-197910

main04111-27051i197910-198107

main04111-28011i197808-197810

main04111-28012i197810-197908

main04111-28013i197908-198008

main04111-28014i198008-198101

main04111-28015i198101-198107

main04111-34044i197708-197712

main04111-34045i197712-197809

main04111-34046i197809-198107

main04111-34062i197712-197808

main04111-34080i197708-197712

main04111-34090i197808-198107

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-26026i197708-197808

main04112-27031i197708-197903

main04112-27032i197903-197910

main04112-27033i197910-198107

main04112-28011i197808-197810

main04112-28012i197810-197908

main04112-28013i197908-198008

main04112-28014i198008-198101

main04112-28015i198101-198107

main04112-34034i197708-197809

main04112-34060i197708-198107

main04112-34070i197809-198107

2 parts on this diagram · 1 diagram in section
