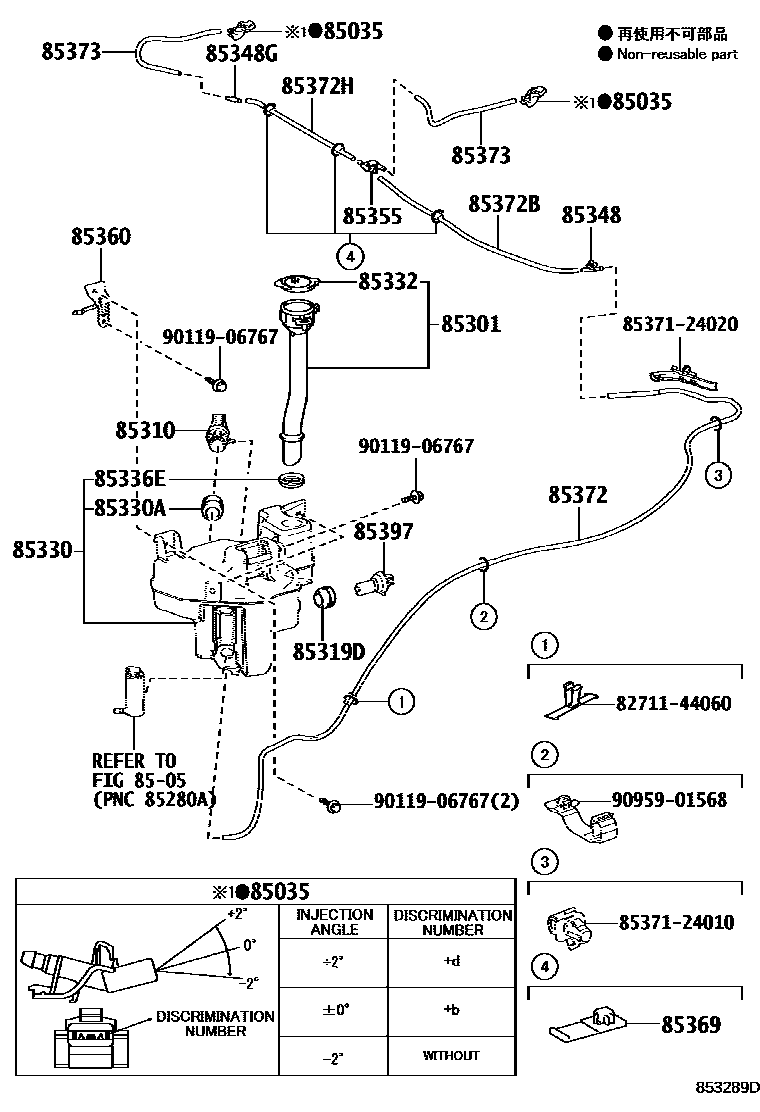

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iUSC10..LHD201903

ANGLE 0

main85381-30230×2iUSC10..ARL201903-202412

ANGLE -2

main85381-30240×2iUSC10..CHI201409-201711

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-24070iUSC10..CHI201409-201711

main85301-24071iUSC10..ARL202009-202412

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010iUSC10..ARL201903-202412

85319DPACKING, FRONT WASHER

main85319-33230iUSC10..CHI201409-201711

85330JAR ASSY, WINDSHIELD WASHER

main85355-24040iUSC10..CHI201409-201711

main85355-24070iUSC10..ARL201903-202412

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iUSC10..CHI201409-201711

85332CAP, WINDSHIELD WASHER JAR

main85316-24071iUSC10..ARL202009-202412

main85316-24170iUSC10..CHI201409-201711

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iUSC10..LHD201903

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050iUSC10..CHI201409-201711

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iUSC10..CHI201409-201711

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iUSC10..CHI201409-201711

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-24090iUSC10..CHI201409-201711

85369CLAMP

main82711-3A540×3iUSC10..CHI201409-201711

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iUSC10..CHI201409-201711

L=1680

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iUSC10..CHI201409-201711

L=1450(*H,L=470)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iUSC10..CHI201409-201711

L=1450(*H,L=310)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62087×2iUSC10..CHI201409-201711

L=290

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iUSC10..CHI201409-201711

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

8537124010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-24010

8537124020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-24020

9011906767

main90119-06767

9095901568

main90959-01568

24 parts on this diagram · 1 diagram in section
