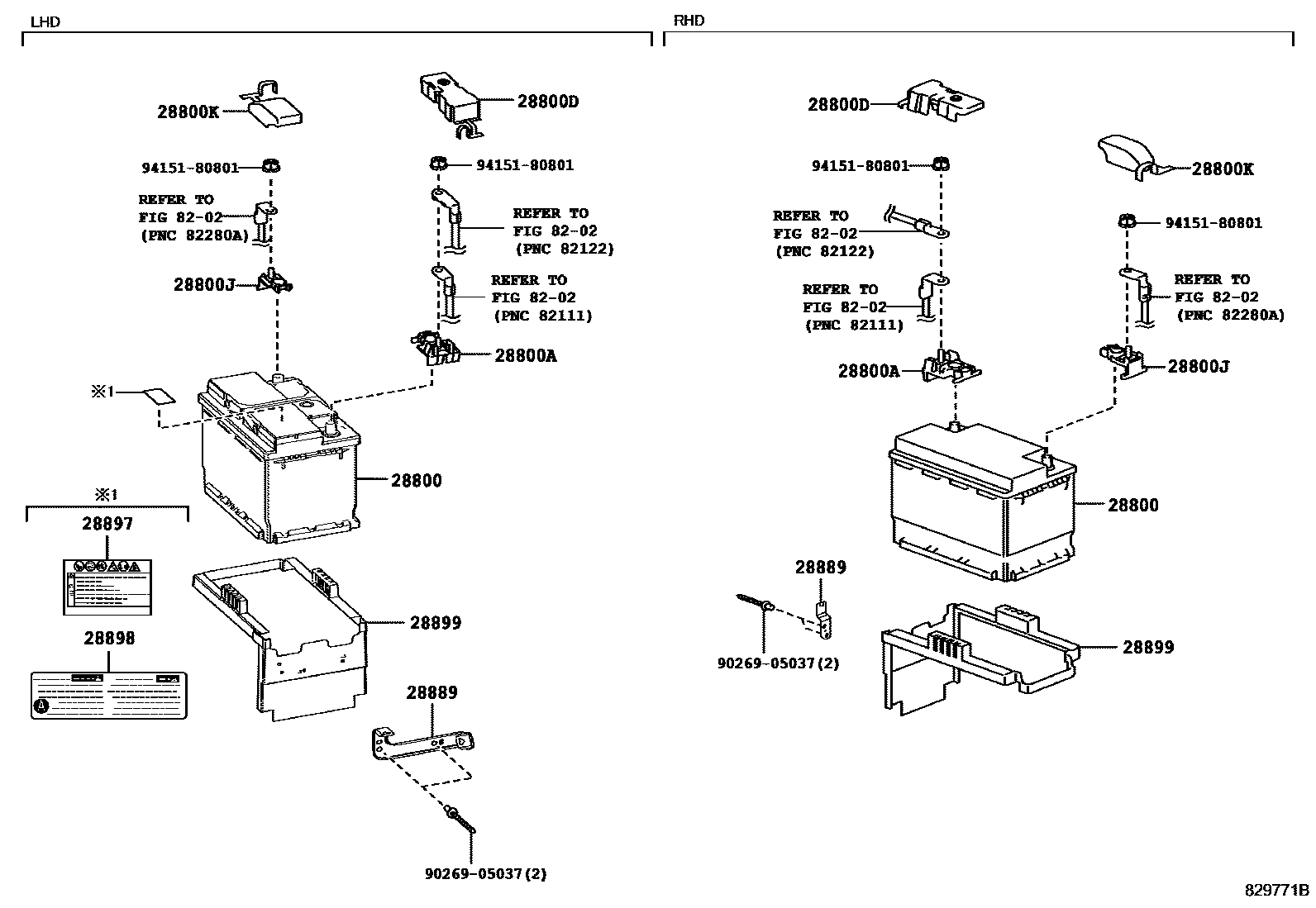

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38160i2URGSE..USC10..ARL201903-202206

LN3

main28800-38161i2URGSE..USC10..ARL202207-202403

LN3

main28800-38162i2URGSE..USC10..ARL202404-202412

LN3

main28800-38170i2URGSE..USC10..LHD201903-202206

LN3R

main28800-38171i2URGSE..USC10..LHD202207-202403

LN3R

main28800-38172i2URGSE..USC10..LHD202404

LN3R

28800ATERMINAL, BATTERY POSITIVE

main82675-24010i2URGSE..USC10..ARL201409-201902

main82675-24030i2URGSE..USC10..GCC,GEN201409-201902

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24190i2URGSE..USC10..CHI201409-201711

28800JTERMINAL, BATTERY NEGATIVE

main82675-24020i2URGSE..USC10..ARL201409-201902

main82675-24040i2URGSE..USC10..GCC,GEN201409-201902

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-24200i2URGSE..USC10..ARL,GCC,GEN201409-201902

28889BRACKET, BATTERY WIRE CLAMP

main82715-24340i2URGSE..USC10..LHD201903

main82715-24350i2URGSE..USC10..ARL201903-202412

28897PLATE, BATTERY CAUTION

main28897-31010i2URGSE..USC10..CHI201409-201711

28898PLATE, BATTERY

main28897-36030i2URGSE..USC10..GCC201609-201902

28899INSULATOR, BATTERY

main28899-38050i2URGSE..USC10..CHI201409-201711

8202WIRING & CLAMP

→ Go to FIG 82-02

9026905037

main90269-05037

9415180801

main94151-80801

12 parts on this diagram · 1 diagram in section
