FRONT SEAT & SEAT TRACK

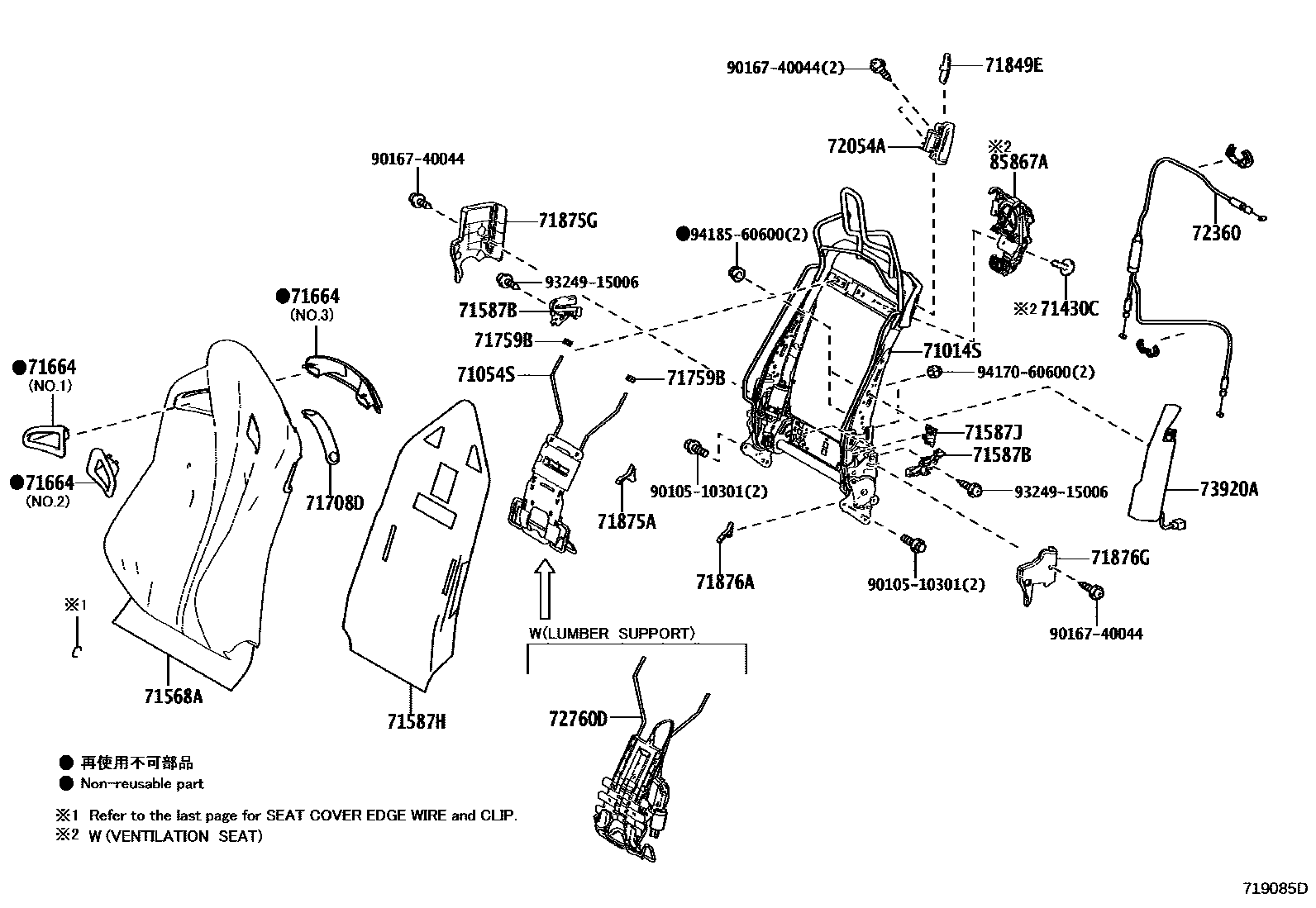

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-24090i201409-201704
sub71014-24091
main71014-24091i201705-201902
sub71014-24110
main71014-24110i201903-202412
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-76010i201409-202412
71430CCLIP
main90467-08186-C0i201409-201610
SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK
sub90467-08186
main90467-08186-C0i201409-201610
BLACK
sub90467-08186
main90467-08186-C0i201409-201610
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK
sub90467-08186
main90467-08186-C0i201409-201610
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK
sub90467-08186
main90467-08186-C3i201610-201904
BLACK
sub90467-08186
main90467-08186-C3i201610-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK
sub90467-08186
main90467-08186-C3i201610-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK
sub90467-08186
main90467-08186-C3i201610-201902
SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),BLACK
sub90467-08186
main90467-08188i201905-202412
71568APAD, FRONT SEATBACK W/COVER, LH
main71402-24160-23i201409-201711
BLACK/ECRU,TRIM2#
main71402-24160-A3i201409-201711
WHITE/BLACK,TRIM0#
main71402-24160-B2i201409-201711
MOON STONE,TRIM1#
main71402-24160-D2i201409-201711
RED/BLACK,TRIM3#
main71402-24161-42i201903-202501
BLACK/WHITE/ECRU,TRIM0#
main71402-24161-43i201903-202501
BLACK/RED/RED,TRIM3#
main71402-24161-44i201903-202501
BLACK/BLACK/ECRU,TRIM2#
main71402-24170-21i201409-201805
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24170-21i201409-201805
BLACK,TRIM2#
main71402-24170-21i201409-201805
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24170-22i201805-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24170-22i201805-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24170-22i201805-201902
BLACK,TRIM2#
main71402-24170-23i201711-201902
BLACK/ORANGE,TRIM4#
main71402-24170-A3i201409-201805
WHITE,TRIM0#
main71402-24170-A3i201409-201805
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
main71402-24170-A3i201409-201805
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
main71402-24170-A4i201805-201902
WHITE,TRIM0#
main71402-24170-A4i201805-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
main71402-24170-A4i201805-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
main71402-24170-D2i201409-201805
RED,TRIM3#
main71402-24170-D2i201409-201805
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
main71402-24170-D2i201409-201805
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
main71402-24170-D3i201805-201902
RED,TRIM3#
main71402-24170-D3i201805-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
main71402-24170-D3i201805-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
main71402-24171-40i201903-202501
BLACK/WHITE/ECRU,TRIM0#
main71402-24171-41i201903-202501
BLACK/RED/RED,TRIM3#
main71402-24171-42i201903-202501
BLACK/BLACK/ECRU,TRIM2#
main71402-24180-C4i201409-201805
BLACK,TRIM2#
main71402-24180-C5i201805-201902
BLACK,TRIM2#
main71402-24240-C0i202501
BLACK,TRIM3#
main71402-24260-C0i202501
BLACK,TRIM3#
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-24050i201409-202412
OUTER
main71587-24060i201409-202412
INNER
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-24070i201409-202412
OUTER
main71587-24080i201409-202412
INNER
71587HPROTECTOR, FRONT SEATBACK EDGE
main71587-30060i201409-202412
71587JPROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201409-201902
71664GUIDE, SEAT BELT
main73187-24060-B0i201409-201902
SILVER,TRIM0#,2#,3#,4#,NO.1:REFER ILLUST.
main73187-24060-B0i201409-201902
SILVER,TRIM0#,1#,2#,3#,8#,NO.1:REFER ILLUST.
main73187-24060-B0i201409-201902
SILVER,TRIM0#,1#,2#,3#,NO.1:REFER ILLUST.
main73187-24060-B0i201903-202412
SILVER,TRIM0#,2#,3#,8#,NO.1:REFER ILLUST.
main73187-24070-B0i201409-201902
SILVER,TRIM0#,1#,2#,3#,NO.2:REFER ILLUST.
main73187-24070-B0i201409-201902
SILVER,TRIM0#,2#,3#,4#,NO.2:REFER ILLUST.
main73187-24070-B0i201409-201902
SILVER,TRIM0#,1#,2#,3#,8#,NO.2:REFER ILLUST.
main73187-24070-B0i201903-202412
SILVER,TRIM0#,2#,3#,8#,NO.2:REFER ILLUST.
main73187-24080-B0i201409-201902
SILVER,TRIM0#,2#,3#,4#,NO.3:REFER ILLUST.
main73187-24080-B0i201409-201902
SILVER,TRIM0#,1#,2#,3#,NO.3:REFER ILLUST.
main73187-24080-B0i201409-201902
SILVER,TRIM0#,1#,2#,3#,8#,NO.3:REFER ILLUST.
main73187-24080-B0i201903-202412
SILVER,TRIM0#,2#,3#,8#,NO.3:REFER ILLUST.
71708DSTRAP SUB-ASSY, SEAT COVER, LH
main71788-24020-A0i201409-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
sub71788-24020
main71788-24020-A0i201409-201902
SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
sub71788-24020
main71788-24020-A0i201409-201902
WHITE,TRIM0#
sub71788-24020
main71788-24020-A0i201409-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),WHITE,TRIM0#
sub71788-24020
main71788-24020-B0i201409-201711
MOON STONE,TRIM1#
sub71788-24020
main71788-24020-C0i201409-201902
BLACK,TRIM2#
sub71788-24020
main71788-24020-C0i201409-201902
BLACK,TRIM2#,4#
sub71788-24020
main71788-24020-C2i201903-202501
BLACK,TRIM0#,2#,3#
sub71788-24020
main71788-24020-D0i201409-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
sub71788-24020
main71788-24020-D0i201409-201902
RED,TRIM3#
sub71788-24020
main71788-24020-D0i201409-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
sub71788-24020
main71788-24020-D0i201409-201902
SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM),RED,TRIM3#
sub71788-24020
main71788-24020-D2i202501
RED,TRIM3#
sub71788-24020
71759BHOOK, FRONT SEATBACK
main71759-47011i201409-202412
71849CAP, SEAT ADJUSTER COVER, LH
main71848-76010i201409-202412
71849ECAP, RECLINING REMOTE CONTROL, LH
main71849-24010-C0i201903-202111
BLACK,TRIM0#,2#,30,31,32,8#
main71849-24010-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#,8#
main71849-24010-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#
main71849-24010-C0i201409-201902
BLACK,TRIM0#,2#,3#,4#
main71849-24010-C0i202111-202501
BLACK,TRIM0#,2#,3#,8#
main71849-24010-D0i201903-202111
RED,TRIM32
main71849-24010-D0i202501
RED,TRIM3#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-24090-C0i201409-201902
BLACK,TRIM0#,2#,3#,4#
main71875-24090-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#,8#
main71875-24090-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#
main71875-24090-C0i201903-202412
BLACK,TRIM0#,2#,3#,8#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-24110i201409-202412
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-24040-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#,8#
main71876-24040-C0i201409-201902
BLACK,TRIM0#,2#,3#,4#
main71876-24040-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#
main71876-24040-C0i201903-202412
BLACK,TRIM0#,2#,3#,8#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-24060i201409-202412
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-24020-C0i201409-201902
BLACK,TRIM0#,2#,3#,4#
main72054-24020-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#,8#
main72054-24020-C0i201409-201902
BLACK,TRIM0#,1#,2#,3#,4#
main72054-24020-C0i201903-202111
BLACK,TRIM0#,2#,30,31,32,8#
main72054-24020-C0i202111-202501
BLACK,TRIM0#,2#,3#,8#
main72054-24020-D0i201903-202111
RED,TRIM32
main72054-24020-D0i202501
RED,TRIM3#
72360CABLE ASSY, RECLINING ADJUSTER EQUALIZING
main72360-24010i201409-202412
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-76010i201409-201902
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-24030i201409-201410
sub73920-53030
main73920-53030i201411-202412
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-53020i201409-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM)
main85867-53020i201409-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM)
main85867-53020i201409-201902
SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM)
main85867-53020i201903-202412
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-53030i201409-201902
CHILE SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM)
main85867-53030i201409-201902
MIDDLE & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION SYSTEM)
main85867-53030i201409-201902
SEAT HEATER-WITH & WITH(SEAT VENTILATION SYSTEM)
main85867-53030i201903-202412
9010510301
main90105-10301
9016740044
main90167-40044
9324915006
main93249-15006
9417060600
main94170-60600
9418560600
main94185-60600

28 parts on this diagram · 7 diagrams in section
