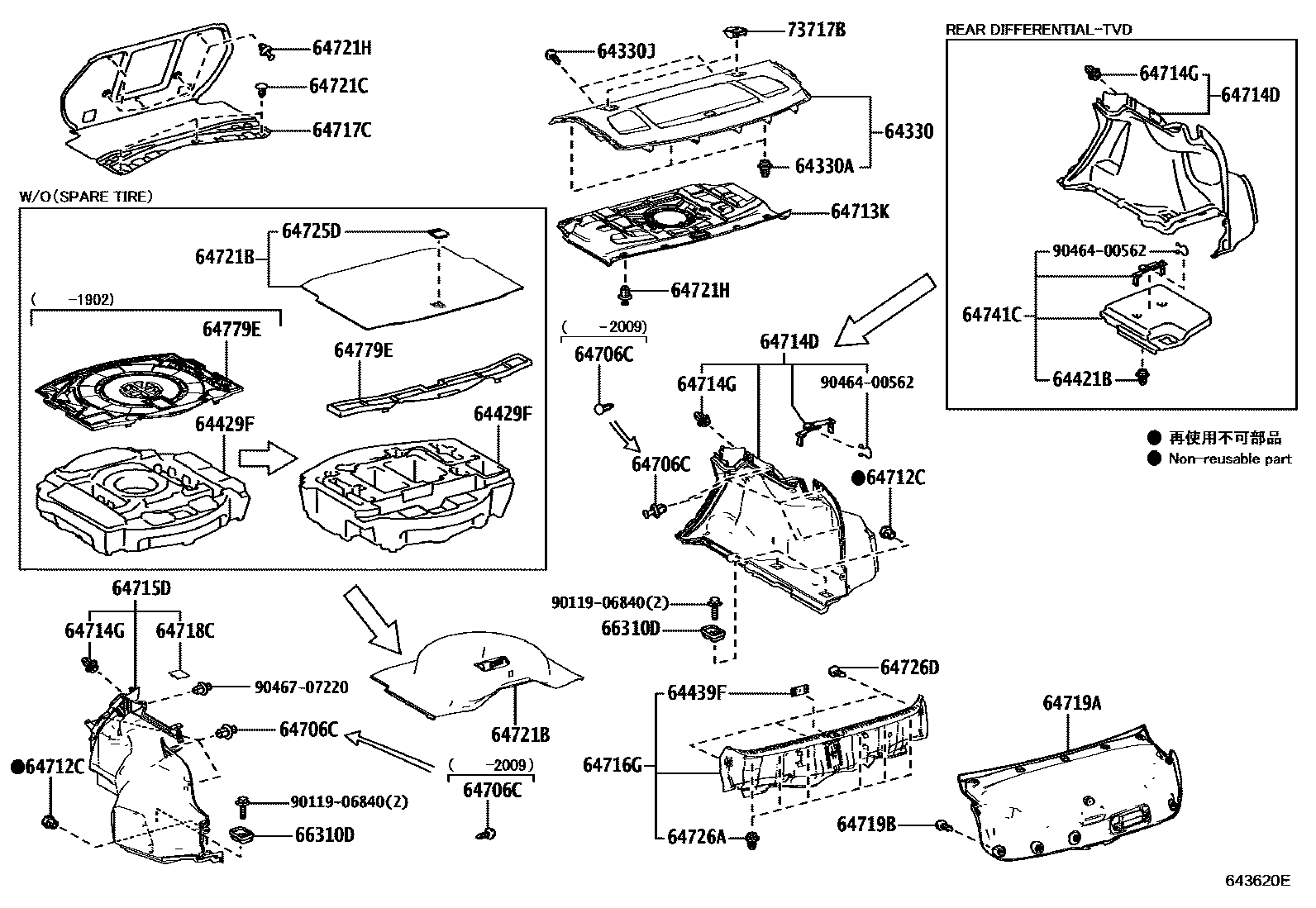

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64330PANEL ASSY, PACKAGE TRAY TRIM
AUDIO-EMV & DVD & 17SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#; AUDIO-EMV & DVD & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK
BLACK
64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)
64429FBOX, LUGGAGE COMPARTMENT TRIM
TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT)
TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT)
TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT)
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,8#; BLACK,TRIM0#,2#,3#,4#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,2#,3#
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL,BLACK,TRIM0#,1#,2#,3#; REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL,BLACK,TRIM0#,2#,3#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,8#; BLACK,TRIM0#,2#,3#,4#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-24120-C0supersedes 64716-24090-C0iUSC10..ARL; USC10..CHI; USC10..GCC; USC10..GEN201409-201602
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,2#,3#,4#; BRUNEI SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#,4#; INDONESIA SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#,4#; MALAYSIA SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#,4#; SINGAPORE SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#; TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#; TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM0#,1#,2#,3#,4#
64717CCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,8#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM3#,8#
SEAT COVER MATERIAL-ALCANTARA,BLACK,TRIM8#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,8#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,8#; BLACK,TRIM0#,2#,3#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK
BLACK
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#; BRUNEI SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#; INDONESIA SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#; MALAYSIA SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#; SINGAPORE SPEC&SPARE TIRE-TEMPORARY(225/40ZR19),BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#; TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#; TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM0#,1#,2#,3#
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK
BLACK
64721HCLIP(LUGGAGE COMPARTMENT)
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT)
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
BLACK
BLACK
64741CBOX, DECK SIDE TRIM, RH
BLACK,TRIM0#,2#,3#
REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL,BLACK,TRIM0#,1#,2#,3#; REAR DIFFERENTIAL-TORQUE VECTORING DIFFERENTIAL,BLACK,TRIM0#,2#,3#
64779ETRAY, SPARE WHEEL COVER
BLACK,TRIM0#,1#,2#,3#,4#; TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,8#; TAIWAN SPEC&SPARE TIRE-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM0#,1#,2#,3#
66310DHOOK ASSY, ROPE
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#; BLACK,TRIM0#,1#,2#,3#,8#; BLACK,TRIM0#,2#,3#,4#
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,8#
9011906840
main90119-06840
9046400562
main90464-00562
9046707220
main90467-07220
30 parts on this diagram · 1 diagram in section
