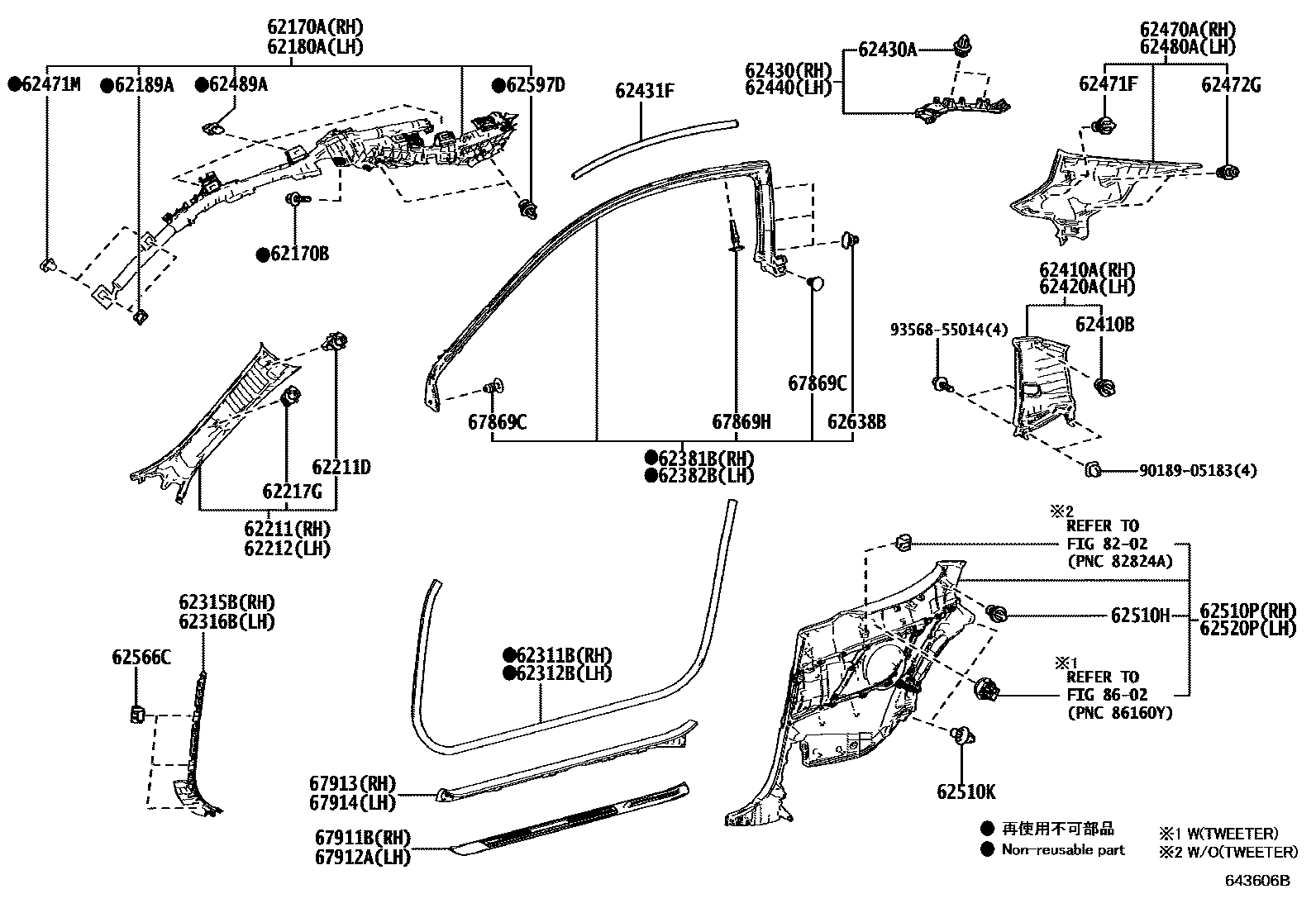

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
62410BCLIP
62420AGARNISH ASSY, CENTER PILLER, LH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
62430ACLIP, ROOF SIDE RAIL GARNISH
62431FGARNISH, ROOF SIDE RAIL
62440GARNISH ASSY, ROOF SIDE RAIL, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471MCLIP
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
62489ACLIP, ROOF SIDE INNER GARNISH
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62510KCLIP(FOR QUARTER TRIM FRONT PANEL)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
BLACK/BLACK,TRIM8#
BLACK/BLACK/RED,TRIM30,31
BLACK/BLACK/RED,TRIM3#
BLACK/RED/RED,TRIM32
BLACK/RED,TRIM3#
BLACK/ECRU,TRIM0#,1#,2#
BLACK/ECRU,TRIM0#,2#
BLACK/ORANGE,TRIM4#
BLACK/RED,TRIM3#
BLACK/ECRU,TRIM0#,1#,2#
BLACK/ECRU,TRIM0#,2#
BLACK/BLACK/RED,TRIM3#
BLACK/BLACK/BLACK,TRIM8#
BLACK/BLACK,TRIM3#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
BLACK/BLACK,TRIM8#
BLACK/BLACK/RED,TRIM3#
BLACK/BLACK/RED,TRIM30,31
BLACK/RED/RED,TRIM32
BLACK/RED,TRIM3#
BLACK/ECRU,TRIM0#,2#
BLACK/ECRU,TRIM0#,1#,2#
BLACK/ORANGE,TRIM4#
BLACK/RED,TRIM3#
BLACK/ECRU,TRIM0#,1#,2#
BLACK/BLACK,TRIM3#
BLACK/ECRU,TRIM0#,2#
BLACK/BLACK/RED,TRIM3#
BLACK/BLACK/BLACK,TRIM8#
62566CCLAMP, COWL SIDE TRIM
62597DCLIP
62638BCLIP
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
8202
8602
9018905183
main90189-05183
9356855014
main93568-55014
44 parts on this diagram · 1 diagram in section
