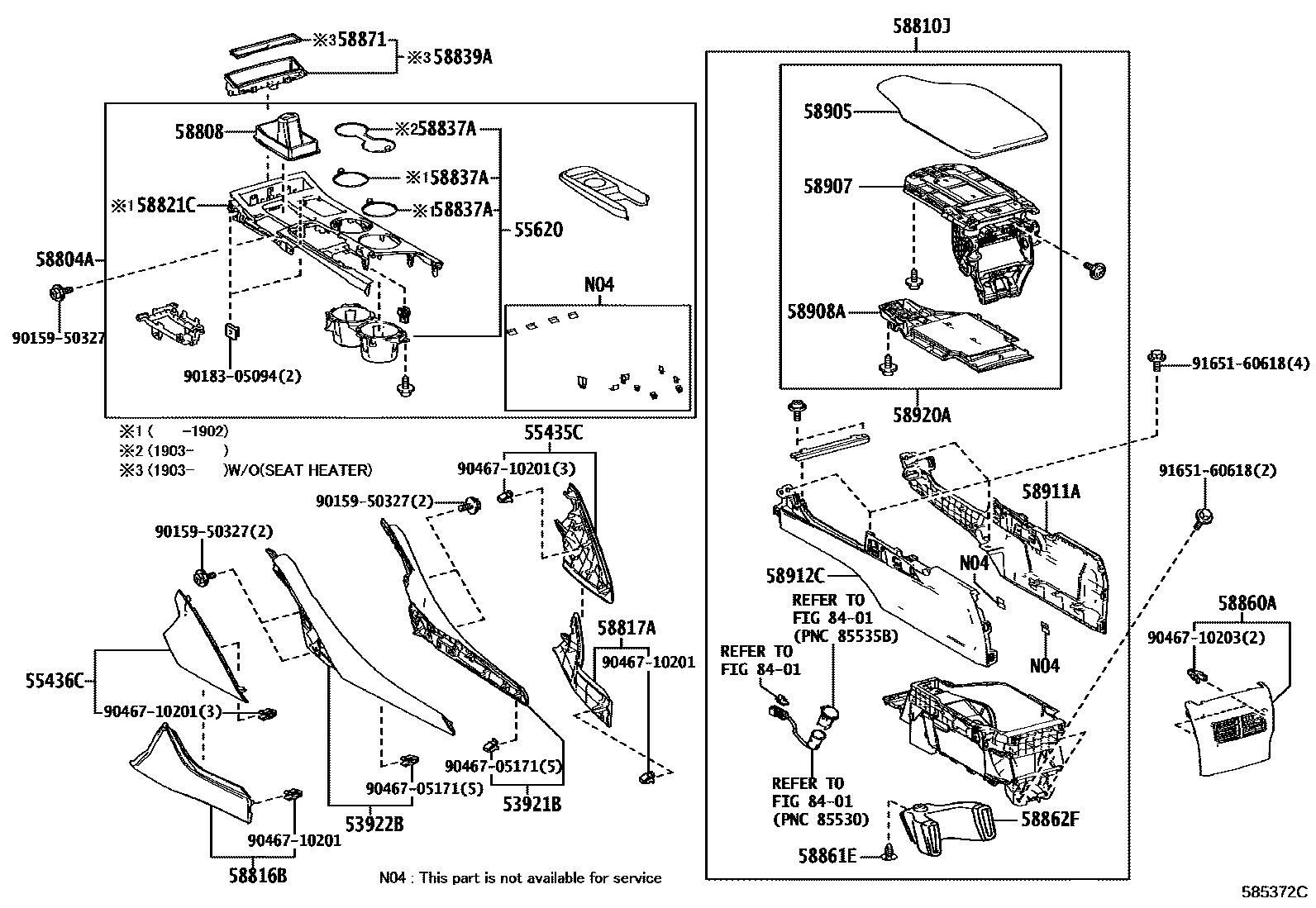

CONSOLE BOX & BRACKET
53921BGARNISH, FRONT PANEL, RH
BLACK/BLUE,TRIM8#
BLACK/RED,TRIM3#
BLACK/ORANGE,TRIM4#
BLACK/BLACK,TRIM2#
BLACK/MOON STONE,TRIM1#
BLACK/WHITE,TRIM0#
BLACK/RED/RED,TRIM3#
BLACK/RED/RED,TRIM32
BLACK/BLUE/BLACK,TRIM8#
BLACK/BLACK/ECRU,TRIM2#
BLACK/RED/BLACK,TRIM30,31
BLACK/RED/BLACK,TRIM30,31,32
BLACK/RED/BLACK,TRIM3#
BLACK/WHITE/BLACK,TRIM0#
53922BGARNISH, FRONT PANEL, LH
BLACK/BLUE,TRIM8#
BLACK/RED,TRIM3#
BLACK/ORANGE,TRIM4#
BLACK/BLACK,TRIM2#
BLACK/MOON STONE,TRIM1#
BLACK/WHITE,TRIM0#
BLACK/RED/RED,TRIM3#
BLACK/RED/RED,TRIM32
BLACK/BLUE/BLACK,TRIM8#
BLACK/BLACK/ECRU,TRIM2#
BLACK/RED/BLACK,TRIM3#
BLACK/RED/BLACK,TRIM30,31,32
BLACK/RED/BLACK,TRIM30,31
BLACK/WHITE/BLACK,TRIM0#
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK/BLUE,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#
BLACK/BLUE,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#
BLACK/BLUE,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#
BLACK/ORANGE,TRIM4#
BLACK/BLUE,TRIM0#,1#,2#,3#,8#
BLACK/BLUE,TRIM0#,2#
BLACK/RED,TRIM3#
BLACK/BLUE,TRIM0#,2#
BLACK/RED,TRIM3#
BLACK/RED,TRIM3#
BLACK/BLUE,TRIM0#,2#,8#
BLACK/RED,TRIM3#
BLACK/BLUE,TRIM0#,2#,8#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/RED,TRIM3#
BLACK/BLUE,TRIM0#,1#,2#,3#
BLACK/BLUE,TRIM0#,2#,3#
BLACK/BLUE,TRIM0#,1#,2#,3#,8#
BLACK/BLUE,TRIM0#,2#
BLACK/BLUE,TRIM0#,2#,8#
BLACK/ORANGE/BLUE,TRIM4#
58810JBOX ASSY, CONSOLE
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,30,31,8#
BLACK/RED,TRIM32
BLACK/RED,TRIM3#
BLACK,TRIM0#,2#,3#,8#
BLACK/BLACK,TRIM0#,2#,3#,8#
BLACK/BLACK,TRIM0#,1#,2#,3#,8#
BLACK/BLACK,TRIM0#,2#,30,31,8#
BLACK/BLACK,TRIM0#,2#,3#,8#
BLACK/RED,TRIM32
58816BINSERT, CONSOLE BOX
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
58821CPANEL, CONSOLE, UPPER
58837APAD, CONSOLE BOX SILENCER, NO.2
58839ACOVER, CONSOLE BOX HOLE
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
58861ECLIP, CONSOLE BOX DUCT
BLACK
58862FDUCT, CONSOLE BOX, NO.2
58871CUSHION, CONSOLE BOX
main58871-24020
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,30,31,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,2#,3#,4#
BLACK/RED,TRIM3#
RED,TRIM32
BLACK/BLACK,TRIM0#,1#,2#,3#,8#
BLACK/BLACK,TRIM0#,2#,30,31,8#
BLACK/BLACK,TRIM0#,2#,3#,8#
RED,TRIM32
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,30,31,8#
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#
BLACK/RED,TRIM3#
RED,TRIM32
BLACK/BLACK,TRIM0#,1#,2#,3#,8#
BLACK/BLACK,TRIM0#,2#,3#,8#
BLACK/BLACK,TRIM0#,2#,30,31,8#
RED,TRIM32
8401SWITCH & RELAY & COMPUTER
9015950327
main90159-50327
9018305094
main90183-05094
9046705171
main90467-05171
9046710201
main90467-10201
9046710203
main90467-10203
9165160618
main91651-60618
30 parts on this diagram · 3 diagrams in section
