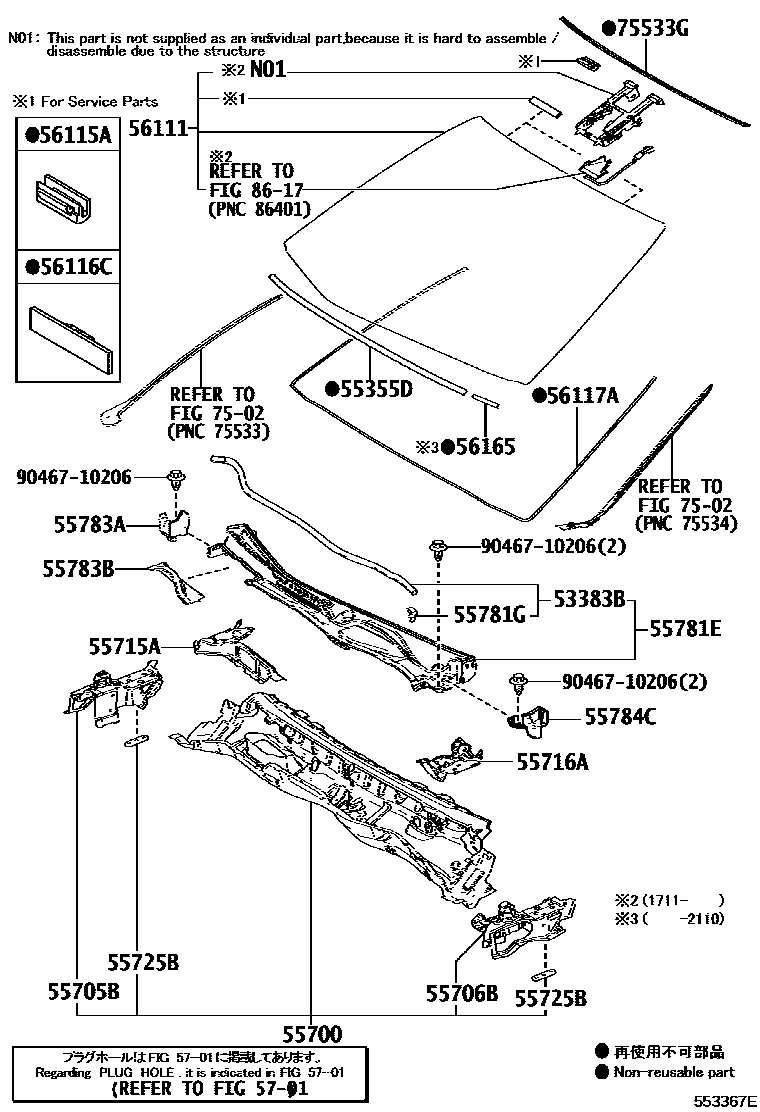

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55355DCUSHION, INSTRUMENT PANEL, NO.1
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784CPAD, COWL TOP SILENCER, LH
56111GLASS, WINDSHIELD
LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2762
56165COVER, FRONT WINDOW INNER MOULDING, LH
5701HOLE PLUG
7502FRONT MOULDING
75533GMOULDING, WINDSHIELD, OUTSIDE
8617PRE-COLLISION SYSTEM
9046710206
main90467-10206
23 parts on this diagram · 2 diagrams in section
