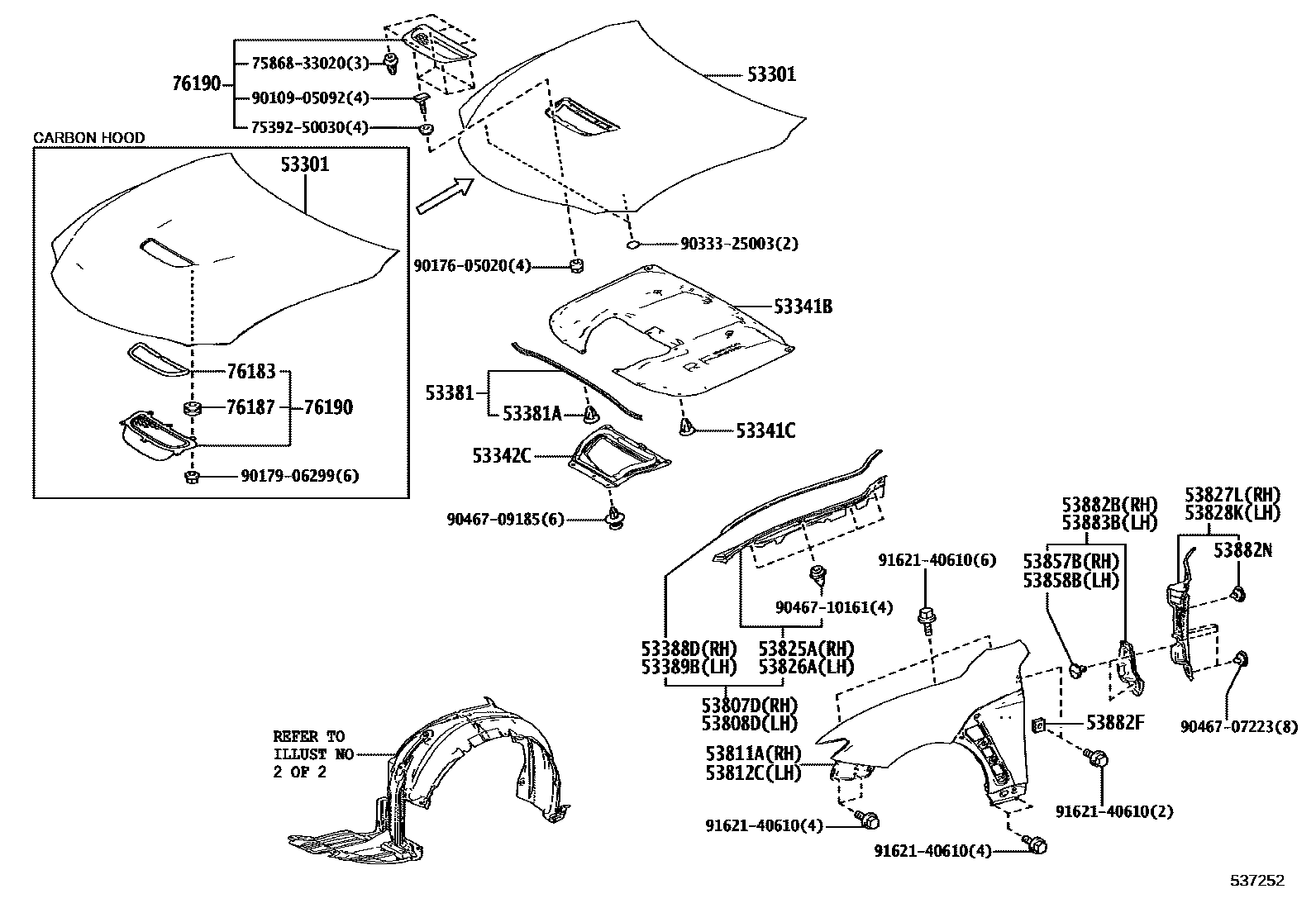

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
WITH(CARBON HOOD & CARBON ROOF)
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53342CINSULATOR, HOOD, NO.2
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
53882NCLIP(FOR FRONT FENDER SEAL)
BLACK
53883BSEAL, FRONT FENDER, LH
76183PROTECTOR, HOOD BULGE, NO.1
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE)
76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE)
76190PLATE ASSY, HOOD BULGE
SONIC SILVER,1J2; WITH(CARBON HOOD & CARBON ROOF),SONIC SILVER,1J2
SONIC TITANIUM,1J7; WITH(CARBON HOOD & CARBON ROOF),SONIC TITANIUM,1J7
"PERFORMANCE PACKAGE"*(H),SONIC CHROME,1L1; SONIC CHROME,1L1; WITH(CARBON HOOD & CARBON ROOF),SONIC CHROME,1L1
BLACK,212; WITH(CARBON HOOD & CARBON ROOF),BLACK,212
STARLIGHT BLACK GF.,1K7 ,217; STARLIGHT BLACK GF.,217; WITH(CARBON HOOD & CARBON ROOF),STARLIGHT BLACK GF.,1K7 ,217; WITH(CARBON HOOD & CARBON ROOF),STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223; WITH(CARBON HOOD & CARBON ROOF),GRAPHITE BLACK GF.,223
NAPLES YELLOW,5C1; WITH(CARBON HOOD & CARBON ROOF),NAPLES YELLOW,5C1
"PERFORMANCE PACKAGE"*(H),WHITE NOVA GF.,083; WHITE NOVA GF.,083; WITH(CARBON HOOD & CARBON ROOF),WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9; WITH(CARBON HOOD & CARBON ROOF),MERCURY GRAY MC.,1H9
"PERFORMANCE PACKAGE"*(H),TITANIUM CARBIDE GRAY,1L8; TITANIUM CARBIDE GRAY,1L8; WITH(CARBON HOOD & CARBON ROOF),TITANIUM CARBIDE GRAY,1L8
"PERFORMANCE PACKAGE"*(H),SONIC IRIDIUM,1L2; SONIC IRIDIUM,1L2; WITH(CARBON HOOD & CARBON ROOF),SONIC IRIDIUM,1L2
"PERFORMANCE PACKAGE"*(H),RED,3T5; RED,3T5; WITH(CARBON HOOD & CARBON ROOF),RED,3T5
ORANGE,4W7; WITH(CARBON HOOD & CARBON ROOF),ORANGE,4W7
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE),BLUE,8X1; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD,BLUE,8X1
BODY SHELL ASSY-CARBON ROOF & CARBON HOOD; BODY SHELL ASSY-CARBON ROOF & CARBON HOOD(LIGHT GRADE)
7539250030RETAINER, OUTSIDE MOULDING
main75392-50030
7586833020ORNAMENT, BACK DOOR OUTSIDE, RH
main75868-33020
9010905092
main90109-05092
9017605020
main90176-05020
9017906299
main90179-06299
9033325003
main90333-25003
9046707223
main90467-07223
9046709185
main90467-09185
9046710161
main90467-10161
9162140610
main91621-40610
35 parts on this diagram · 4 diagrams in section
