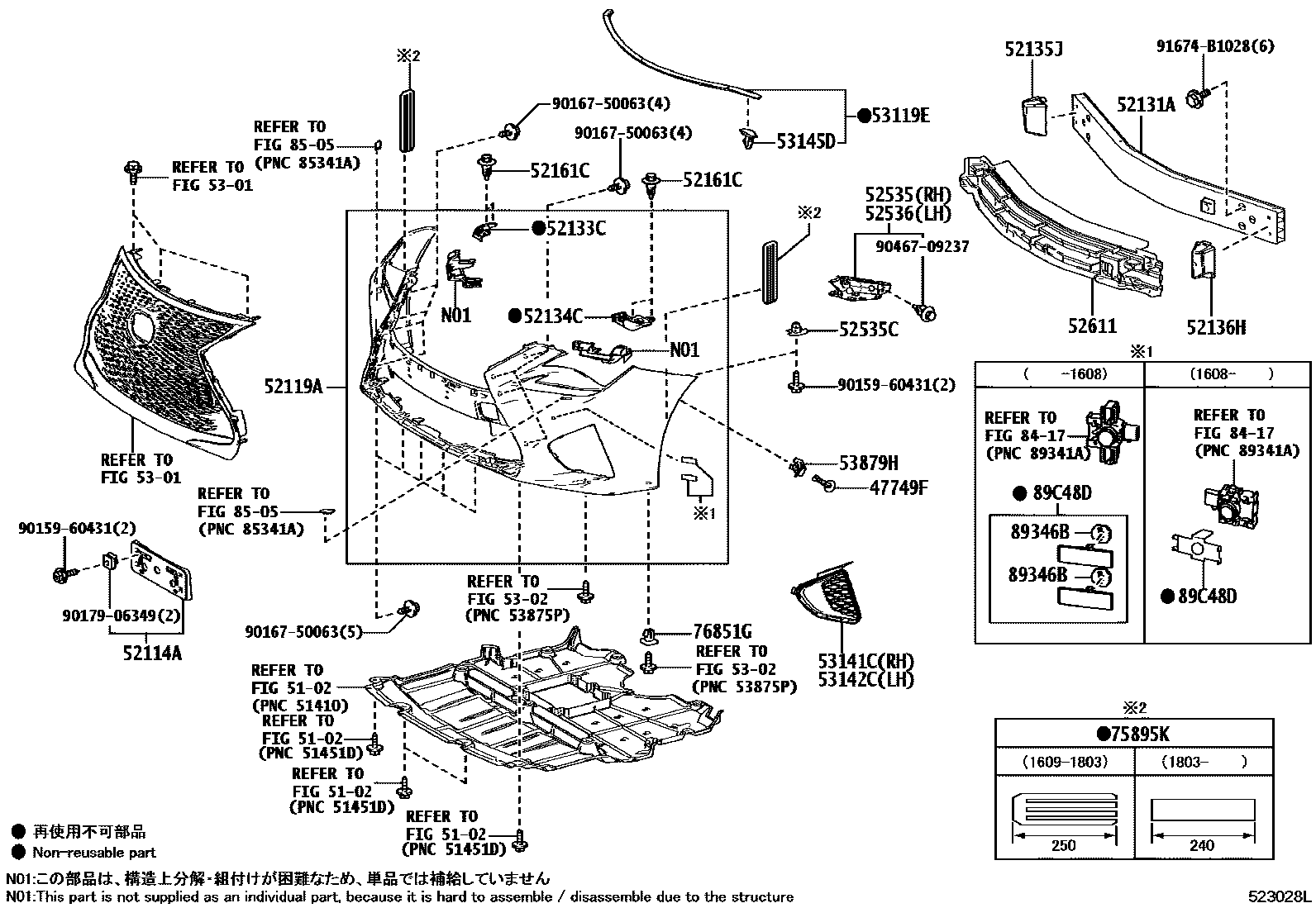

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-30030×2iUSC10201810-201902

main47749-50090×2iUSC10..ARL,GCC,GEN201409-201810

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-24170iUSC10..ARL,GCC201409-201902

main52114-24180iUSC10..GEN201409-201902

main52114-24190iUSC10..CHI201409-201711

main52114-24330iUSC10..GCC201903

main52114-24340iUSC10..GEN201903

52119ACOVER, FRONT BUMPER

main52119-24950iUSC10..GEN201409-201609

PAINT REQ.

main52119-24952iUSC10..CHI201409-201609

PAINT REQ.

main52119-24954iUSC10..ARL,GCC201409-201609

PAINT REQ.

main52119-24977iUSC10..ARL; USC10..GEN201609-201902

PAINT REQ.; PAINT REQ.,MACAU SPEC

main52119-24979iUSC10..CHI201609-201711

PAINT REQ.

main52119-24981iUSC10..ARL,GCC201609-201902

PAINT REQ.

main52119-2U930iUSC10..GEN201903

PAINT REQ.

main52119-2U919iUSC10..ARL201903-202412

"CARBON EXTERIOR PACKAGE"*(C); "PERFORMANCE PACKAGE"*(H)

52131AREINFORCEMENT, FRONT BUMPER

main52131-24100iUSC10..LHD201903

52133CREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-24050iUSC10..ARL201903-202412

main52133-24070iUSC10..ARL,GCC,GEN201409-201902

52134CREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-24070iUSC10..CHI201409-201711

main52134-24080iUSC10..LHD201903

52135JREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH

main52135-24060iUSC10201409-201502

main52135-24061iUSC10..CHI201503-201711

main52135-24070iUSC10..ARL201903-202412

52136HREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH

main52136-24050iUSC10201409-201502

main52136-24051iUSC10..CHI201503-201711

main52136-24060iUSC10..ARL201903-202412

52161CPIECE, FRONT BUMPER

main52161-16010×2iUSC10..ARL201903-202412

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24050iUSC10..ARL,GCC,GEN201409-201902

main52535-24080iUSC10..ARL201903-202412

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060×2iUSC10..CHI201409-201711

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-24050iUSC10..CHI201409-201711

main52536-24080iUSC10..ARL201903-202412

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24110iUSC10..CHI201409-201711

main52611-24130iUSC10..LHD201903

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53119EPROTECTOR, RADIATOR GRILLE

main53119-24040iUSC10..ARL,GCC,GEN201409-201902

main53119-24060iUSC10..LHD201903

53141CGARNISH, RADIATOR GRILLE

main53141-24040iUSC10..ARL,GCC,GEN201409-201902

main53141-24080iUSC10..ARL201903-202412

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-24050iUSC10..CHI201409-201711

main53142-24060iUSC10..ARL201903-202412

53145DCLIP, RADIATOR GRILLE

main53145-60030×12iUSC10..ARL201903-202412

53879HRETAINER, FRONT FENDER LINER

main53879-11010×2iUSC10..LHD201903

main53879-30050×2iUSC10..CHI201409-201711

main53879-30060×2iUSC10201810-201902

75895KTAPE, MOULDING, NO.1

main75895-28010×2iUSC10..ARL,GCC,GEN201609-201803

main75895-53010×2iUSC10..ARL201903-202412

76851GGROMMET, SCREW, NO.1

main90189-06237×2iUSC10..ARL201903-202412

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8505HEADLAMP CLEANER

→ Go to FIG 85-05

89346BADJUSTER, ULTRASONIC SENSOR

main89346-33010×4iUSC10201409-201609

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-33120×2iUSC10201409-201609

main89348-78020×2iUSC10..LHD201903

9015960431

main90159-60431

9016750063

main90167-50063

9017906349

main90179-06349

9046709237

main90467-09237

91674B1028

main91674-B1028

32 parts on this diagram · 2 diagrams in section
