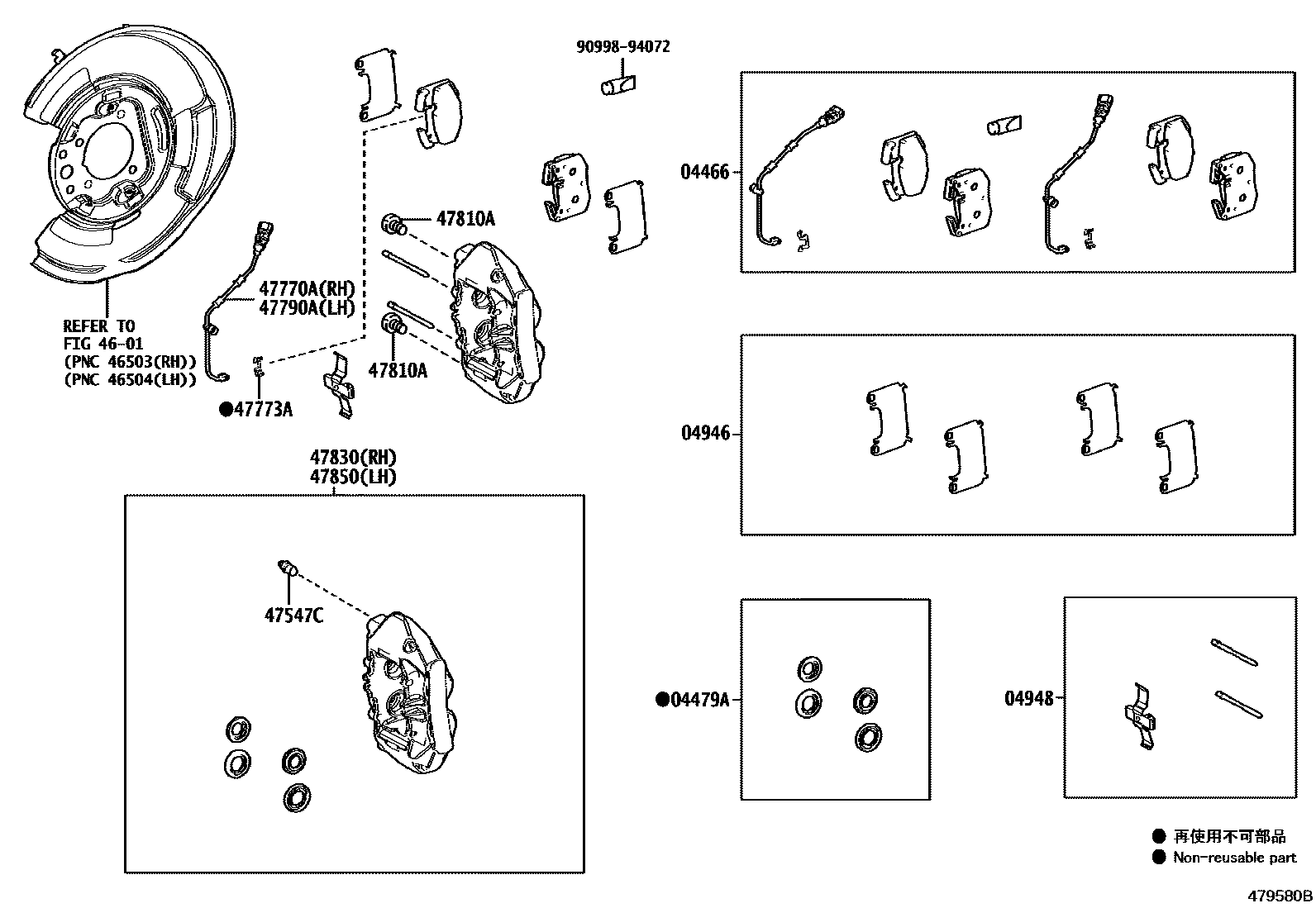

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1RED PAINTED

04466PAD KIT, DISC BRAKE, REAR

main04466-0W070iUSC10201903-202009

MARK GA 5032

main04466-0W100iUSC10..ARL202009-202412

MARK PAGID PA4971

main04466-0W090supersedes 04466-0W070iUSC10201903-201907

MARK HPC626,FRONT WHEEL BRAKE-RED PAINTED

main04466-0W091iUSC10..ARL201907-202412

MARK HPC626,FRONT WHEEL BRAKE-RED PAINTED

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0W030×2iUSC10..CHI201409-201711

main04479-0W040×2supersedes 04479-0W030iUSC10..LHD201903-202501

FRONT WHEEL BRAKE-RED PAINTED

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0W020iUSC10..LHD201903

04948FITTING KIT, DISC BRAKE, REAR

main04948-0W040×2iUSC10201903-201908

main04948-0W020×2supersedes 04948-0W041iUSC10..ARL201903-202412

FRONT WHEEL BRAKE-RED PAINTED

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39012×2iUSC10..CHI201409-201711

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-24020iUSC10..ARL,GCC,GEN201409-201902

main47770-24040supersedes 47770-24020iUSC10..LHD201903-202501

FRONT WHEEL BRAKE-RED PAINTED

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2iUSC10..LHD201903

47790AWIRE ASSY, PAD WEAR INDICATOR, LH

main47770-24020iUSC10..CHI201409-201711

main47770-24040supersedes 47770-24020iUSC10..ARL201903-202412

FRONT WHEEL BRAKE-RED PAINTED

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401×4iUSC10..ARL,GCC,GEN201709-201902

main90119-12416×4iUSC10201409-201708

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0W090iUSC10201409-201510

main47830-0W110supersedes 47830-0W100iUSC10..CHI201510-201711

FRONT WHEEL BRAKE-ORANGE PAINTED

main47830-0W120iUSC10..ARL201805-201902

FRONT WHEEL BRAKE-BREMBO(FOR F10 PACKAGE)

main47830-0W130supersedes 47830-0W100iUSC10..ARL201903-202412

FRONT WHEEL BRAKE-RED PAINTED

main47830-0W140iUSC10201903-202009

FRONT WHEEL BRAKE-ORANGE PAINTED

main47830-0W141iUSC10..LHD202009-202501

FRONT WHEEL BRAKE-ORANGE PAINTED

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0W090iUSC10201409-201510

main47850-0W110supersedes 47850-0W100iUSC10..CHI201510-201711

FRONT WHEEL BRAKE-ORANGE PAINTED

main47850-0W120iUSC10..ARL201805-201902

FRONT WHEEL BRAKE-BREMBO(FOR F10 PACKAGE)

main47850-0W130supersedes 47850-0W100iUSC10..ARL201903-202412

FRONT WHEEL BRAKE-RED PAINTED

main47850-0W140iUSC10201903-202009

FRONT WHEEL BRAKE-ORANGE PAINTED

main47850-0W141iUSC10..ARL202009-202412

FRONT WHEEL BRAKE-ORANGE PAINTED

9099894072

main90998-94072
