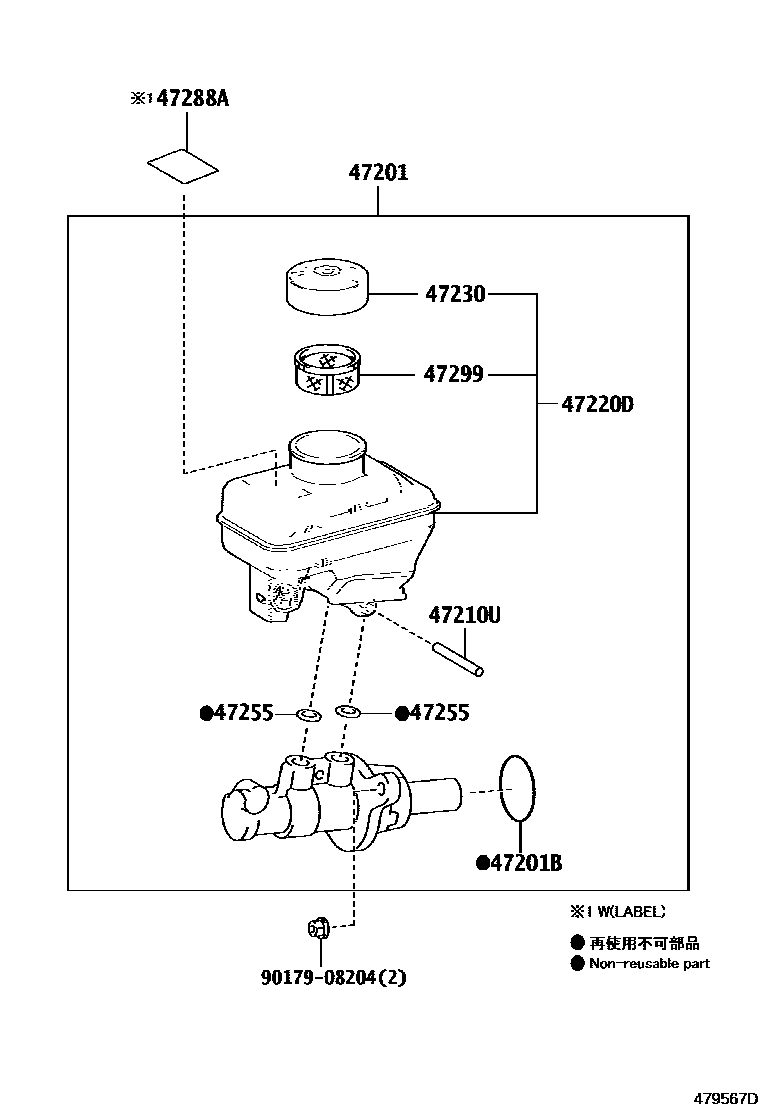

BRAKE MASTER CYLINDER

0001 1 0002 1

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-24170iUSC10..ARL201409-201509

main47201-24171iUSC10..ARL201510-201711

main47201-24180iUSC10..LHD201409-201509

main47201-24181iUSC10..LHD201510-201711

main47201-30890iUSC10..ARL201711-201902

main47201-30A00iUSC10..LHD201903

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iUSC10..CHI201409-201711

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iUSC10..CHI201409-201711

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-24030iUSC10..ARL,GCC,GEN201409-201902

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iUSC10201409-201411

main47230-33072iUSC10..CHI201411-201711

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2iUSC10..CHI201409-201711

47288ALABEL, BRAKE FLUID NOTICE

main47288-71010iUSC10..GCC201609-201902

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iUSC10..CHI201409-201711

9017908204

main90179-08204

9 parts on this diagram · 2 diagrams in section
