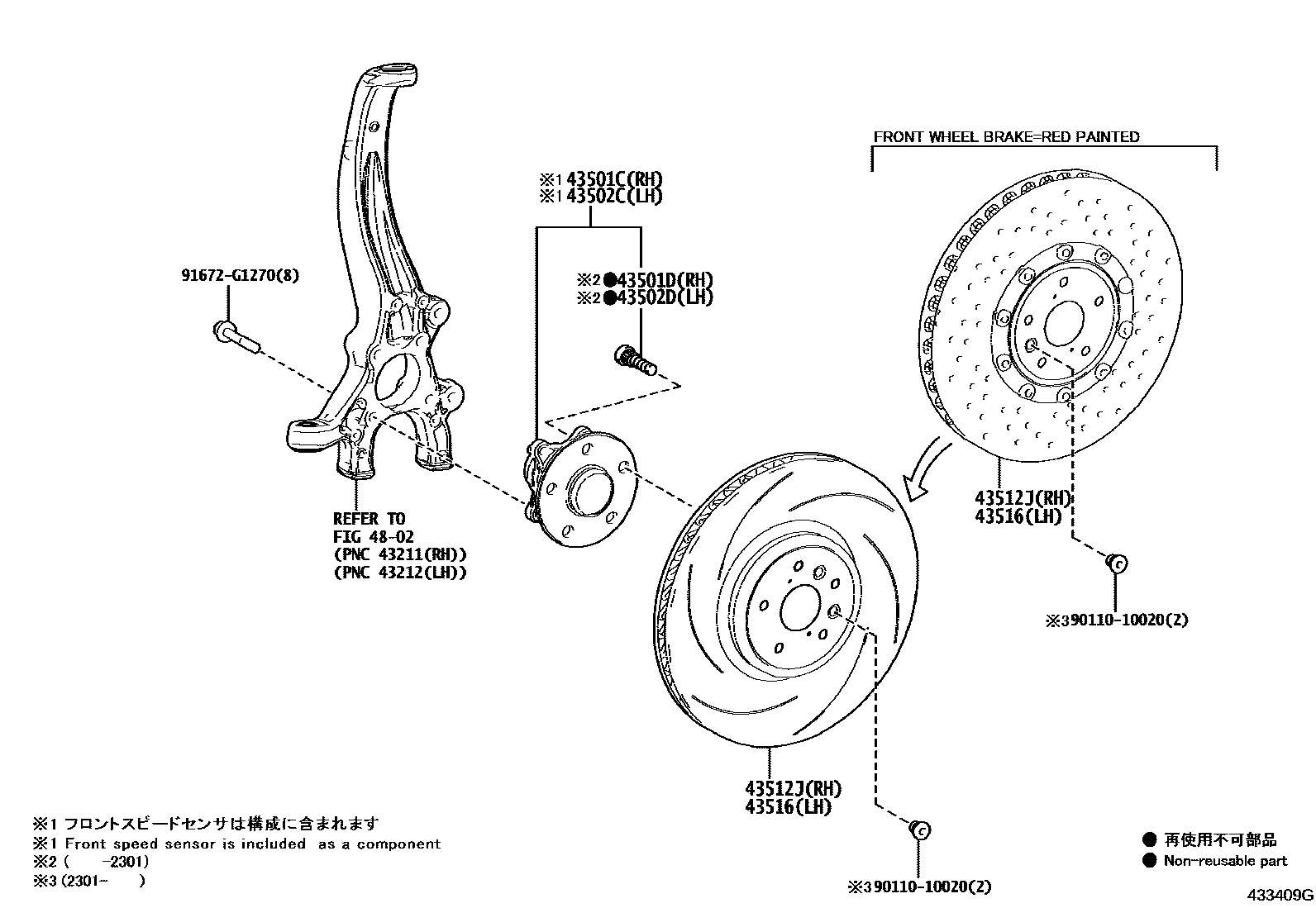

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-24010201409-201504

main43550-24011201505-202301

main43550-24020202301-202412

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049201505-202301

main90942-02070201409-201504

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-24010201409-201504

main43550-24011201505-202301

main43550-24020202301-202412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049201505-202301

main90942-02070201409-201504

43512JDISC, FRONT RH

main43512-0W100201409-202009

main43512-0W120202009-202212

main43512-0W121202301-202412

43516DISC, FRONT LH

main43516-0W020201409-202009

main43516-0W040202009-202212

main43516-0W041202301-202412

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011010020

main90110-10020

91672G1270

main91672-G1270

9 parts on this diagram · 1 diagram in section
