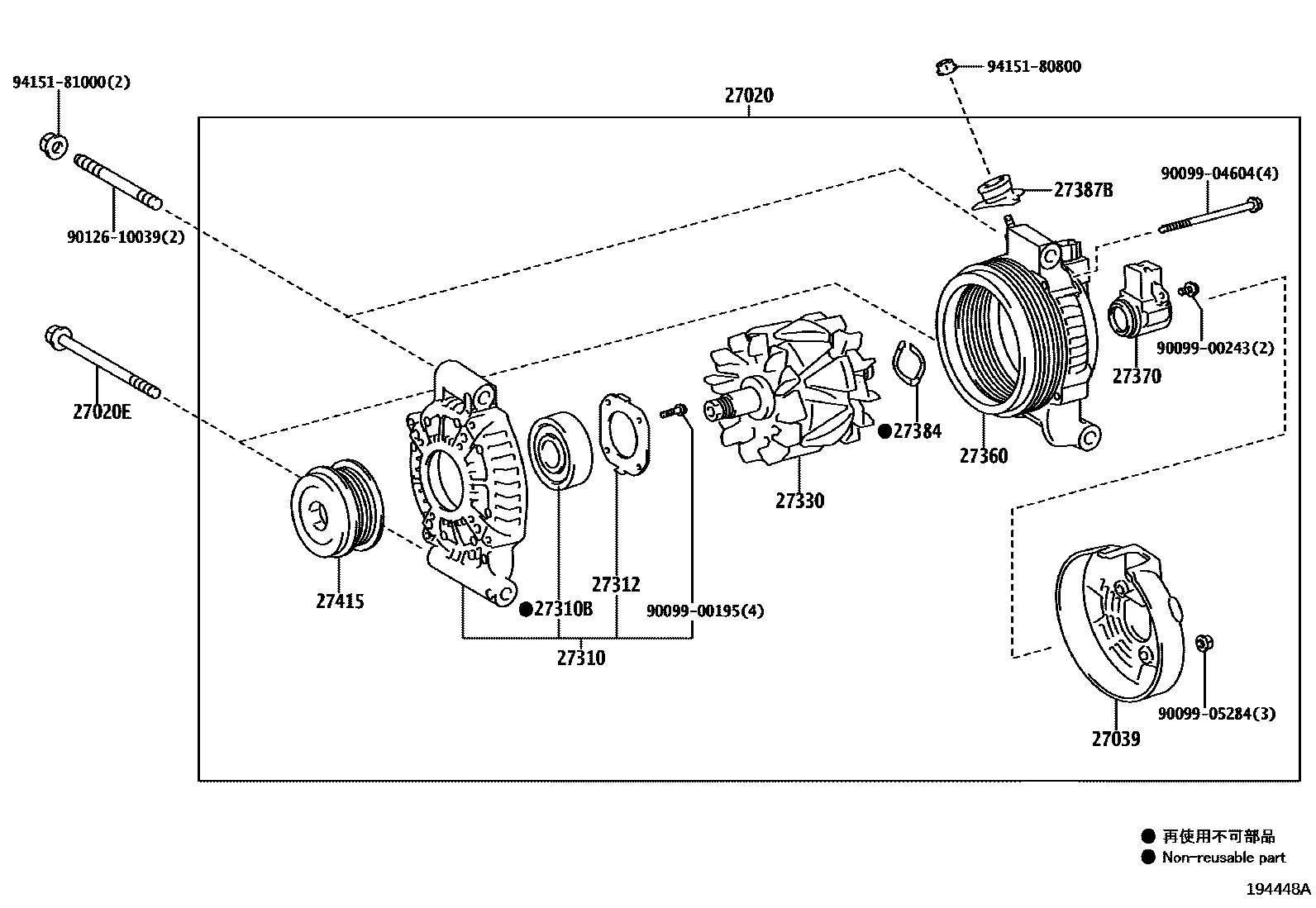

ALTERNATOR
27020ALTERNATOR ASSY
12V 180A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
9009900195
main90099-00195
9009900243
main90099-00243
9009904604
main90099-04604
9009905284
main90099-05284
9012610039
main90126-10039
9415180800
main94151-80800
9415181000
main94151-81000
19 parts on this diagram · 1 diagram in section
