AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

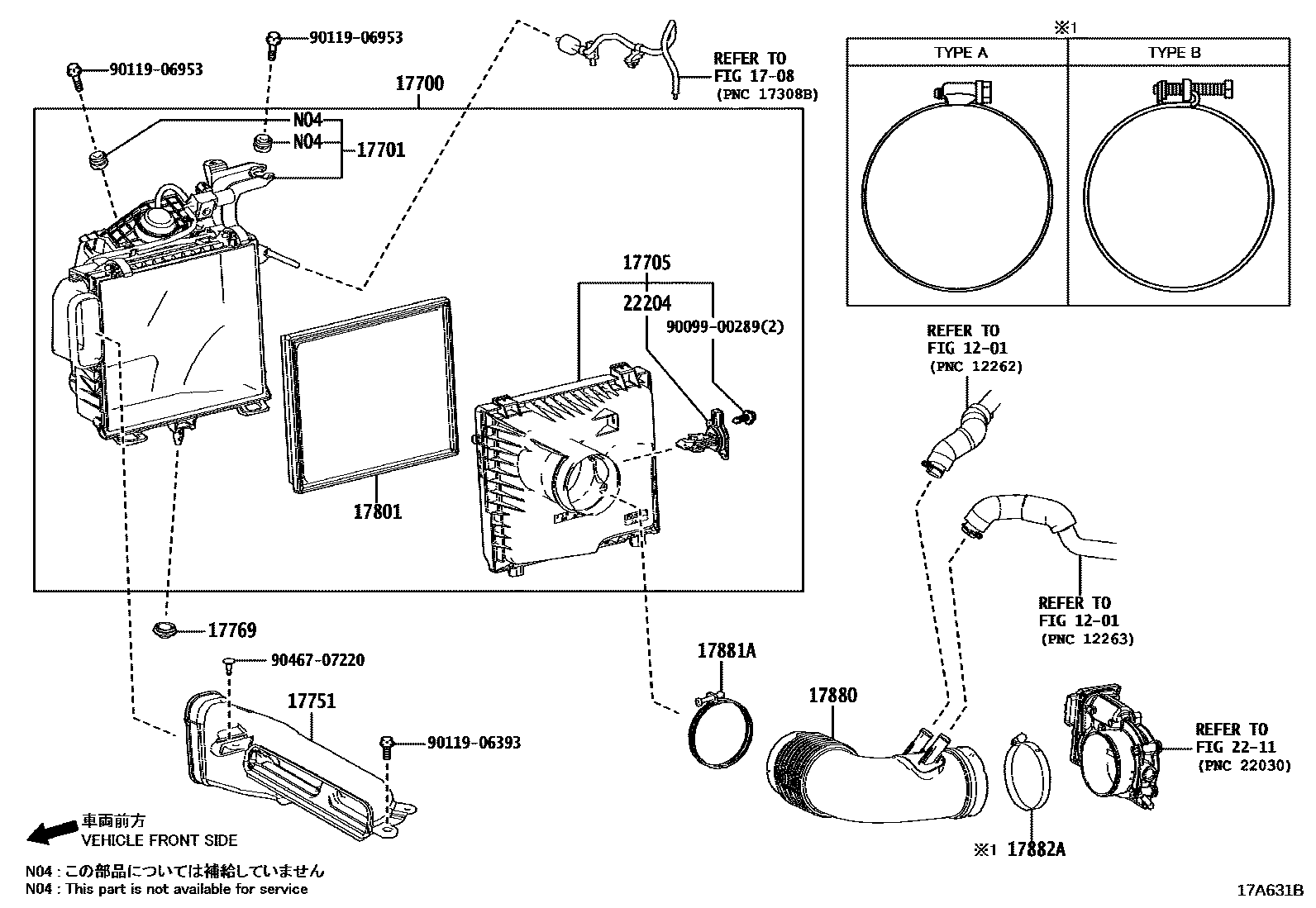

17700CLEANER ASSY, AIR

main17700-38240i2URGSE..USC10201409-201503

main17700-38241i2URGSE..USC10..CHI201504-201711

main17700-38280i2URGSE..USC10..ARL201903-202501

17701CASE SUB-ASSY, AIR CLEANER

main17701-38170i2URGSE..USC10201409-201503

main17701-38171i2URGSE..USC10..CHI201504-201711

17705CAP SUB-ASSY, AIR CLEANER

main17705-38170i2URGSE..USC10..CHI201409-201711

main17705-38220i2URGSE..USC10..ARL201903-202501

17751INLET, AIR CLEANER, NO.1

main17751-38080i2URGSE..USC10..CHI201409-201711

17769SUPPORT, AIR CLEANER

main17769-31030i2URGSE..USC10..CHI201409-201711

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38021i2URGSE..USC10..CHI201409-201711

17880HOSE ASSY, AIR CLEANER

main17880-38080i2URGSE..USC10201409-201412

main17880-38081i2URGSE..USC10..CHI201501-201711

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17891-38050i2URGSE..USC10..CHI201409-201711

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-38040i2URGSE..USC10201409-201501

TYPE A:REFER ILLUST.

main17891-38070i2URGSE..USC10..CHI201501-201711

TYPE B:REFER ILLUST.

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2URGSE..USC10..CHI201409-201711

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

9046707220

main90467-07220

17 parts on this diagram · 1 diagram in section
