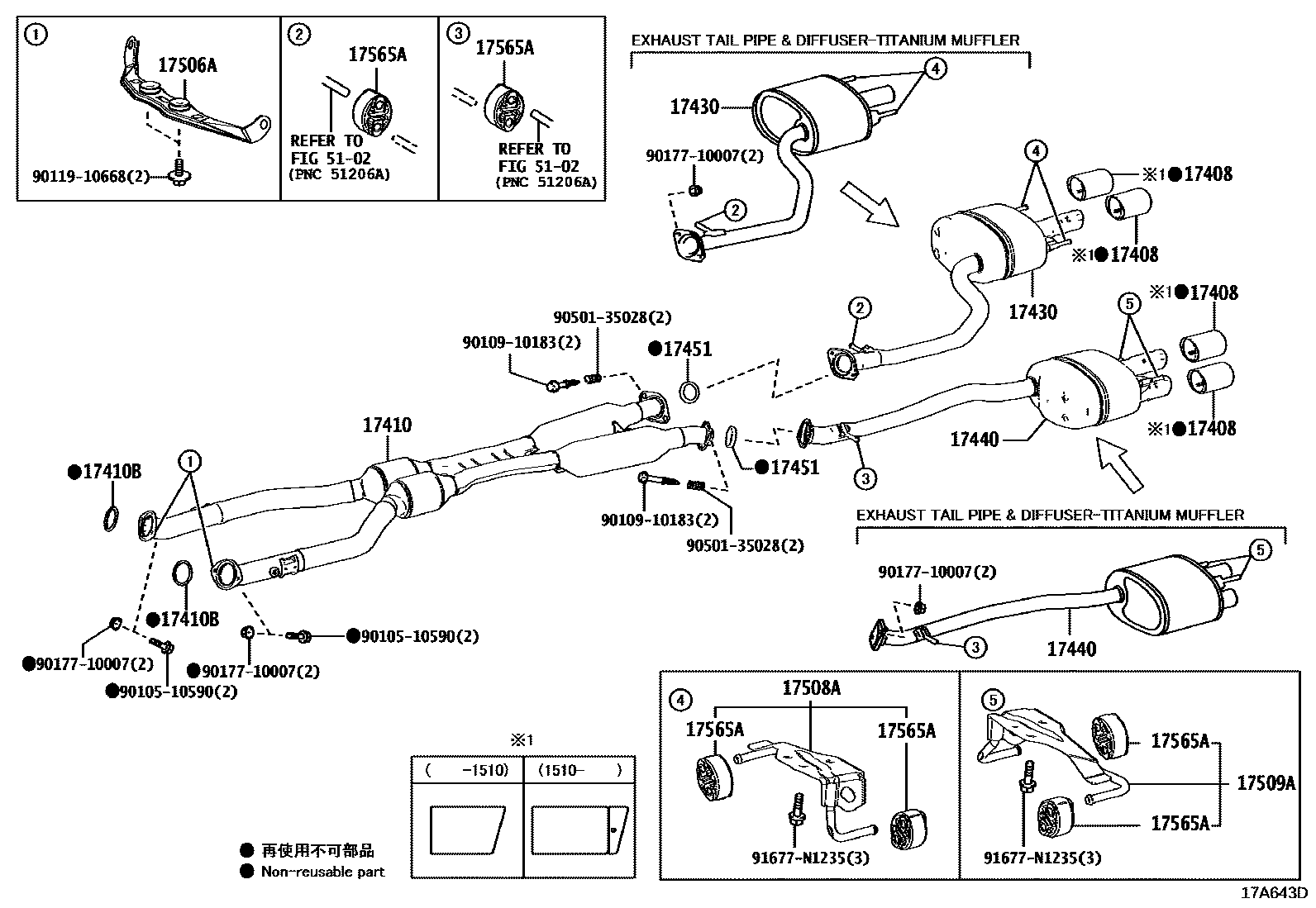

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17049-38020×4i201510-201902

main17408-38010×4i201409-201510

main17049-38040×4i201903-202501

EXHAUST TAIL PIPE & DIFFUSER-TITANIUM MUFFLER

17410PIPE ASSY, EXHAUST, FRONT

main17410-38510i201409-201711

*114=TOYOTA/PA6/Y

main17410-38511supersedes 17410-38601i202204

*114=TOYOTA/PA6/Y

main17410-38600i202111-202203

*114=TOYOTA/PB1/Y,SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO6C; *114=TOYOTA/PB1/Y,TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO6D TEMP

main17410-38601i202204-202310

*114=TOYOTA/PB1/Y,HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C; *114=TOYOTA/PB1/Y,MACAU SPEC&EXHAUST EMISSION CONTROL-EURO6C; *114=TOYOTA/PB1/Y,SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO6C

17410BGASKET, EXHAUST PIPE

main90917-06070×2i201903-202501

17430PIPE ASSY, EXHAUST, TAIL

main17430-38640i201409-201510

REFER TO PNC 17408

main17430-38660i201510-201902

REFER TO PNC 17408

main17430-38750i201903-202501

EXHAUST TAIL PIPE & DIFFUSER-TITANIUM MUFFLER

17440PIPE, EXHAUST TAIL, LH

main17440-38050i201510-201902

REFER TO PNC 17408

main17440-38080i201409-201510

REFER TO PNC 17408

main17440-38140i201903-202501

EXHAUST TAIL PIPE & DIFFUSER-TITANIUM MUFFLER

17451GASKET, EXHAUST PIPE

main17451-28022×2i201903

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-38140i201409-201902

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-38150i201409-201711

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-38050i201409-201711

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×6i201409-201711

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

9010510590

main90105-10590

9010910183

main90109-10183

9011910668

main90119-10668

9017710007

main90177-10007

9050135028

main90501-35028

91677N1235

main91677-N1235
