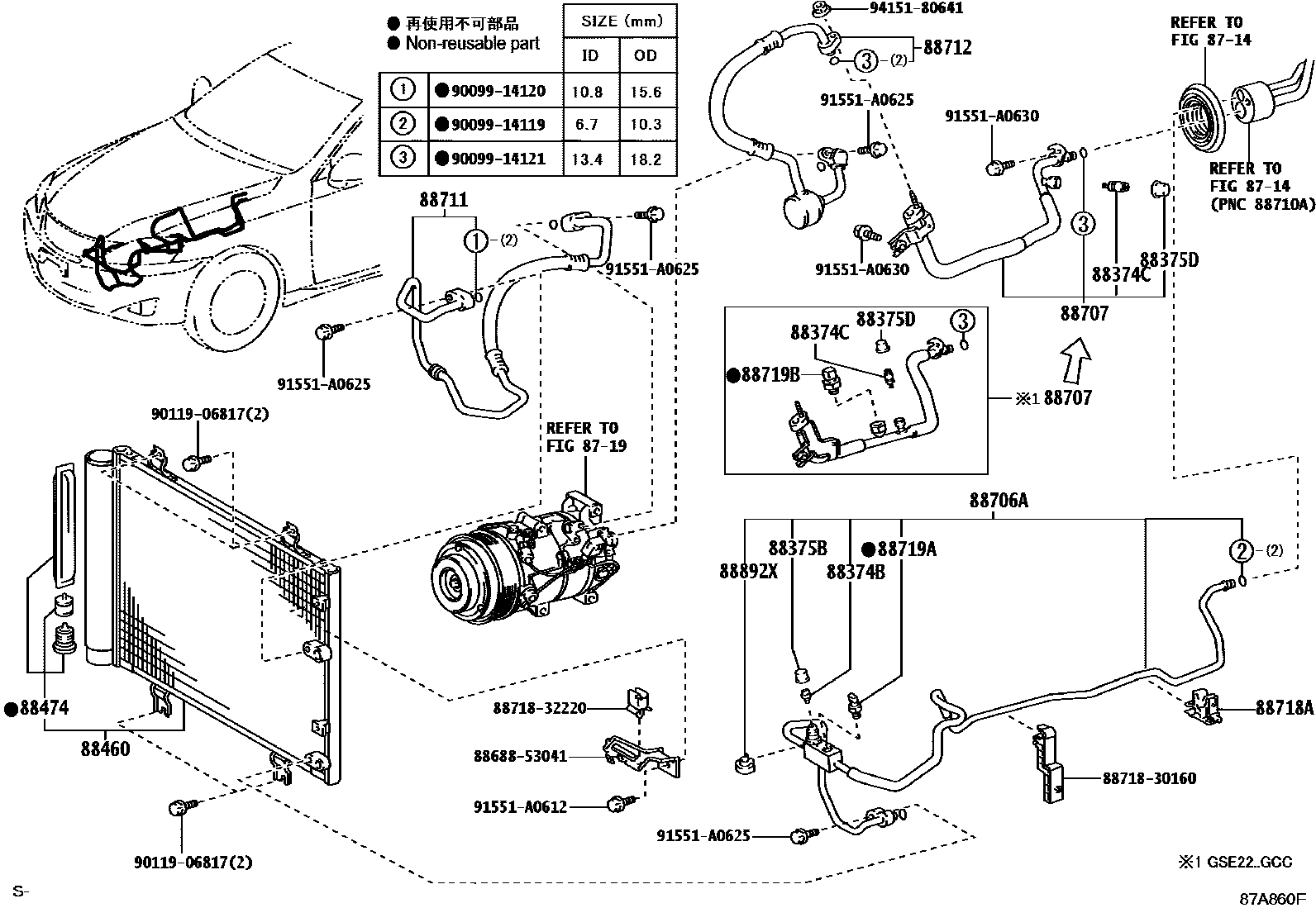

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGSE2#200904

88374CVALVE, SERVICE, NO.2

main88374-30010iGSE2#200904

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGSE2#200904

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGSE2#200904

88460CONDENSER ASSY, COOLER

main88460-53050iGSE2#200904

88474DRYER, COOLER

main88474-17010iGSE2#200904

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53080iGSE2#200904-201012

main88706-53130iGSE2#201101

88707PIPE SUB-ASSY, SUCTION

main88707-53050supersedes 88707-53080iGSE20;GSE22..GEN; GSE22..GCC200904

PHILIPPINE SPEC

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-53100supersedes 88711-53090iGSE20;GSE22..GEN; GSE22..GCC200904

PHILIPPINE SPEC

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53100supersedes 88712-53130iGSE20;GSE22..GEN; GSE22..GCC200904-201012

PHILIPPINE SPEC

main88712-53180iGSE20;GSE22..GEN; GSE22..GCC201101

PHILIPPINE SPEC

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-30150supersedes 88718-30110iGSE20;GSE22..GEN; GSE22..GCC200904

PHILIPPINE SPEC

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSE2#201005

main88719-40020iGSE22200904-201005

88719BSENSOR, AIR CONDITIONER PRESSURE, NO.2

main88719-26020iGSE22..GCC200904

88892XCOVER, COOLER, NO.2

main88892-50120iGSE2#201005

8868853041BRACKET, COOLER DIAPHRAGM

main88688-53041

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

27 parts on this diagram · 2 diagrams in section
