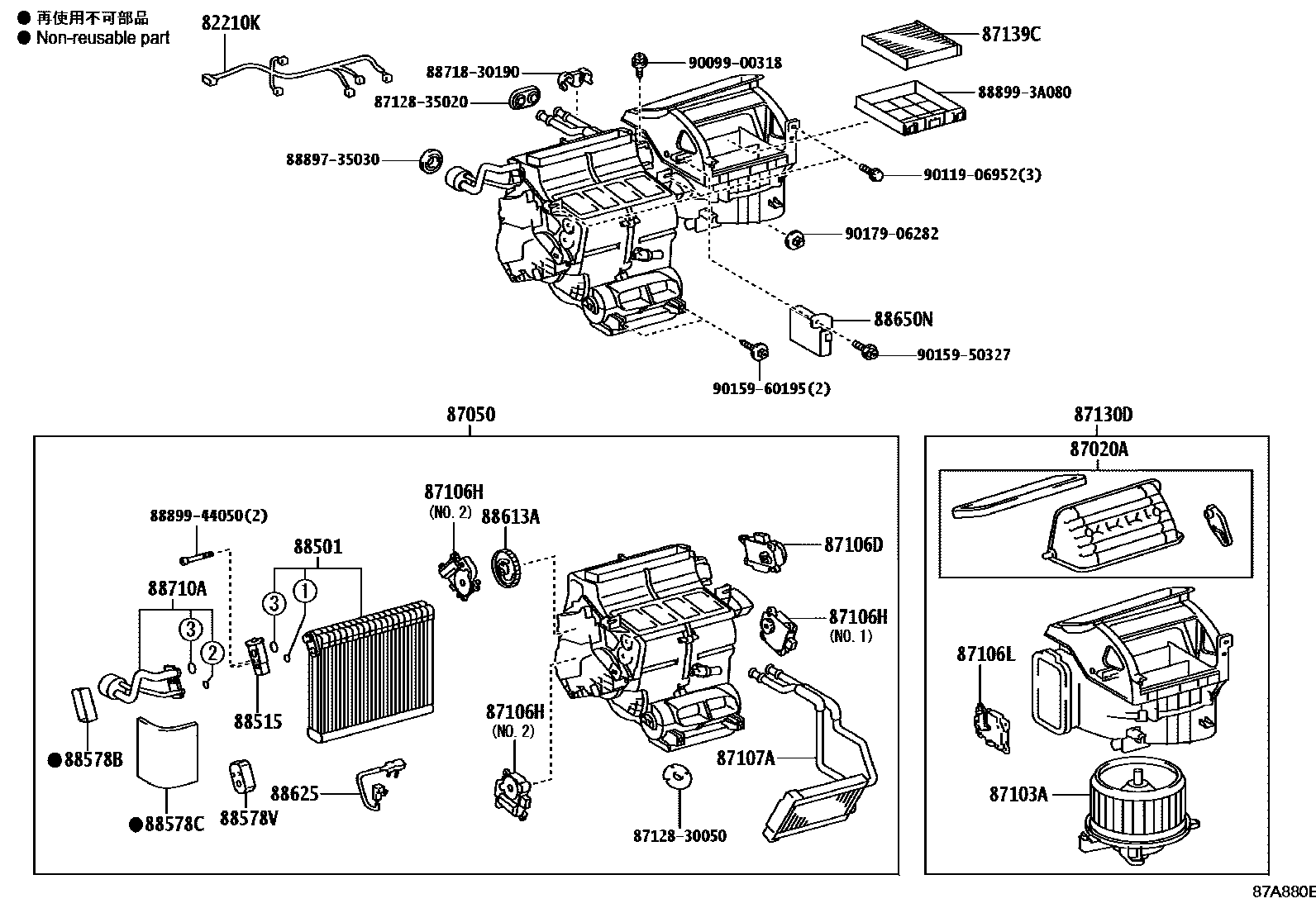

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30013iGSE22..GEN200904-201408

main82212-30022iGSE2#..GCC200904-201507

87020ADAMPER ASSY, HEATER AIR

main87020-30010iGSE22..GEN200904-201408

main87020-30020iGSE2#..GCC200904

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30210iGSE22..GEN200904-201107

main87050-30211iGSE22..GEN201107-201312

main87050-30212iGSE22..GEN201312-201408

main87050-30230iGSE2#..GCC200904-201106

main87050-30231iGSE2#..GCC201107

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30400iGSE22..GEN200904-201010

main87103-30401iGSE22..GEN201011-201408

main87103-30450iGSE2#..GCC200904-201010

main87103-30451iGSE2#..GCC201011

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30440iGSE2#200904

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30430iGSE2#200904

NO.1

main87106-30450×2iGSE2#200904

NO.2

87106LSERVO SUB-ASSY, DAMPER

main87106-30470iGSE22..GEN200904-201408

main87106-30480iGSE2#..GCC200904

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30560iGSE2#200904-201507

87130DBLOWER ASSY

main87130-30791iGSE22..GEN200904-201408

main87130-30811iGSE2#..GCC200904

87139CFILTER, CLEAN AIR

main87139-30040iGSE2#200904-201208

MICRO DUST FILTER,OE PART

main87139-50060iGSE20201008-201204

DEODORANT FILTER

main87139-50100iGSE20201205-201507

POLLEN DEODORANT

main87139-52040iGSE2#201208-201507

POLLEN FILTER,OE PART

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A160iGSE2#200904-201107

main88501-3A161iGSE2#201107

88515VALVE, COOLER EXPANSION

main88515-28180iGSE2#200904-201107

main88515-30780iGSE2#201107

88578BPACKING, COOLING UNIT, NO.1

main88578-30830iGSE2#200904

88578CPACKING, COOLING UNIT, NO.2

main88578-30840iGSE2#..GCC200904

88578VPACKING, COOLING UNIT, NO.3

main88578-30870iGSE2#201107

88613ALEVER, COOLER CONTROL, NO.1

main88613-30010iGSE2#..GCC200904

88625THERMISTOR, COOLER, NO.1

main88620-30020iGSE2#200904

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-53240supersedes 88650-53230iGSE22..GCC200904-201007

FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR; FRONT SEAT-SEMIANILINE LEATHER

main88650-53260supersedes 88650-53381iGSE22..GEN200904-201007

FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR; FRONT SEAT-SEMIANILINE LEATHER

main88650-53370supersedes 88650-53360iGSE2#..GCC201008-201101

FRONT SEAT-SEMIANILINE LEATHER; FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR

main88650-53371supersedes 88650-53361iGSE2#..GCC201102-201207

FRONT SEAT-SEMIANILINE LEATHER

main88650-53390supersedes 88650-53380iGSE22..GEN201008-201101

FRONT SEAT-SEMIANILINE LEATHER; FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR

main88650-53391supersedes 88650-53381iGSE22..GEN201102-201207

FRONT SEAT-SEMIANILINE LEATHER

main88650-53520supersedes 88650-53510iGSE2#..GCC; GSE22..GCC201208

FRONT SEAT-SEMIANILINE LEATHER; FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT)

main88650-53540supersedes 88650-53530iGSE22..GEN201208-201408

FRONT SEAT-SEMIANILINE LEATHER

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A260iGSE2#200904-201107

main88710-3A420iGSE2#201107-201507

8712830050GROMMET, HEATER

main87128-30050

8712835020GROMMET, HEATER

main87128-35020

8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30190

8889735030VALVE, COOLER MAGNET

main88897-35030

888993A080COVER, EVAPORATOR

main88899-3A080

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

30 parts on this diagram · 3 diagrams in section
