HORN

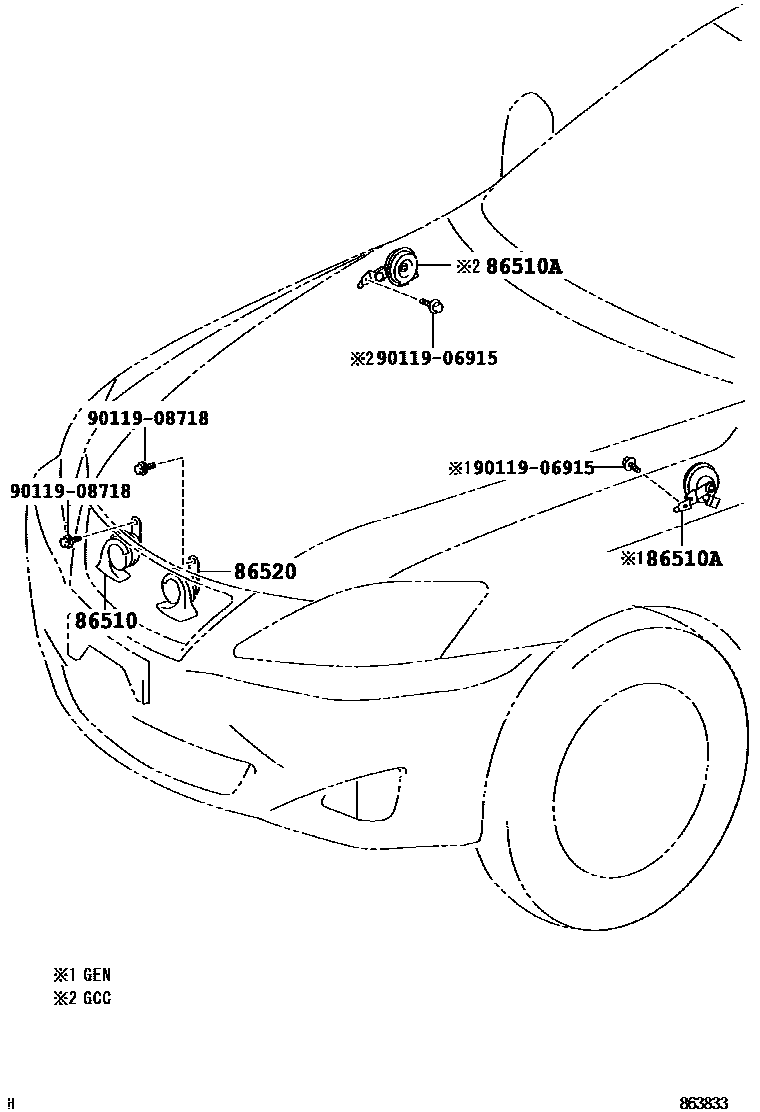

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-30691i201008-201107

main86510-30700i200904

main86510-50200i201108

86510AHORN ASSY, SECURITY

main86510-30640i200904-201408

main86510-30660i200904

86520HORN ASSY, LOW PITCHED

main86520-30601i201008-201107

main86520-30610i200904

main86520-50170i201108

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
