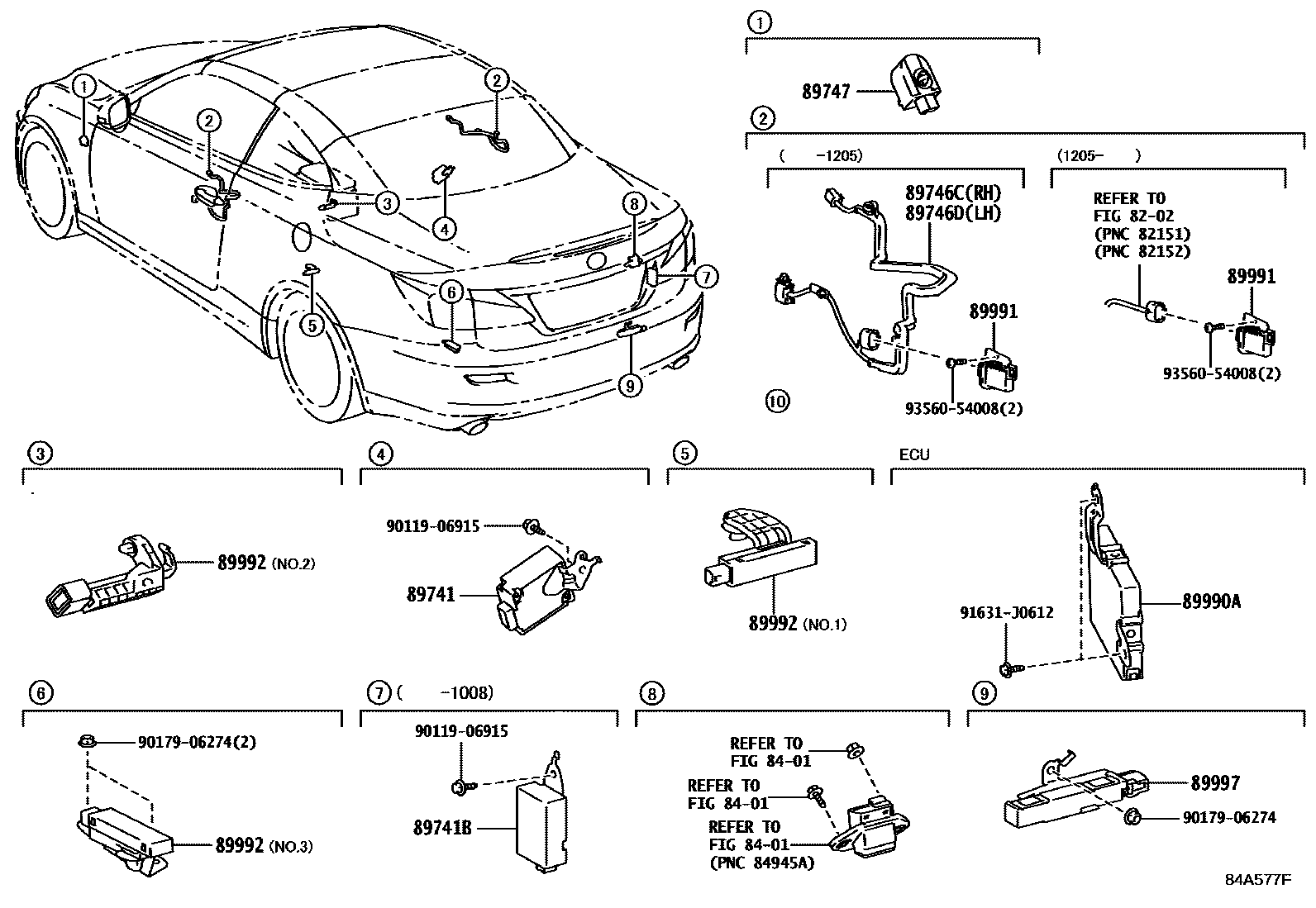

WIRELESS DOOR LOCK
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
89741RECEIVER, DOOR CONTROL
ARGENTINE SPEC; ARGENTINE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)
89741BRECEIVER, DOOR CONTROL, NO.2
ARGENTINE SPEC; ARGENTINE SPEC&ELECTRICAL KEY(2)&CARD TYPE(1); CHINA SPEC; CHINA SPEC&ELECTRICAL KEY(2)&CARD TYPE(1)
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN
WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN
89991OSCILLATOR, DOOR ELECTRICAL KEY
RH
LH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
NO.1
NO.2
NO.2
NO.3
89997ANTENNA, ELECTRICAL KEY
9011906915
main90119-06915
9017906274
main90179-06274
91631J0612
main91631-J0612
9356054008
main93560-54008
15 parts on this diagram · 2 diagrams in section
