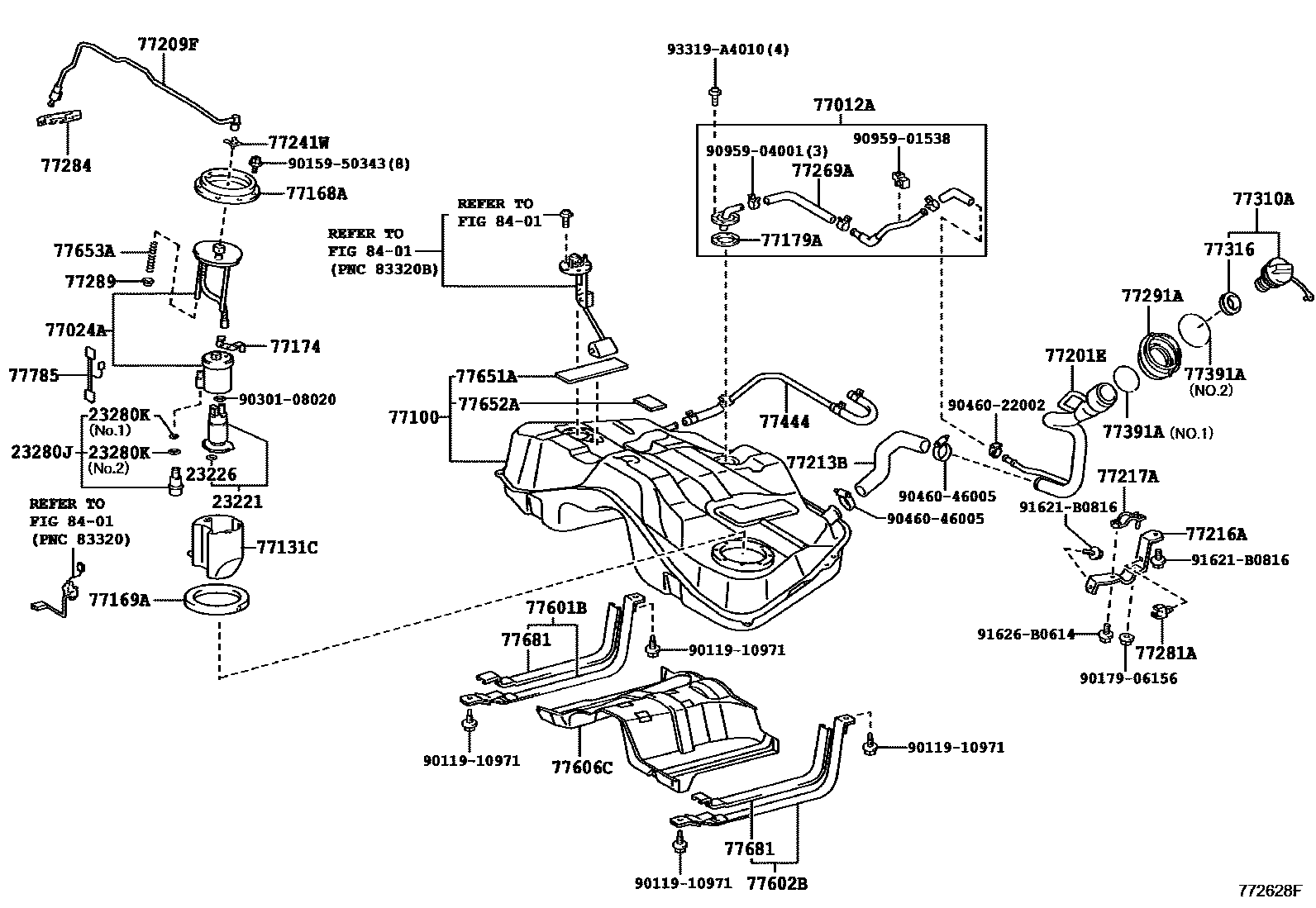

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPNER

23221PUMP, FUEL

main23220-31070i3GRFE..GSE22200904-200906

main23220-31071i3GRFE..GSE22200907

main23221-31340i4GRFSE..GSE20201008

main23220-31030i3GRFE..GSE22..GCC200904-200906

CHINA SPEC

main23220-31031i3GRFE..GSE22..GCC200907-201008

CHINA SPEC

23226RING, O(FOR FUEL PUMP)

main90301-11025i3GRFE,4GRFSE..GSE2#200904

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i3GRFE..GSE22200904

main23280-31020i4GRFSE..GSE20201008

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i3GRFE,4GRFSE..GSE2#200904

NO.1

main90301-15024i3GRFE,4GRFSE..GSE2#200904

NO.2

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-53040iGSE2#200904

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-22030iGSE20201008

main77024-53030iGSE22200904-200906

main77024-53031iGSE22200907

77100TANK ASSY, FUEL

main77001-53081iGSE2#200904

77131CSUB-TANK, FUEL, NO.1

main77131-22041iGSE22200904

main77131-22052iGSE20201008

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iGSE2#200904

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGSE2#200904

77174SUPPORT, FUEL SUCTION, NO.1

main77174-22010iGSE22200904-200906

main77174-48020iGSE22200907

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGSE2#200904

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53080iGSE2#200904

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-53020iGSE2#200904

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iGSE2#200904

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050iGSE2#200904-201202

main77216-30051iGSE2#201203

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130iGSE2#200904-201202

main77217-30131iGSE2#201203

77241WCLIP, TUBE JOINT

main77241-33011iGSE22201002

main77241-60320iGSE22200904-201001

77269AHOSE, FUEL TANK BREATHER

main77269-22010iGSE2#200904

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iGSE2#200904

77284CLAMP, FUEL TUBE

main77289-53020iGSE2#200904

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGSE2#200904

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-53040iGSE2#200904

77310ACAP ASSY, FUEL TANK

main77300-52030iGSE2#200904

77316GASKET, FUEL TANK CAP

main77316-52040iGSE2#200904

77391ARING, FUEL INLET BOX

main77391-28020iGSE2#200904

NO.1

main77391-30020iGSE2#200904

NO.2

77444HOSE, FUEL TANK VENT

main77404-53040iGSE2#200904

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-53020iGSE2#200904

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77601-22110iGSE2#200904

77606CPROTECTOR, FUEL TANK, NO.2

main77606-53030iGSE2#200904-201206

main77606-53031iGSE2#201207-201307

77651ACUSHION, FUEL TANK, NO.1

main77651-53010iGSE2#200904

77652ACUSHION, FUEL TANK, NO.2

main77652-12100×10iGSE2#200904

77653ACUSHION, FUEL TANK, NO.3

main77652-22090iGSE2#200904

77681SEAT, FUEL TANK BAND, RH

main77681-22020×2iGSE2#200904

77785HARNESS, FUEL PUMP

main77785-0N010iGSE22200904-201308

main77785-0N011iGSE22201309

main77785-30040iGSE20201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910971

main90119-10971

9015950343

main90159-50343

9017906156

main90179-06156

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9095901538

main90959-01538

9095904001

main90959-04001

91621B0816

main91621-B0816

91626B0614

main91626-B0614

93319A4010

main93319-A4010
