FRONT SEAT & SEAT TRACK

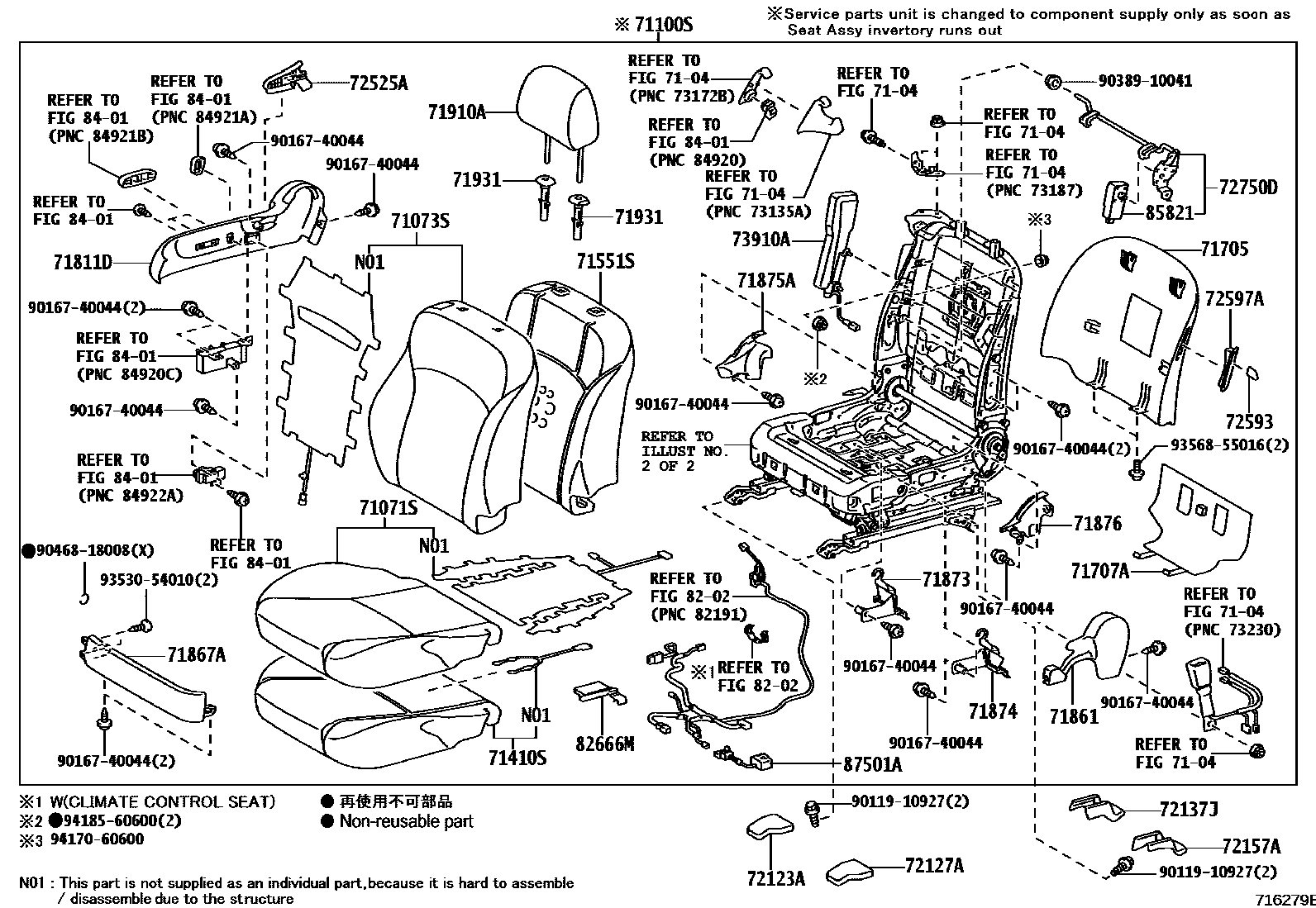

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-53550-A3i200904-201007
MELLOW WHITE,TRIM0#
main71071-53550-C3i200904-201007
BLACK,TRIM2#
main71071-53551-A3i201008-201107
MELLOW WHITE,TRIM0#
main71071-53551-C3i201008-201107
BLACK,TRIM2#
main71071-53C60-A0i201108-201507
MELLOW WHITE,TRIM0#
main71071-53C60-C0i201108-201507
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-53520-A0i200904-201008
MELLOW WHITE,TRIM0#
main71073-53520-C0i200904-201008
BLACK,TRIM2#
main71073-53701-A0i201008-201108
MELLOW WHITE,TRIM0#
main71073-53701-A1i201108-201208
MELLOW WHITE,TRIM0#
main71073-53701-C0i201008-201108
BLACK,TRIM2#
main71073-53701-C2i201108-201208
BLACK,TRIM2#
main71073-53702-A2i201208-201507
MELLOW WHITE,TRIM0#
main71073-53702-C4i201208-201507
BLACK,TRIM2#
71100SSEAT ASSY, FRONT RH
main71010-53660-A0i201108-201208
MELLOW WHITE,TRIM0#
main71010-53660-C0i201108-201208
BLACK,TRIM2#
main71010-53661-A1i201208-201408
MELLOW WHITE,TRIM0#
main71010-53661-C1i201208-201408
BLACK,TRIM2#
main71010-53690-A0i201108-201208
MELLOW WHITE,TRIM0#
main71010-53690-C0i201108-201208
BLACK,TRIM2#
main71010-53691-A1i201208-201507
MELLOW WHITE,TRIM0#
main71010-53691-C1i201208-201507
BLACK,TRIM2#
main71010-53700-A0i201108-201208
MELLOW WHITE,TRIM0#
main71010-53700-C0i201108-201208
BLACK,TRIM2#
main71010-53701-A1i201208-201507
MELLOW WHITE,TRIM0#
main71010-53701-C1i201208-201507
BLACK,TRIM2#
main71100-53K41-A2i200904-200908
MELLOW WHITE,TRIM0#
main71100-53K41-A3i200908-201008
MELLOW WHITE,TRIM0#
main71100-53K41-C2i200904-200908
BLACK,TRIM2#
main71100-53K41-C3i200908-201008
BLACK,TRIM2#
main71100-53M30-A3i200904-200908
MELLOW WHITE,TRIM0#
main71100-53M30-A4i200908-201008
MELLOW WHITE,TRIM0#
main71100-53M30-C3i200904-200908
BLACK,TRIM2#
main71100-53M30-C4i200908-201008
BLACK,TRIM2#
main71100-53P41-A0i201008-201107
MELLOW WHITE,TRIM0#
main71100-53P41-C0i201008-201107
BLACK,TRIM2#
main71100-53W11-A0i201008-201107
MELLOW WHITE,TRIM0#
main71100-53W11-C0i201008-201107
BLACK,TRIM2#
main71100-53W81-A0i201008-201107
MELLOW WHITE,TRIM0#
main71100-53W81-C0i201008-201107
BLACK,TRIM2#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71501-53190i200904-201507
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-53160i200904
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-53050-A0i200904-201507
MELLOW WHITE,TRIM0#
main71705-53050-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-53020-A0i200904-201301
MELLOW WHITE,TRIM0#
main71707-53020-C0i200904-201301
BLACK,TRIM2#,3#
main71707-53020-C0i201008-201301
BLACK,TRIM2#
main71707-53021-A0i201302-201507
MELLOW WHITE,TRIM0#
main71707-53021-C0i201302-201507
BLACK,TRIM2#
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-53050-A0i200904-201507
MELLOW WHITE,TRIM0#
main71811-53050-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-53070-A0i200904-201507
MELLOW WHITE,TRIM0#
main71861-53070-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-53011-A1i200904-201507
MELLOW WHITE,TRIM0#
main71867-53011-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-30060i200904
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-30070i200904
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-53060-A0i200904-201507
MELLOW WHITE,TRIM0#
main71875-53060-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-53070-A0i200904-201507
MELLOW WHITE,TRIM0#
main71875-53070-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71910AHEADREST ASSY, FRONT SEAT
main71910-53210-A0i200904-201007
MELLOW WHITE,TRIM0#
main71910-53210-C0i200904-201007
BLACK,TRIM2#
main71910-53211-A1i201008-201107
MELLOW WHITE,TRIM0#
main71910-53211-C1i201008-201107
BLACK,TRIM2#
main71910-53440-A0i201108-201507
MELLOW WHITE,TRIM0#
main71910-53440-C0i201108-201507
BLACK,TRIM2#
main71910-53650-A0i201412-201507
MELLOW WHITE,TRIM0#,W(CCC MARK)
main71910-53650-C0i201412-201507
BLACK,TRIM2#,W(CCC MARK)
71931SUPPORT, FRONT SEAT HEADREST
main71930-52030-A4i201008-201507
W(LOCK)&W(BUTTON),MELLOW WHITE,TRIM0#
main71930-52030-A4i200904-201507
W(LOCK)&W(BUTTON),MELLOW WHITE,TRIM00,01,02,03,04,05,06,07
main71930-52030-C0i201008-201507
W(LOCK)&W(BUTTON),BLACK,TRIM2#,3#,4#
main71930-52030-C0i200904-201507
W(LOCK)&W(BUTTON),BLACK,TRIM04,05,08,2#,3#,4#
main71931-42020-A4i200904-201507
W(LOCK)&W/O(BUTTON),MELLOW WHITE,TRIM00,01,02,03,04,05,06,07
main71931-42020-A4i201008-201507
W(LOCK)&W/O(BUTTON),MELLOW WHITE,TRIM0#
main71931-42020-C0i200904-201507
W(LOCK)&W/O(BUTTON),BLACK,TRIM04,05,08,2#,3#,4#
main71931-42020-C0i201008-201507
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,3#,4#
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-53040-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-53040-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-53040-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-53060-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-53030-A0i200904-201507
MELLOW WHITE,TRIM0#
main72525-53030-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
72593KNOB, RECLINING REMOTE CONTROL LEVER
main72593-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main72593-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
72597ABEZEL, RECLINING REMOTE CONTROL LEVER, RH
main72597-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main72597-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-53030i200904
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-53020i200904
8202WIRING & CLAMP
→ Go to FIG 82-02
82666MHOLDER, CONNECTOR
main82666-21060i200904
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85821MOTOR ASSY, POWER SEAT
main85820-60170i200904
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-48020i201501-201507
main87501-60010i200904-201202
main87501-60060i201203-201412
9011910927
main90119-10927
9016740044
main90167-40044
9038910041
main90389-10041
9046818008
main90468-18008
9353054010
main93530-54010
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

39 parts on this diagram · 3 diagrams in section
