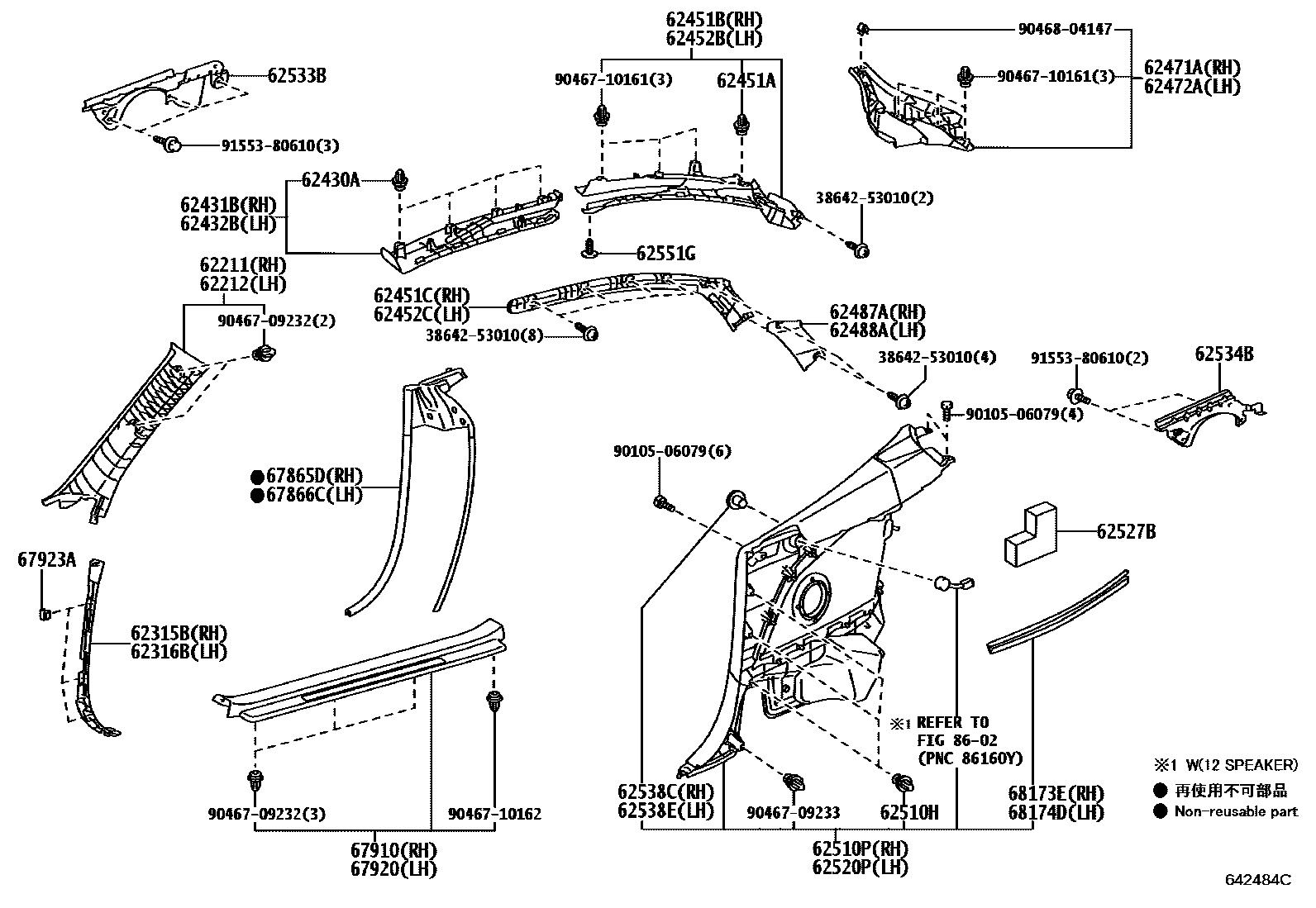

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62211GARNISH, FRONT PILLAR, RH

main62210-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62210-53011

main62210-53010-B0iGSE22..GCC200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62210-53011

main62210-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62210-53011

main62210-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62210-53011

main62210-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

sub62210-53012

main62210-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

sub62210-53012

main62210-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

sub62210-53012

main62210-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

sub62210-53012

62212GARNISH, FRONT PILLAR, LH

main62220-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62220-53011

main62220-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62220-53011

main62220-53010-B0iGSE20;GSE22..GEN200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62220-53011

main62220-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62220-53011

main62220-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

sub62220-53012

main62220-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

sub62220-53012

main62220-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

sub62220-53012

main62220-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

sub62220-53012

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-53020-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main62315-53020-C0iGSE22..GEN200904-201408

BLACK,TRIM2#

main62315-53020-C0iGSE2#..GCC200904-201507

BLACK,TRIM1#,2#,3#,4#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-53020-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main62316-53020-C0iGSE22..GEN200904-201408

BLACK,TRIM2#

main62316-53020-C0iGSE2#..GCC200904-201507

BLACK,TRIM1#,2#,3#,4#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-10161iGSE2#200904

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62431-53011

main62431-53010-B0iGSE22..GCC200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62431-53011

main62431-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62431-53011

main62431-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62431-53011

main62431-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62431-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62431-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62431-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62432-53011

main62432-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62432-53011

main62432-53010-B0iGSE20;GSE22..GEN200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62432-53011

main62432-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62432-53011

main62432-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62432-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62432-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62432-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62451ACLIP, SIDE GARNISH

main62217-13010iGSE2#200904

62451BGARNISH, ROOF SIDE RAIL, NO.3 RH

main62441-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62441-53011

main62441-53010-B0iGSE20;GSE22..GEN200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62441-53011

main62441-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62441-53011

main62441-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62441-53011

main62441-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62441-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62441-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62441-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62451-53011

main62451-53010-B0iGSE22..GCC200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62451-53011

main62451-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62451-53011

main62451-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62451-53011

main62451-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62451-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62451-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62451-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62452BGARNISH, ROOF SIDE RAIL, NO.3 LH

main62442-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62442-53011

main62442-53010-B0iGSE22..GCC200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62442-53011

main62442-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62442-53011

main62442-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62442-53011

main62442-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62442-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62442-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62442-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62452-53011

main62452-53010-B0iGSE22..GCC200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62452-53011

main62452-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62452-53011

main62452-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62452-53011

main62452-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62452-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62452-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62452-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62471AGARNISH, ROOF SIDE, INNER RH

main62471-53060-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62471-53061

main62471-53060-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62471-53061

main62471-53060-B0iGSE22..GCC200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62471-53061

main62471-53060-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62471-53061

main62471-53061-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62471-53061-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62471-53061-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62471-53061-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62472AGARNISH, ROOF SIDE, INNER LH

main62472-53060-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62472-53061

main62472-53060-B0iGSE20;GSE22..GEN200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62472-53061

main62472-53060-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62472-53061

main62472-53060-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62472-53061

main62472-53061-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62472-53061-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62472-53061-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62472-53061-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62487-53011

main62487-53010-B0iGSE20;GSE22..GEN200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62487-53011

main62487-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62487-53011

main62487-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62487-53011

main62487-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62487-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62487-53011-B0iGSE20;GSE22..GEN201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62487-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62488ACOVER, ROOF SIDE INNER GARNISH, LH

main62488-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

sub62488-53011

main62488-53010-B0iGSE20;GSE22..GEN200904-201306

LT.GRAY,TRIM1#,2#,3#,4#

sub62488-53011

main62488-53010-B0iGSE22..GCC201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub62488-53011

main62488-53010-C0iGSE22..GCC201208-201306

BLACK,TRIM23,39

sub62488-53011

main62488-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main62488-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main62488-53011-B0iGSE22..GCC201307-201507

LT.GRAY,TRIM1#,2#,3#,4#

main62488-53011-C0iGSE22..GCC201307-201507

BLACK,TRIM23,39

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-09206iGSE2#200904

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-53010-21iGSE2#201210-201507

BLACK/LT.GRAY,TRIM1#,2#

sub62510-53020

sub62510-53010

main62510-53010-22iGSE2#201210-201507

BLACK/SADDLE TAN,TRIM4#

sub62510-53020

sub62510-53010

main62510-53010-24iGSE22..GCC201308-201507

BLACK/DK.ROSE,TRIM39

sub62510-53020

sub62510-53010

main62510-53010-A1iGSE22200904-201008

MELLOW WHITE,TRIM0#

sub62510-53020

sub62510-53010

main62510-53010-A2iGSE2#201008-201210

MELLOW WHITE,TRIM0#

sub62510-53020

sub62510-53010

main62510-53010-A6iGSE2#201210-201507

MELLOW WHITE/MELLOW WHITE,TRIM0#

sub62510-53020

sub62510-53010

main62510-53010-C0iGSE22200904-201008

BLACK,TRIM1#,2#,4#

sub62510-53020

sub62510-53010

main62510-53010-C2iGSE2#201108-201210

BLACK/RED NO.55,TRIM3#

sub62510-53020

sub62510-53010

main62510-53010-C3iGSE2#201008-201210

BLACK/LT.GRAY NO.094,TRIM1#,2#

sub62510-53020

sub62510-53010

main62510-53010-C4iGSE2#201008-201210

BLACK/SADDLE TAN NO.044,TRIM4#

sub62510-53020

sub62510-53010

main62510-53010-C5iGSE2#201008-201108

BLACK/RED,TRIM3#

sub62510-53020

sub62510-53010

main62510-53010-C8iGSE22..GCC201308-201507

BLACK/RED/RED,TRIM36,37,38

sub62510-53020

sub62510-53010

main62510-53010-C8iGSE22..GCC201210-201507

BLACK/RED/RED,TRIM3#

sub62510-53020

sub62510-53010

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-53010-21iGSE2#201210-201507

BLACK/LT.GRAY,TRIM1#,2#

sub62520-53020

sub62520-53010

main62520-53010-22iGSE2#201210-201507

BLACK/SADDLE TAN,TRIM4#

sub62520-53020

sub62520-53010

main62520-53010-24iGSE22..GCC201308-201507

BLACK/DK.ROSE,TRIM39

sub62520-53020

sub62520-53010

main62520-53010-A1iGSE22200904-201008

MELLOW WHITE,TRIM0#

sub62520-53020

sub62520-53010

main62520-53010-A2iGSE2#201008-201210

MELLOW WHITE,TRIM0#

sub62520-53020

sub62520-53010

main62520-53010-A6iGSE2#201210-201507

MELLOW WHITE/MELLOW WHITE,TRIM0#

sub62520-53020

sub62520-53010

main62520-53010-C0iGSE22200904-201008

BLACK,TRIM1#,2#,4#

sub62520-53020

sub62520-53010

main62520-53010-C2iGSE2#201108-201210

BLACK/RED NO.55,TRIM3#

sub62520-53020

sub62520-53010

main62520-53010-C3iGSE2#201008-201210

BLACK/LT.GRAY NO.094,TRIM1#,2#

sub62520-53020

sub62520-53010

main62520-53010-C4iGSE2#201008-201210

BLACK/SADDLE TAN NO.044,TRIM4#

sub62520-53020

sub62520-53010

main62520-53010-C5iGSE2#201008-201108

BLACK/RED,TRIM3#

sub62520-53020

sub62520-53010

main62520-53010-C8iGSE22..GCC201308-201507

BLACK/RED/RED,TRIM36,37,38

sub62520-53020

sub62520-53010

main62520-53010-C8iGSE22..GCC201210-201507

BLACK/RED/RED,TRIM3#

sub62520-53020

sub62520-53010

62527BPAD, QUARTER TRIM

main62641-53010iGSE2#200904

62533BBRACKET, QUARTER TRIM, RH

main62533-53010iGSE2#200904

62534BBRACKET, QUARTER TRIM, LH

main62534-53010iGSE2#200904

62538CCOVER, QUARTER TRIM, HOLE

main63231-53010-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main63231-53010-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

62538ECOVER, QUARTER TRIM, HOLE

main63232-53010-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main63232-53010-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

62551GCLIP

main90467-05162-A3iGSE2#200904-201507

MELLOW WHITE,TRIM0#

sub90467-05162

main90467-05162-B2iGSE20;GSE22..GEN200904-201507

LT.GRAY,TRIM1#,2#,3#,4#

sub90467-05162

main90467-05162-B2iGSE22..GCC201208-201507

LT.GRAY,TRIM1#,20,21,22,3#,4#

sub90467-05162

main90467-05162-C0iGSE22..GCC201208-201507

BLACK,TRIM23,39

sub90467-05162

67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH

main67865-53010iGSE2#200904

67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH

main67866-53010iGSE2#200904

67910PLATE ASSY, DOOR SCUFF, RH

main67910-53090-A0iGSE22..GEN200904-201306

MELLOW WHITE,TRIM0#

sub67910-53091

main67910-53090-C0iGSE22..GEN200904-201306

BLACK,TRIM2#

sub67910-53091

main67910-53091-A0iGSE22..GEN201307-201408

MELLOW WHITE,TRIM0#

main67910-53091-C0iGSE22..GEN201307-201408

BLACK,TRIM2#

main67910-53100-A0iGSE22..GEN200904-201306

LUXURY PACKAGE,MELLOW WHITE,TRIM0#

sub67910-53101

main67910-53100-A0iGSE2#..GCC200904-201306

MELLOW WHITE,TRIM0#

sub67910-53101

main67910-53100-C0iGSE22..GEN200904-201306

BLACK,TRIM1#,2#,3#,4#

sub67910-53101

main67910-53100-C0iGSE22..GEN200904-201306

LUXURY PACKAGE,BLACK,TRIM1#,2#,3#,4#

sub67910-53101

main67910-53101-A0iGSE2#..GCC201307-201507

MELLOW WHITE,TRIM0#

main67910-53101-C0iGSE2#..GCC201307-201507

BLACK,TRIM1#,2#,3#,4#

67920PLATE ASSY, DOOR SCUFF, LH

main67920-53010-A0iGSE22..GEN200904-201306

MELLOW WHITE,TRIM0#

sub67920-53011

main67920-53010-C0iGSE22..GEN200904-201306

BLACK,TRIM2#

sub67920-53011

main67920-53011-A0iGSE22..GEN201307-201408

MELLOW WHITE,TRIM0#

main67920-53011-C0iGSE22..GEN201307-201408

BLACK,TRIM2#

main67920-53090-A0iGSE22..GEN200904-201306

MELLOW WHITE,TRIM0#

sub67920-53091

main67920-53090-A0iGSE22..GEN200904-201306

LUXURY PACKAGE,MELLOW WHITE,TRIM0#

sub67920-53091

main67920-53090-C0iGSE22..GEN200904-201306

LUXURY PACKAGE,BLACK,TRIM1#,2#,3#,4#

sub67920-53091

main67920-53090-C0iGSE2#..GCC200904-201306

BLACK,TRIM1#,2#,3#,4#

sub67920-53091

main67920-53091-A0iGSE2#..GCC201307-201507

MELLOW WHITE,TRIM0#

main67920-53091-C0iGSE2#..GCC201307-201507

BLACK,TRIM1#,2#,3#,4#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main62566-53010iGSE2#200904

68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH

main68173-53030iGSE2#200904-201507

68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH

main68174-53030iGSE2#200904-201507

8602

3864253010SCREW (FOR WINCH CONTROL SWITCH)

main38642-53010

9010506079

main90105-06079

9046709232

main90467-09232

9046709233

main90467-09233

9046710161

main90467-10161

9046710162

main90467-10162

9046804147

main90468-04147

9155380610

main91553-80610

41 parts on this diagram · 1 diagram in section
