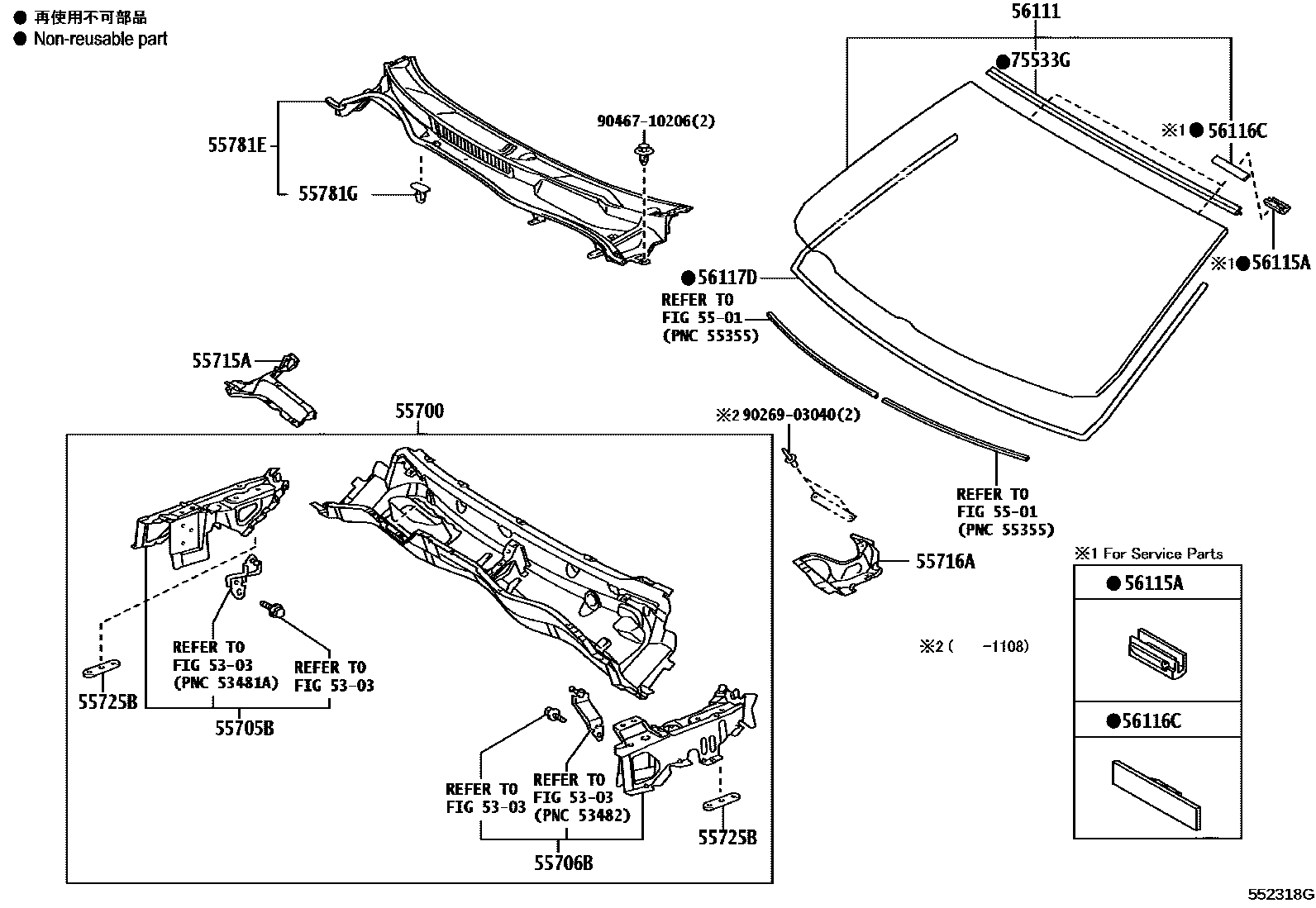

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55700PANEL ASSY, FRONT

main55700-53904iGSE2#..GCC200904-201108

main55700-53905iGSE22..GEN200904-201108

main55700-53906iGSE2#..GCC201108

main55700-53907iGSE22..GEN201108-201408

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53010iGSE2#200904-201507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53010iGSE2#200904

55715ABRACE, COWL TOP TO APRON, RH

main55715-53030iGSE22..GEN200904-201408

main55715-53040iGSE2#..GCC200904

55716ABRACE, COWL TOP TO APRON, LH

main55716-53030iGSE22..GEN200904-201408

main55716-53040iGSE2#..GCC200904

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iGSE2#200904

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53050iGSE22..GEN200904-200908

main55708-53051iGSE22..GEN200909-201408

main55708-53060iGSE22..GCC200904-200908

main55708-53061iGSE2#..GCC200909

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×7iGSE2#200904

56111GLASS, WINDSHIELD

main56101-53250iGSE2#..GCC200904

*LAM,T=4.76,GREEN

main56101-53310supersedes 56101-53300iGSE22..GEN200904-201408

*LAM,T=4.76,GREEN,LUXURY PACKAGE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2iGSE2#200904

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iGSE2#200904

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010iGSE2#200904

L=2665

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53040iGSE2#200904

9026903040

main90269-03040

9046710206

main90467-10206

17 parts on this diagram · 2 diagrams in section
