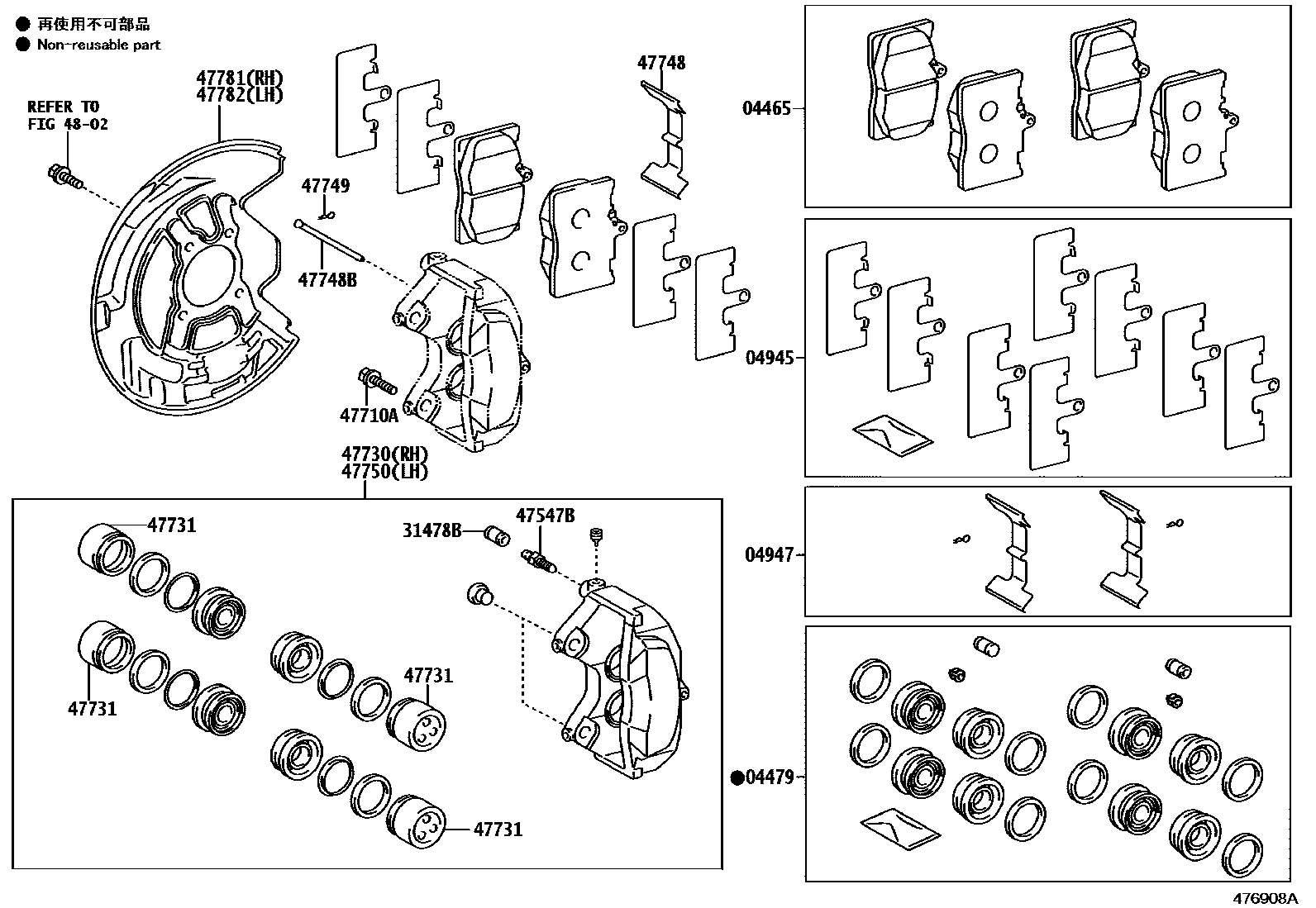

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1PHILIPPINE,CHINA,ARGENTINE SP0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30410iGSE22..GCC200904-201212

MARK TEXTAR T4146

sub04465-30500

main04465-30500iGSE22..GCC201212-201507

MARK TEXTAR T4146

main04465-53040iGSE20;GSE22..GEN200904-201507

MARK TEXTAR T4146,PHILIPPINE SPEC

main04465-53040iGSE22..GCC200904-201507

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGSE22..GCC200904

main04478-30250iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22152iGSE22..GCC200904-201212

sub04945-30350

main04945-30350iGSE22..GCC201212

main04945-53050iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSE22..GCC200904

main04947-53020iGSE22..GCC200904

PHILIPPINE SPEC

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGSE22..GCC200904

main31478-30010iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

main47547-50010iGSE22..GCC200904

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iGSE2#201111-201507

*12-1.25PX45-30

main91552-K1240iGSE2#200904-201111

*12-1.25PX40-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGSE22..GCC200904

main47730-53060iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

47731PISTON, FRONT DISC BRAKE

main47731-50070iGSE22..GCC200904

main47731-53060iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

sub47731-12A10

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iGSE22..GCC200904

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iGSE22..GCC200904

47749CLIP, PIN HOLD

main47749-50030iGSE22..GCC200904

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGSE22..GCC200904

main47750-53060iGSE20;GSE22..GEN200904

PHILIPPINE SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iGSE22..GCC200904-201507

main47781-30220iGSE20;GSE22..GEN200904-201507

PHILIPPINE SPEC

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iGSE22..GCC200904-201507

main47782-30220iGSE20;GSE22..GEN200904-201507

PHILIPPINE SPEC

4802

16 parts on this diagram · 3 diagrams in section
