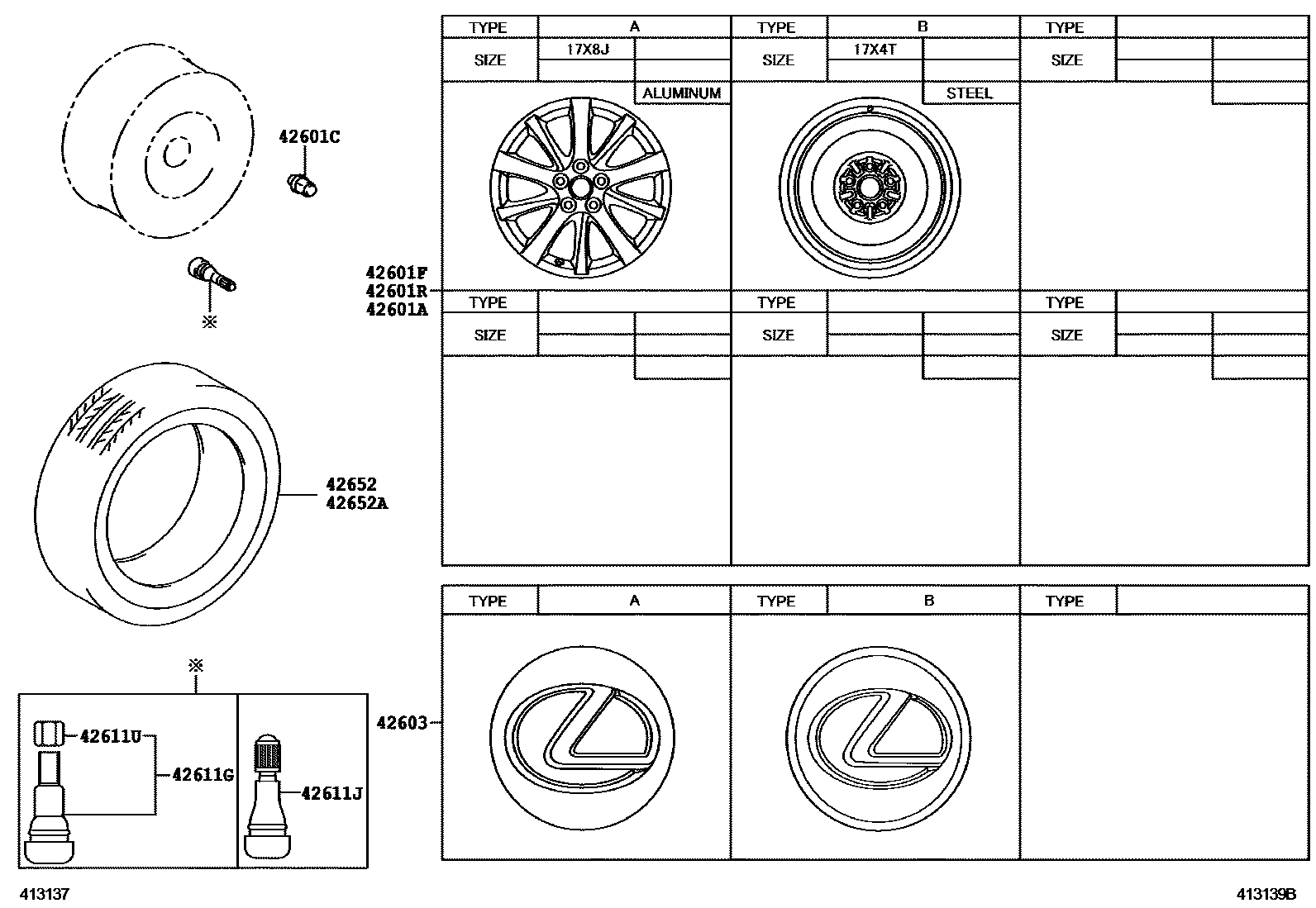

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iGSE22200904-200907

17X4T,TYPE B:REFER ILLUST.

main42611-53320iGSE2#200908

17X4T,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGSE2#200904-201507

42601FWHEEL, DISC (FOR FRONT)

main4261A-53090×2iGSE2#200904-201507

17X8J, #,TYPE A:REFER ILLUST.

main4261A-53100×2iGSE20201008-201507

17X8J, #,CHINA SPEC,TYPE A:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main4261A-53090×2iGSE2#200904-201507

17X8J, #,TYPE A:REFER ILLUST.

main4261A-53100×2iGSE20201008-201507

17X8J, #,CHINA SPEC,TYPE A:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30550×4iGSE2#201208

*CHR,TYPE B:REFER ILLUST.

main42603-50320×4iGSE2#200904-201208

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4iGSE2#200904

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGSE2#200904

42611UCAP, TIRE VALVE

main90942-05029×4iGSE2#200904

42652TIRE

main42652-53410×2iGSE22..GEN200904-201408

225/45R17 *B/S

main42652-53420×2iGSE22..GCC200904-201004

225/45R17 *B/S

main42652-53421×2iGSE22..GCC201005-201507

225/45R17 *B/S

main42652-53430×2iGSE22..GEN200904-201408

245/45R17 *B/S

main42652-53440×2iGSE22..GCC200904-201004

245/45R17 *B/S

main42652-53441×2iGSE22..GCC201005-201507

245/45R17 *B/S

main42652-53620×2iGSE20201008-201507

225/45R17 *B/S

main42652-53630×2iGSE20201008-201507

245/45R17 *B/S

42652ATIRE (FOR SPARE)

main4265A-53010iGSE2#200904-201408

T125/70D17 *Y/H

main4265A-53011iGSE2#201409

T125/70D17 *Y/H

10 parts on this diagram · 2 diagrams in section
